Transmitter Editing - Automatic Technology Axess Pro Series Installation Instructions Manual

Transmitter Editing

MENU 1
Code Transmitter
fi g
26
14 I
OSC PED LGT VAC
fi g 27
14 I 4
OSC PED LGT VAC
fi g
28
PR E S S
A B SMITH
D
D
PRESS
PRESS
A B SMITH
D
PRESS
Display Transmitter Record
Using one of the methods below, you can display the
required transmitters details.

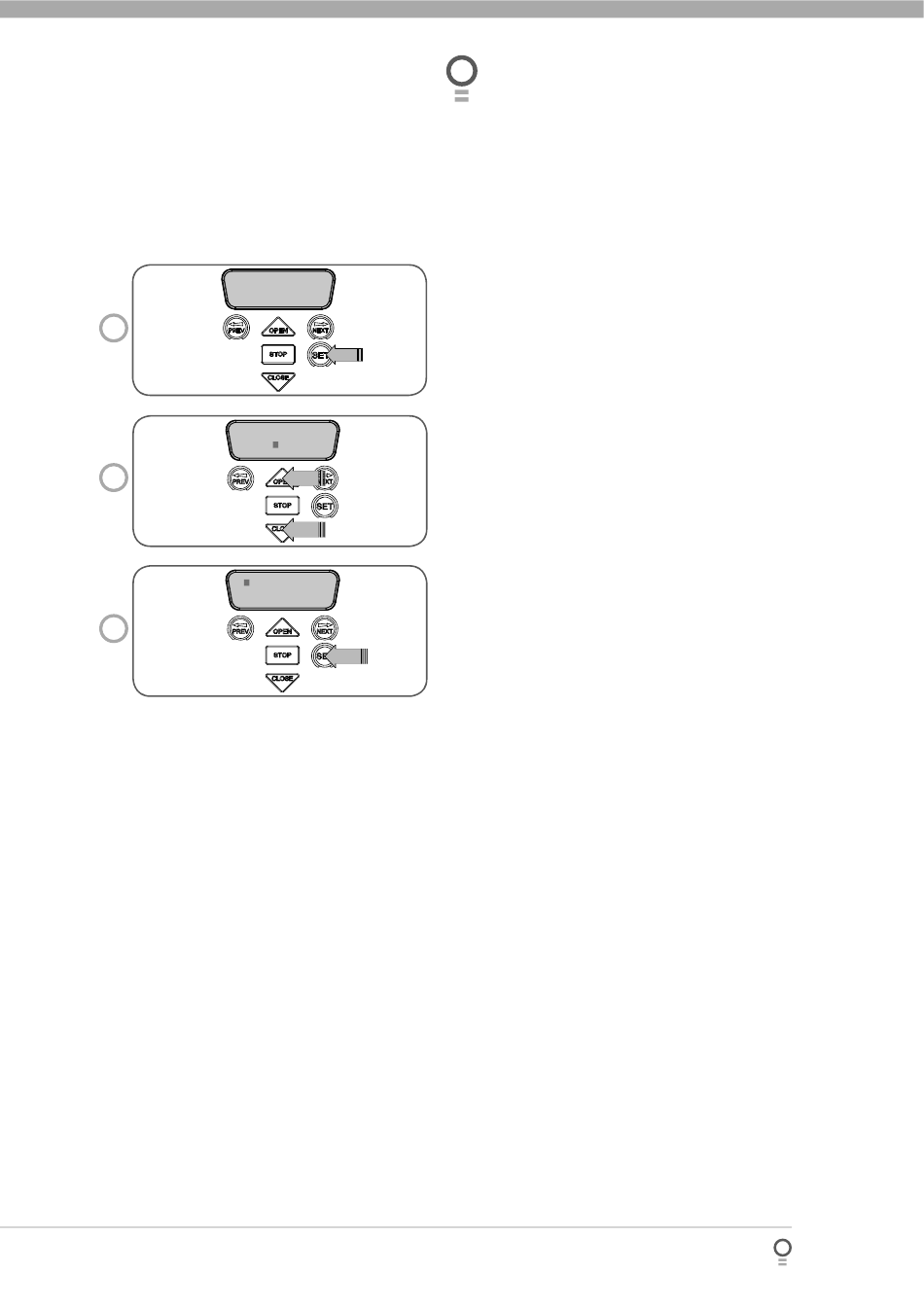

Navigating To "Edit Transmitter" Menu
1. Press NEXT to navigate to Menu 1
2. Press SET to enter the transmitter edit procedure.
3. Press NEXT to enter transmitter list and edit mode.
Editing Button Function Field
1. Press NEXT or PREV to move the cursor to the left
or right and between the top and bottom lines to
select the desired fi eld.
2. Press OPEN or CLOSE to change the displayed value
(Fig. 27). The available functions are shown below.
Selecting OFF will prevent the opener responding to
that button.
Available functions
OSC (Open/Stop/Close)
PED (Pedestrian access)
SWP (Swipe)
CLS (Close)
OPN (Open)
STP (Stop)
LGT (Courtesy Light)
VAC (Vacation Mode)
AUX (Auxiliary )
OFF (No action)
NOTE: OSC will change to OS and CLS (Close) function
is not available in the case where PE Beams are not
installed.
3. Press SET to save changes or press NEXT or PREV to
move to the next fi eld.
• The example in (Fig. 28)
assigned to the transmitter button two.
• The transmitter in the example is transmitter
number 14 which has the ID label AB Smith.
NOTE: If all button functions are set to OFF, when SET
is pressed, the opener will prompt to confi rm if the
transmitter is to be deleted. Press SET to delete or STOP
to continue editing.
Owner Installation Instructions Axess® Pro Series 3100
(Fig. 26) .
shows that PED is
19
