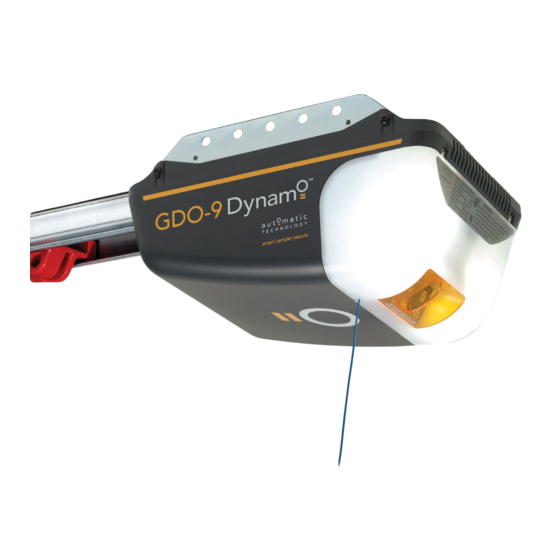

- Page 1 GDO-9 Dynamo Gen 2 ™ Overhead Garage Door Opener Home Owner’s Manual Featuring TrioCode Technology ™ Doc #: 160016_00 Part #: 13305 06/05/2013...
-
Page 2: Table Of Contents
GDO-9 Dynamo GEN2 Home Owner’s Manual Table of Contents 1. Safety Rules 2. Features 3. Specifications 4. Operating your door 5. User Operating Controls 6. Opener Safety & Security 6.1 Manual Door Operation 6.2 Emergency Evacuations 6.3 Power Failure 6.4 Re-Engaging the Opener 6.5 Security - Inbuilt Locking Facility 7. -
Page 3: Safety Rules
Call for a professional garage door service. Automatic Technology (Australia) Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of a Automatic Technology (Australia) Pty Ltd Garage Door Opener. Automatic Technolofy (Australia) Pty Ltd hereby further expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any person as a result whether directly or indirectly from failure to install the Automatic Technology ( Australia) Pty Ltd Garage Door Opener in accordance with the installation instructions. -
Page 4: Features
3000 cycles. When components of the opener when installed by an this counter expires, the service yellow LED will Automatic Technology Dealer. light up and at the start of each door movement the beeper will sound three times. Contact your TrioCode Frequency Hopping Technology dealer/installer for service. -
Page 5: Specifications
GDO-9 Dynamo GEN2 Home Owner’s Manual 3. Specifications Technical Specifications Power supply 230V - 240Va.c. 50Hz Maximum door opening: Width: 5500mm (16.5m Height: 3000mm Weight: 100kg Minimum headroom 25mm Short Term Peak Force 800N (80kg) Rated force 500N (50kg) with Chain 450N (45kg) with Timing Belt Nominal force 150N (15kg) -
Page 6: Operating Your Door
GDO-9 Dynamo GEN2 Home Owner’s Manual 4. Operating your door For maximum efficiency of your opener, your garage door must be in good operating condition. An annual service of your garage door by an Approved Dealer is recommended. CAUTION: Activate the opener only when the door is in full view, free of obstructions and with the opener properly adjusted. -
Page 7: User Operating Controls
GDO-9 Dynamo GEN2 Home Owner’s Manual 5. User Operating Controls Button (Fig 5.1) Function 1. OPERATE Opens/stops/closes the door 2. CODING LED (Red) Flashes when a code is being stored or when the transmitter button is pressed 3. LIGHT CODE (White) Is used for storing or erasing the transmitter button (code) you wish to use to switch the courtesy light on the opener on or off. -
Page 8: Opener Safety & Security
GDO-9 Dynamo GEN2 Home Owner’s Manual 6. Opener Safety & Security 6.1 Manual Door Operation WARNING! When operating the To disengage the opener from the door (preferably manual release (while the door is with the door in the closed position), pull down open) the door may fall rapidly due on the string handle on an angle towards the door to weak or broken springs, or due to... -
Page 9: Safety Testing
GDO-9 Dynamo GEN2 Home Owner’s Manual 7. Safety Testing 7.1 Test the Close Cycle CAUTION: Take care when (Fig 7.1) a. Press the transmitter to open the door. completing a safety test. Failure b. Place a piece of timber approximately 40mm high on to follow this warning can result (Fig 7.2). -
Page 10: Coding Transmitters
GDO-9 Dynamo GEN2 Home Owner’s Manual 8. Coding Transmitters 8.1 Storing the Transmitter Code ELECTROCUTION! The button The opener can only operate from transmitters that cover is the only cover that should have been programmed into its receiver. The receiver be removed. -
Page 11: Setting The Transmitter To Operate Vacation Mode
GDO-9 Dynamo GEN2 Home Owner’s Manual 8. Coding Transmitters 8.3 Setting the Transmitter to Operate Vacation Mode The opener can be programmed into a “Vacation Mode” where the opener will not respond to any transmitter except one preprogrammed unit. a. Briefly press the DOOR CODE button once, then Press DOOR press it again and hold (will beep two times on CODE button... -
Page 12: Troubleshooting Guide
GDO-9 Dynamo GEN2 Home Owner’s Manual 9. Troubleshooting Guide Symptom Possible cause Remedy The opener does Garage door in poor condition e.g. Check the door’s operation - see not work from the springs may be broken monthly maintenance (Section 10.1) transmitter The opener does not have power Plug a device of similar voltage... -
Page 13: Troubleshooting
GDO-9 Dynamo GEN2 Home Owner’s Manual 9. Troubleshooting Guide Symptom Possible cause Remedy Courtesy Light flashes The opener has reached See (Section 10.5) Contact your and the opener beeps the number of cycles dealer and arrange a door service. 5 times after each recommended before servicing. -
Page 14: Maintenance
GDO-9 Dynamo GEN2 Home Owner’s Manual 10. Door Maintenance 10.1 Door Maintenance WARNING! Failure to maintain your Whilst your opener does not require any periodic garage door may void the warranty maintenance, the door that it is fitted to, does. Your on your garage door opener. -
Page 15: Opener Maintenance
GDO-9 Dynamo GEN2 Home Owner’s Manual 10. Opener Maintenance 10.4 Opener Maintenance To ensure a long and trouble free life for your opener the following is recommended: • Monthy: Run the Safety Testing procedures in Section 7 to ensure garage door is fit for use. NOTE: If the door does not operate smoothly, call your nearest Approved Dealer. -
Page 16: Warranty
Address:_____________________________________Installed by:__________________________________ Installed on (date):____________________________Invoice No:__________________________________ This Warranty is given by Automatic Technology (Australia) Pty Ltd (ABN 11 007 125 368) (ATA), 6-8 Fiveways Boulevard, Keysborough, VIC, 3173, 1300 133 944, sales@automatictechnology.com.au 2. The Competition and Consumer Act 2010 (including the Australian Consumer Law) and other relevant statutes provide a set of statutory consumer guarantees and other legal rights that cannot be excluded, restricted or modified by contract. - Page 17 GDO-9 Dynamo GEN2 Home Owner’s Manual 11. Warranty 10. This Warranty excludes damage resulting from: (a) normal wear and tear; (b) accidental damage; (c) incorrect installation of the Product; (d) blown fuses, electrical surges, power surges or power spikes; (e) theft, fire, flood, rain, water, lightning, storms or any other acts of God; (f) any installation, configuration or use of the Product contrary to the instructions supplied with the Product;...
-
Page 18: Optional Accessories
GDO-9 Dynamo GEN2 Home Owner’s Manual 12. Optional Accessories There are a range of additional accessories for your added convenience and security. Contact your dealer for installation of these accessory items. Safety Beams • - Provides additional protection if the door is closing onto your property or person. -
Page 19: Service Schedule
GDO-9 Dynamo GEN2 Home Owner’s Manual 13. Service Schedule Year / Date Details Approx. Cycles 1 / 3,000 2 / 6,000 3 / 9,000 4 / 12,000 5 / 15,000 Automatic Technology (Australia) Pty Ltd Phone: 1300 133 944 Website: www.automatictechnology.com.au... - Page 20 Is your opener beeping and flashing? It may be time for a service (for more details see section 10.5) For a service contact your dealer using the details below... Dealer:...
