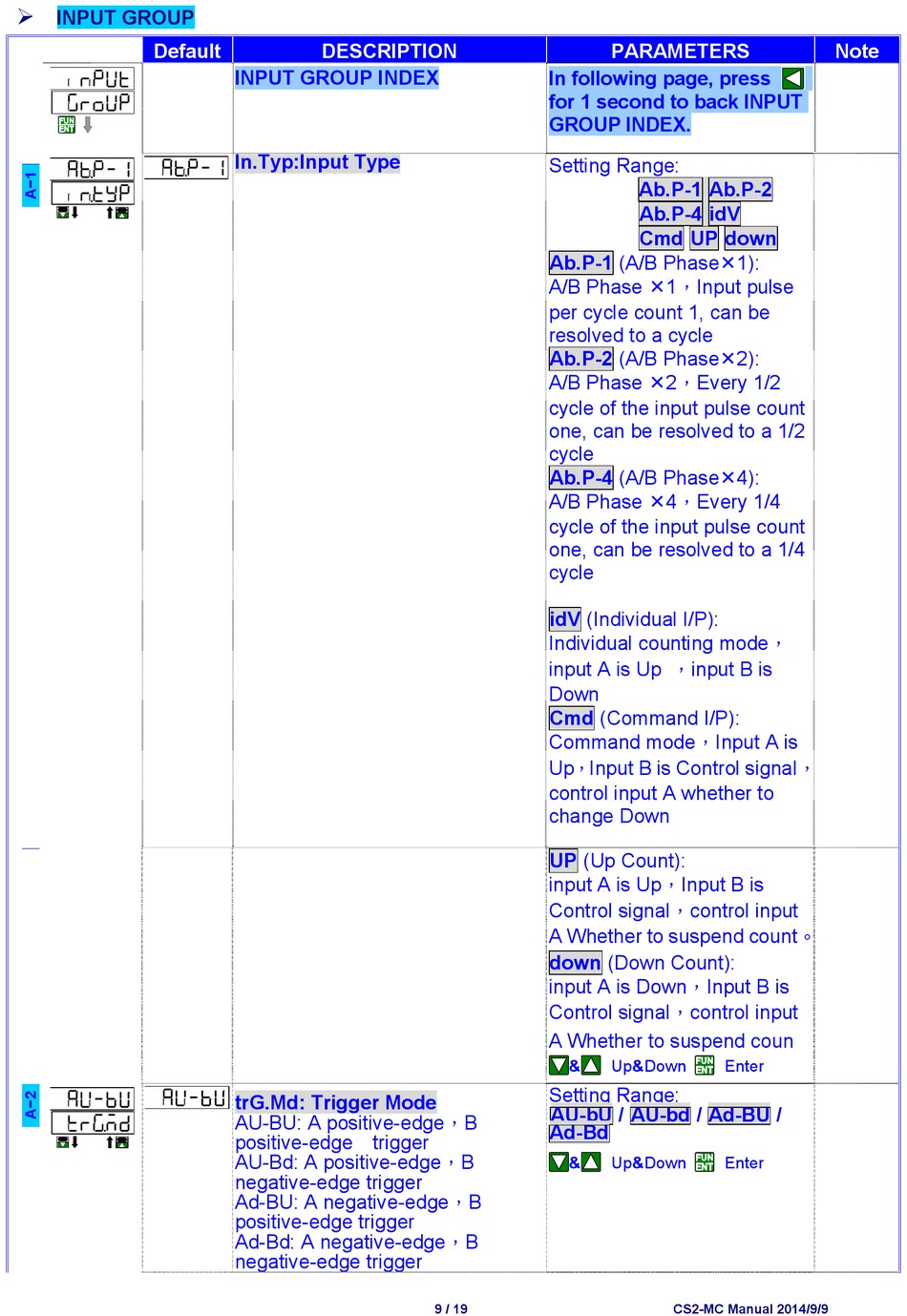

INPUT GROUP

Default DESCRIPTION
INPUT GROUP INDEX
In.Typ:Input Type
trG.Md: Trigger Mode
AU-BU: A positive-edge，B
positive-edge trigger
AU-Bd: A positive-edge，B
negative-edge trigger
Ad-BU: A negative-edge，B
positive-edge trigger
Ad-Bd: A negative-edge，B
negative-edge trigger
In following page, press
for 1 second to back INPUT
GROUP INDEX.
Setting Range:
Ab.P-1 (A/B Phase1):
A/B Phase 1，Input pulse
per cycle count 1, can be
resolved to a cycle
Ab.P-2 (A/B Phase2):
A/B Phase 2，Every 1/2
cycle of the input pulse count
one, can be resolved to a 1/2
cycle
Ab.P-4 (A/B Phase4):
A/B Phase 4，Every 1/4
cycle of the input pulse count
one, can be resolved to a 1/4
cycle
idV (Individual I/P):
Individual counting mode，
input A is Up ，input B is
Down
Cmd (Command I/P):
Command mode，Input A is
Up，Input B is Control signal，
control input A whether to
change Down
UP (Up Count):
input A is Up，Input B is
Control signal，control input
A Whether to suspend count。
down (Down Count):
input A is Down，Input B is
Control signal，control input
A Whether to suspend coun
&
Setting Range:
AU-bU / AU-bd / Ad-BU /
Ad-Bd
&
9 / 19
PARAMETERS
Ab.P-1 Ab.P-2
Ab.P-4 idV
Cmd UP down
Up&Down Enter
Up&Down Enter
