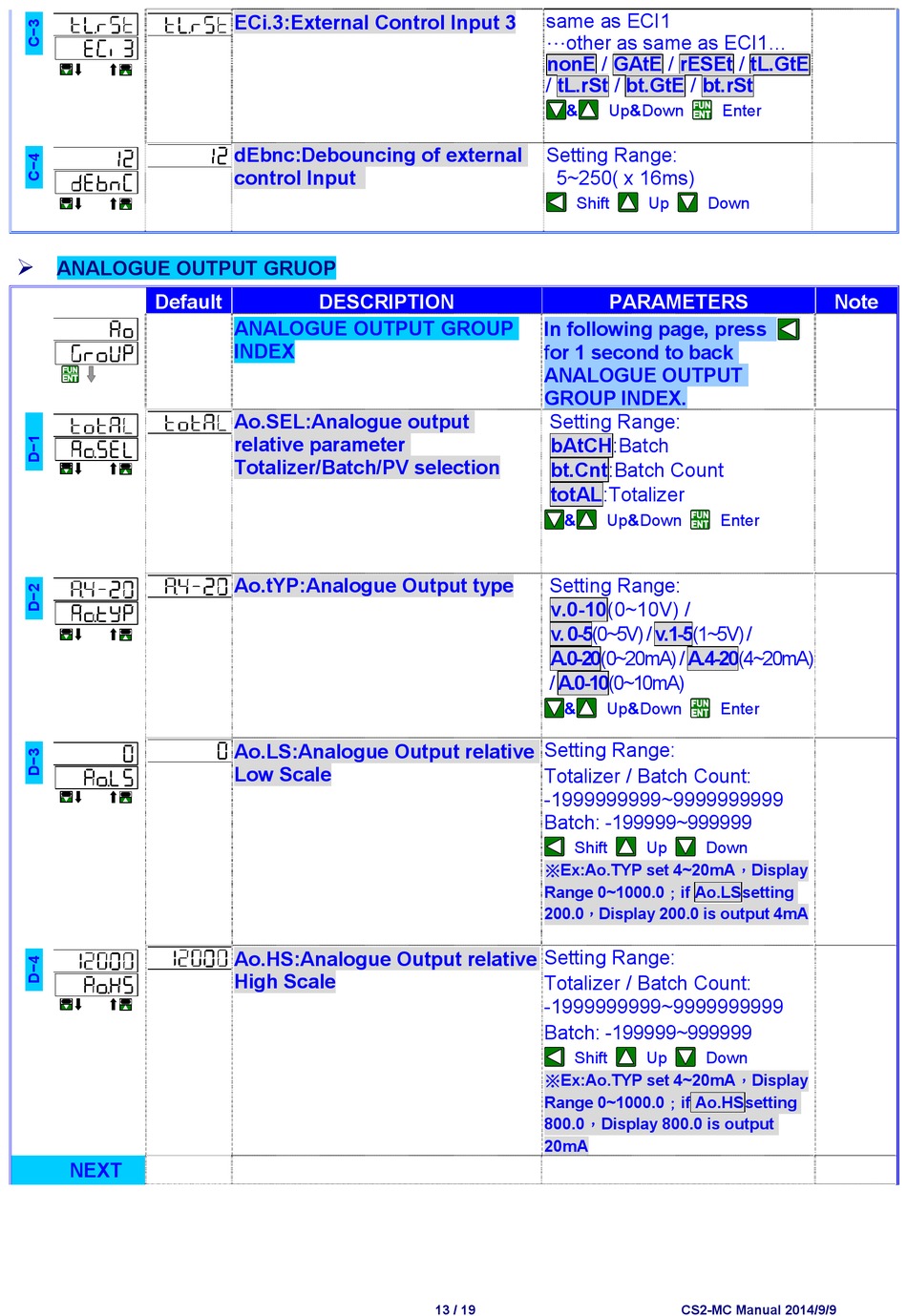

ADTEK CS2-MC Manual page 13


ANALOGUE OUTPUT GRUOP
Default
NEXT
ECi.3:External Control Input 3
dEbnc:Debouncing of external
control Input
DESCRIPTION
ANALOGUE OUTPUT GROUP
INDEX
Ao.SEL:Analogue output
relative parameter
Totalizer/Batch/PV selection
Ao.tYP:Analogue Output type
Ao.LS:Analogue Output relative
Low Scale
Ao.HS:Analogue Output relative
High Scale
same as ECI1
...other as same as ECI1...
nonE / GAtE / rESEt / tL.GtE
/ tL.rSt / bt.GtE / bt.rSt
&
Setting Range:
5~250( x 16ms)
Shift
In following page, press
for 1 second to back
ANALOGUE OUTPUT
GROUP INDEX.
Setting Range:
bAtCH:Batch
bt.Cnt:Batch Count
totAL:Totalizer
&
Setting Range:
v.0-10(0~10V) /
v. 0-5(0~5V) / v.1-5(1~5V) /
A.0-20(0~20mA) / A.4-20(4~20mA)
/ A.0-10(0~10mA)
&
Setting Range:
Totalizer / Batch Count:
-1999999999~9999999999
Batch: -199999~999999
Shift
※Ex:Ao.TYP set 4~20mA，Display
Range 0~1000.0；if Ao.LSsetting
200.0，Display 200.0 is output 4mA
Setting Range:
Totalizer / Batch Count:
-1999999999~9999999999
Batch: -199999~999999
Shift
※Ex:Ao.TYP set 4~20mA，Display
Range 0~1000.0；if Ao.HSsetting
800.0，Display 800.0 is output
20mA
13 / 19
Up&Down Enter
Up Down
PARAMETERS
Up&Down Enter
Up&Down Enter
Up Down
Up Down
CS2-MC Manual 2014/9/9
