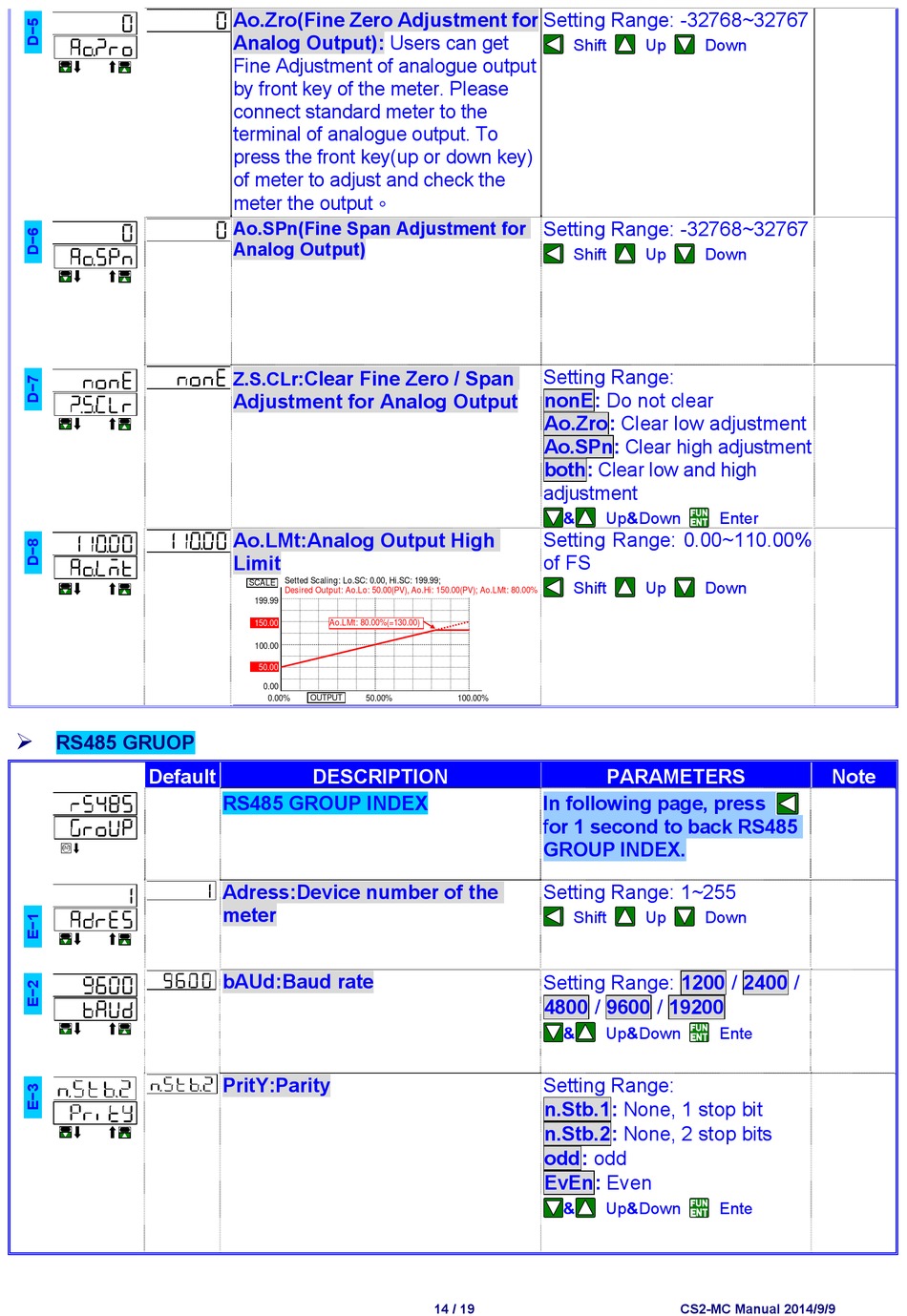

ADTEK CS2-MC Manual page 14


RS485 GRUOP
Default
ENT
Ao.Zro(Fine Zero Adjustment for
Analog Output): Users can get
Fine Adjustment of analogue output
by front key of the meter. Please
connect standard meter to the
terminal of analogue output. To
press the front key(up or down key)
of meter to adjust and check the
meter the output。
Ao.SPn(Fine Span Adjustment for
Analog Output)
Clear Fine Zero / Span
Z.S.CLr:
Adjustment for Analog Output
Ao.LMt:Analog Output High
Limit
Setted Scaling: Lo.SC: 0.00, Hi.SC: 199.99;
SCALE
Desired Output: Ao.Lo: 50.00(PV), Ao.Hi: 150.00(PV); Ao.LMt: 80.00%
199.99
150.00 Ao.LMt: 80.00%(=130.00)
100.00
50.00
0.00
OUTPUT
0.00% 50.00%
DESCRIPTION
RS485 GROUP INDEX
Adress:Device number of the
meter
bAUd:Baud rate
PritY:Parity
Setting Range: -32768~32767
Shift
Setting Range: -32768~32767
Shift
Setting Range:
nonE: Do not clear
Ao.Zro: Clear low adjustment
Ao.SPn: Clear high adjustment
both: Clear low and high
adjustment
&
Setting Range: 0.00~110.00%
of FS
Shift
100.00%
In following page, press
for 1 second to back RS485
GROUP INDEX.
Setting Range: 1~255
Shift
Setting Range: 1200 / 2400 /
4800 / 9600 / 19200
&
Setting Range:
n.Stb.1: None, 1 stop bit
n.Stb.2: None, 2 stop bits
odd: odd
EvEn: Even
&
14 / 19
Up Down
Up Down
Up&Down Enter
Up Down
PARAMETERS
Up Down
Up&Down Ente
Up&Down Ente
CS2-MC Manual 2014/9/9
Note
