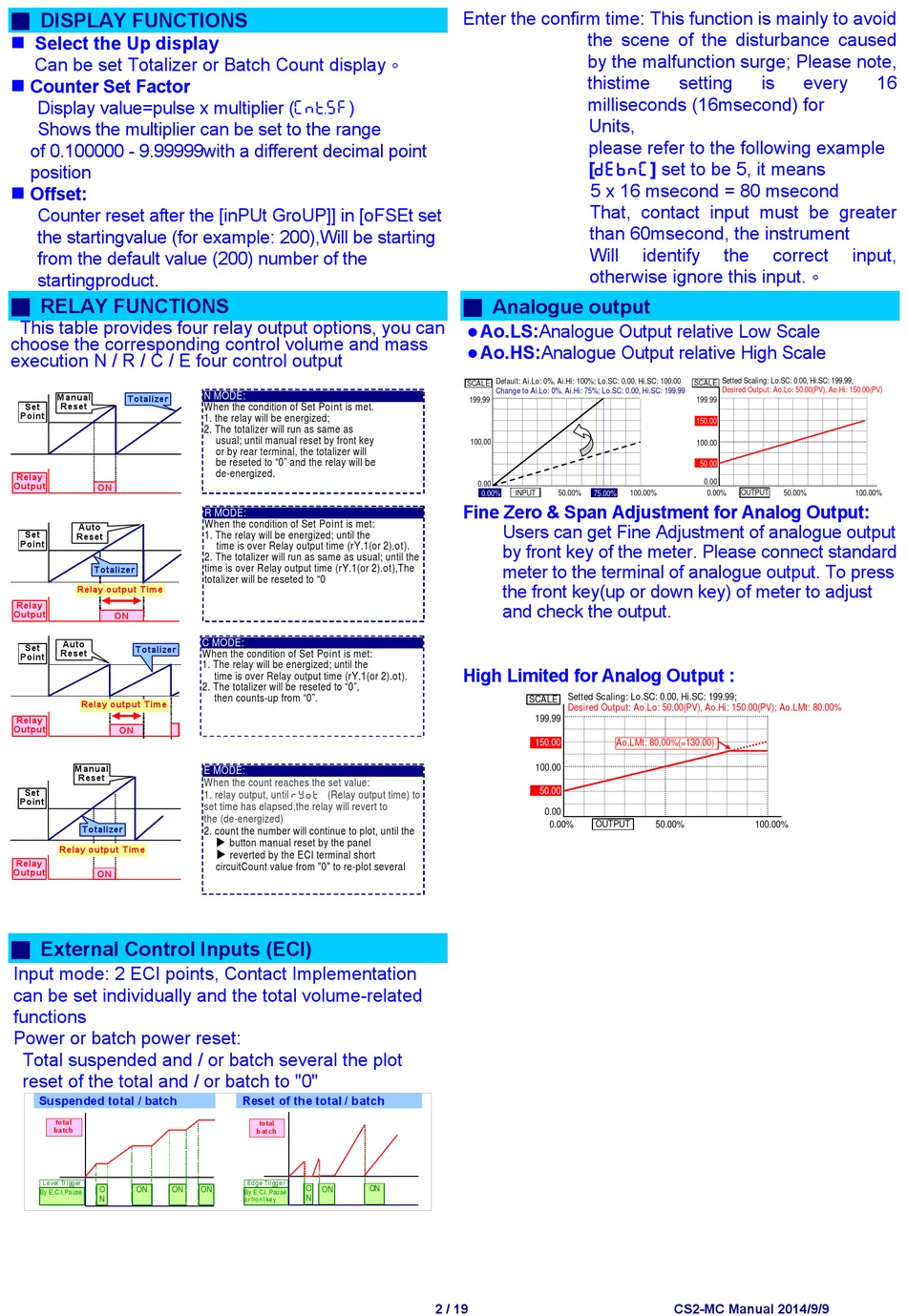

ADTEK CS2-MC Manual page 2

■ DISPLAY FUNCTIONS

Select the Up display
Can be set Totalizer or Batch Count display。

Counter Set Factor
Display value=pulse x multiplier (cnTsf)
Shows the multiplier can be set to the range
of 0.100000 - 9.99999with a different decimal point
position

Offset:
Counter reset after the [inPUt GroUP]] in [oFSEt set
the startingvalue (for example: 200),Will be starting
from the default value (200) number of the
startingproduct.
■ RELAY FUNCTIONS
This table provides four relay output options, you can
choose the corresponding control volume and mass
execution N / R / C / E four control output
Manual
Totalizer
Set Reset
Point
Relay
Output
ON
Auto
Set
Reset
Point
Totalizer
Relay output Time
Relay
Output
ON
Auto
Set
Totalizer
Reset
Point
Relay output Time
Relay
Output
ON
Manual
Reset
Set
Point
Totalizer
Relay output Time
Relay
Output
ON
■ External Control Inputs (ECI)
Input mode: 2 ECI points, Contact Implementation
can be set individually and the total volume-related
functions
Power or batch power reset:
Total suspended and / or batch several the plot
reset of the total and / or batch to "0"
Suspended total / batch
to ta l
ba tch
Le vel Trigger
O ON ON
By E.C.I. Pa use
N
N MODE:
When the condition of Set Point is met.
1. the relay will be energized;
2. The totalizer will run as same as
usual; until manual reset by front key
or by rear terminal, the totalizer will
be reseted to "0" and the relay will be
de-energized.
R MODE:
When the condition of Set Point is met:
1. The relay will be energized; until the
time is over Relay output time (rY.1(or 2).ot).
2. The totalizer will run as same as usual; until the
time is over Relay output time (rY.1(or 2).ot),The
totalizer will be reseted to "0
C MODE:
When the condition of Set Point is met:
1. The relay will be energized; until the
time is over Relay output time (rY.1(or 2).ot).
2. The totalizer will be reseted to "0",
then counts-up from "0".
E MODE:
When the count reaches the set value:
1. relay output, until rYot (Relay output time) to
set time has elapsed,the relay will revert to
the (de-energized)
2. count the number will continue to plot, until the
 button manual reset by the panel
 reverted by the ECI terminal short
circuitCount value from "0" to re-plot several
Reset of the total / batch
to tal
b atch
Edge Trigge r
O ON
ON ON
By E.C.I. Pause
N
or front ke y
Enter the confirm time: This function is mainly to avoid
the scene of the disturbance caused
by the malfunction surge; Please note,
thistime
milliseconds (16msecond) for
Units,
please refer to the following example
[debnc] set to be 5, it means
5 x 16 msecond = 80 msecond
That, contact input must be greater
than 60msecond, the instrument
Will
otherwise ignore this input.。
■ Analogue output
Ao.LS:Analogue Output relative Low Scale

Ao.HS:Analogue Output relative High Scale

SCALE Default: Ai.Lo: 0%, Ai.Hi: 100%; Lo.SC: 0.00, Hi.SC: 100.00
Change to Ai.Lo: 0%, Ai.Hi: 75%; Lo.SC: 0.00, Hi.SC: 199.99
199.99
100.00
0.00
INPUT 50.00%
0.00% 75.00%
Fine Zero & Span Adjustment for Analog Output:
Users can get Fine Adjustment of analogue output
by front key of the meter. Please connect standard
meter to the terminal of analogue output. To press
the front key(up or down key) of meter to adjust
and check the output.
High Limited for Analog Output :
Setted Scaling: Lo.SC: 0.00, Hi.SC: 199.99;
SCALE
Desired Output: Ao.Lo: 50.00(PV), Ao.Hi: 150.00(PV); Ao.LMt: 80.00%
199.99
150.00
100.00
50.00
0.00
0.00% OUTPUT
2 / 19
setting is
identify the correct
Setted Scaling: Lo.SC: 0.00, Hi.SC: 199.99;
SCALE
Desired Output: Ao.Lo: 50.00(PV), Ao.Hi: 150.00(PV)
199.99
150.00
100.00
50.00
0.00
100.00% 0.00% OUTPUT 50.00%
Ao.LMt: 80.00%(=130.00)
50.00% 100.00%
CS2-MC Manual 2014/9/9
