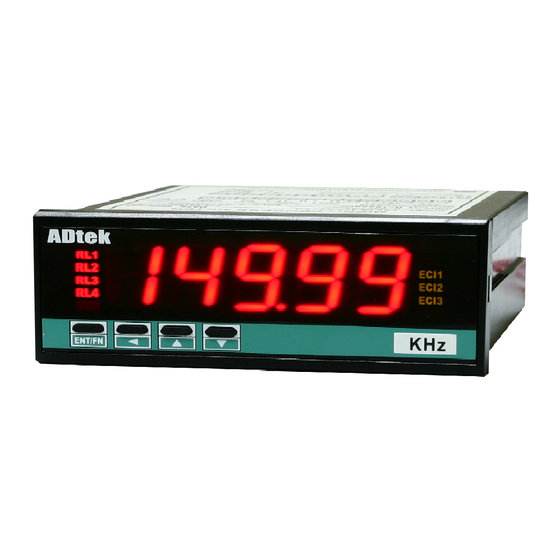

ADTEK CS1-RL Operation Manual

Linearly line speed / rpm indicator, frequency indicator
Hide thumbs

Advertisement

Quick Links

Download this manual
CS1-RL
CS1-F

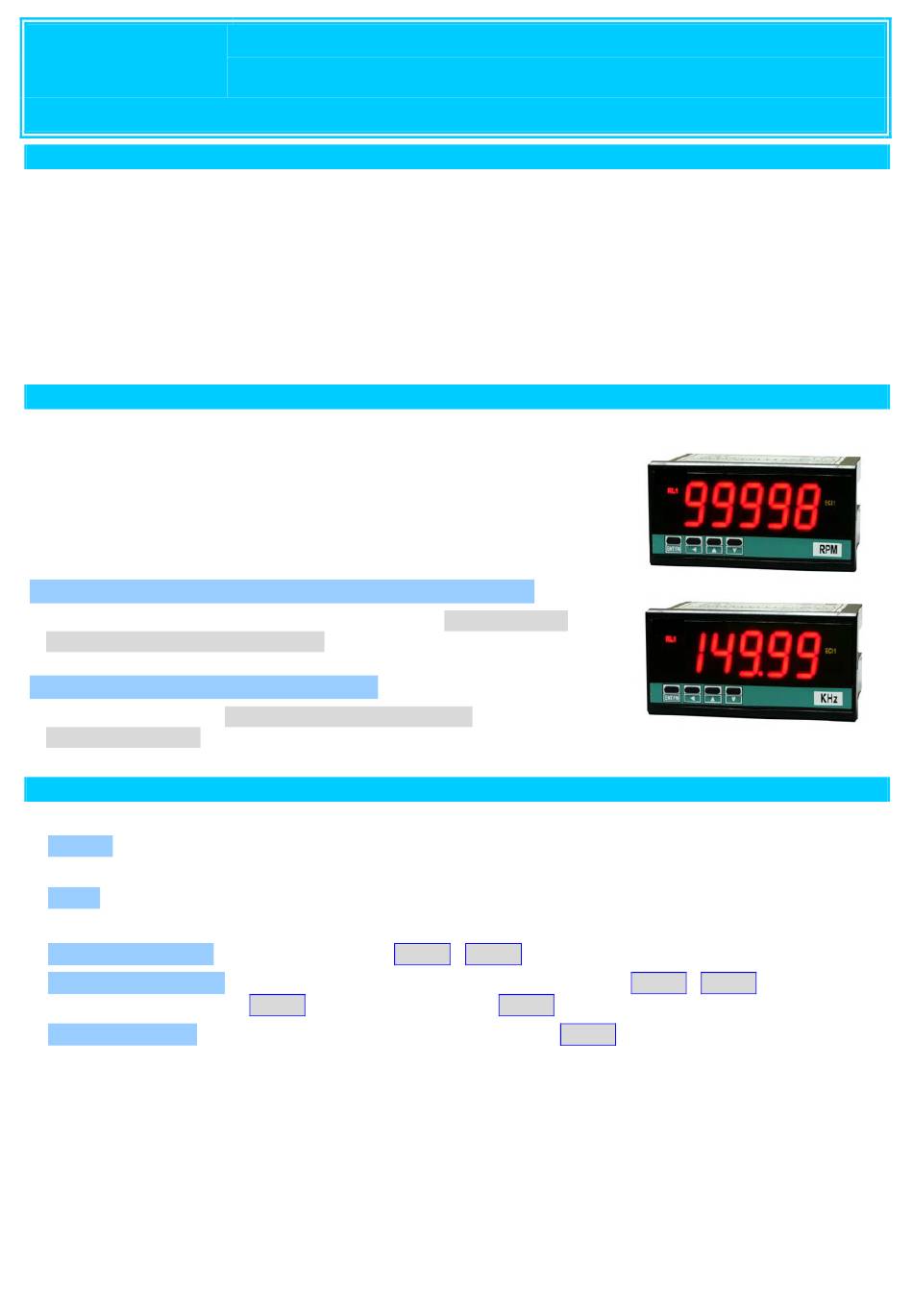

DESCRIPTION
■
CS1-RL(F) controller has been designed
measurement, display, control or communication (Modbus RTU mode) such as
pulse(Frequency) or AC Frequency.
 The innovation feature is auto-range input from 0.01Hz~ 100KHz(~140KHz in option). The display
resolution will be auto-changed to show the highest according to input frequency.
They have been designed optional 1 of 3 kinds for 1 Relay, 1 Analogue or 1 RS485
port with flexible display function such as max/mini hold, PV hold relative PV.....etc that
very useful in testing equipment and others.
2/38~7/38.
FEATURES
■
●
Accuracy: ± 0.005%; Display range: 0~99999; Auto-range with Decimal
Point auto changed according to input frequency.
●
1 relay, 1 Analogue output or RS 485 communication port can be
selected one in option
●
Relay for Hi / Lo energized with Start Delay / Hysteresis / Energized &
De-energized Delay / Relay Energized Latch...etc functions
●
EMC, EMI, LVD Approved & RoHS
【CS1-RL LINEARLY LINE SPEED / RPM CONTROLLER】
●
Measuring RPM / Linearly line speed / Frequency AUTO RANGE
0.01~100KHz / ~140KHz(optional) / Contact, NPN, PNP, Voltage pulse
can be switch on rear of meter.
【CS1-F FREQUENCY CONTROLLER】
●
Measuring Frequency AUTO RANGE 0.01~100KHz /
~140KHz(optional) / Voltage pulse or sine wave(specify).
APPLICATIONS
■
Models
●
CS1-RL Motor & Machinery / Testing Equipments for Measuring, Alarm or Communication with PC/PLC
 On line testing station for appliance, check points of PCB as so on.
●
CS1-F Switch Boards / Testing Equipments for Measuring
Functions
●
Safety & Protection Hi/Lo alarm and latch(hIhld / lOhld)
●
Testing & Measuring Front Key functiond for Maximum/Minimum hold(maXhd / miNhd), PV
●
Remote Monitoring
LINEARLY LINE SPEED / RPM INDICATOR
FREQUENCY INDICATOR
OPERATION MANUAL
hold(pVhld), Relative PV/Tare/∆PV(reLpv)
RS485 communication port, Display function(rs485)
CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04
simple and low cost with high accuracy
Please refer to the detail description on pages
1 / 30

Advertisement

loading
Need help?

Need help?

Do you have a question about the CS1-RL and is the answer not in the manual?

Questions and answers

Related Manuals for ADTEK CS1-RL

Summary of Contents for ADTEK CS1-RL

  • Page 1  Models ● CS1-RL Motor & Machinery / Testing Equipments for Measuring, Alarm or Communication with PC/PLC  On line testing station for appliance, check points of PCB as so on. ● CS1-F Switch Boards / Testing Equipments for Measuring ...
  • Page 2 16.665kHz ( m/mn / cm/mn / yd/mn / ft/mn), ovfl RPM 16.666kHz Diameter of rotordiamt) ● ovfl RPM 120kHz rpm / rps: Pulse/rotation( ppr) The input goes down to 999.99 RPM (Auto change) 16.665kHz 2 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 3 PV< l Setting value l, the display will be 0 orange LED will be bright during power on, until EX: Low Cut is set for 0.50, if the display is from -0.50~+0.50, that will be 0. 3 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 4 Lo: Relay will be energized when PV < Set Point  Average Display update (Fig.1-) Settable range: 1~99 times; Jittery Display caused by the noise or unstable signal. User can set number to average the readings to get smoothly display. 4 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...

  • Page 5: Start Delay

    Inhibit Inhibit be over 20% of span minimum; otherwise, it will [ry1.sp Hi Setting reflect the less resolution of analogue output. [ rYsb] Start Band  Relay Start Delay Time Energized [ rYsd]  5 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 6 Settable range: -38011~27524; [aOspn]: Fine Span Adjustment for Analog  R L 1 R L 1 CO M CO M CI11 CI11 Output; R PM ENT/FN ◄ ▲ ▼ ENT/FN ◄ ▲ ▼ Settable range: -38011~27524; 6 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 7 Dimensions: 96mm x 48mm x 72mm FIX HOLDER: PANEL CUT-OUT Panel Cutout: 92mm x 44mm (advise) +0.2 PANEL CUT-OUT: 72 mm(L) / W M3 44.0 (W) x 44 (H) mm +0.2 +0.2 1.0~8.0 mm Unit: mm +0.2 92.0 7 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 8 For input, RS485 wiring, RS485 Communication Port Herein recommended to use Max. Distance: 1200M twin with shielding wire. Terminate Resistor (at latest unit): 120~300ohm/0.25W (typical: 150ohm) RS485 Port 【CS1-F Frequency Controller】 【CS1-RL RPM/Linearlly Line Speed/Freq.Controller】 8 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 9 Reset fo Relay Latch maxi(mini) hold / Reset for relay energized latch. Ex. The [dNkey] function set to be reL.pv in [input group]. When user presses Key, the PV will show relative value until press again. 9 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 10 (1) In Function Index Page, press (2) In setting status for function, press to select will go to the next Function function Down key Index Page. (3) During number Setting, press can roll the digit down. 10 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 11 Programming Level PROGRAMMING LEVEL Password Press 1 second can back to Measuring Default:1000 input relay rs485 INPUT GROUP RELAY GROUP ANALOGUE RS485 GROUP OUTPUT GROUP group group group group 11 / 31 CS1-RL(F) – Operating Manual(EN) – 2013-01-04...
  • Page 12 Decimal point aOspn: Fine span pVdp ry!rd aOspn energized delay time seting adjustment for )0)0 0:00.0~9(m):59.9(s) analogue high ouput )0 / -38011~+27524 )000 / 0.0000 Next Page Next Page Next Page 12 / 31 CS1-RL(F) – Operating Manual(EN) – 2013-01-04...
  • Page 13 0.0sec~999.9sec range: Display range range mode auto auto / semi / manul ※ When by the RS485 read present value(PV),can only manul choose avg: Average update for PV 1(None)~99times Next Page 13 / 31 CS1-RL(F) – Operating Manual(EN) – 2013-01-04...
  • Page 14 /reLpv / pVhld / Mrst / rYrst Pcode: Password Pcode setting for access to 0000 programming level 0000~9999 Flock: Function level Flock lock none none / user / eng / 14 / 31 CS1-RL(F) – Operating Manual(EN) – 2013-01-04...

  • Page 15: Function Description

    Maximum value of PV Review only saving; The meter will save the maximum of PV 299(9 during power on, until reset in [ Mrst](step 0-5). It will save newest maximum PV after reset. Next Page 15 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 16 Default:1000 1000 Pass Code Press for 1 second to back Measuring Page RS485 INPUT RELAY ANALOGUE GROUP OUTPUT GROUP GROUP GROUP PRESS PRESS PRESS PRESS TO ACCESS TO ACCESS TO ACCESS TO ACCESS 16 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 17 Settable range: 0.001~9.999 !000 Display = Value of math with setting x Shift Down Enter !000 Factor The display can be proportioned by (999 factor.The typical application is compensation for gear ratio. Next Page 17 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 18 PV according to input signal Value [ lOcut] -)10 -0.10 Low cut function Low Cut is set for -0.10, if the PV is under (< = -0.10), that display will be -0.10. Next Page 18 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 19 The decimal point will be fixed according to the setting of [ dp]. The meter will show ovfl(overflow), once the input goes over the frequency that is relative 99999. & Selection Enter Next Page 19 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 20 Programming level lock. User can access to programming level for checking, but can not setting. all(All Level): All lock. User can access to all level for checking, but can not setting. & Selection Enter 20 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 21 Reset the relay Hold do(DO): Digital Output; Level Trigger rYrst by ECI or Front Key Relay is energized by RS485 command directly, and no longer to compare with set-point of relay. & Selection Enter Next Page 21 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 22 [ aOls] User can set the [aOls] (Ao.LS) to be 5)00 [ lOsc] OUTPUT 5)00. At meantime, the output signal will 50.00% 100.00% 0.00% be 4mA when the present value is 50.00. Next Page 22 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 23 [ aOhs]: 15)00 (Display value High); 10)00 [ hIsc] [ aOlmt]: 8)00%( of Output Range) 19(99 [ aOhs] Ao.LMt: 80.00% 15)00 10)00 [ aOls] 5)00 [ lOsc] OUTPUT 0.00% 50.00% 100.00% 80.00% [ aOlmt] 23 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 24 9600 9600 / 19200 / 38400 38400 & Selection Enter prity(PritY): Parity prity Programmable: NstB2 NstB1(n.Stb.1): None, 1 stop bit NstB2 NstB2(n.Stb.2): None, 2 stop bit even odd(odd): odd even(EvEn): Even & Selection Enter 24 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...

  • Page 25: Troubleshooting

    Display Issue: PROBLEM CHECKING LIST REMEDY Display 1.To inspect the input A.The input range of CS1-RL(F) is 0.01~100kHz(optional: shows range of meter whether 0.01~140kHz). Please make sure input of field is between did match with range in this range. ovfl B.Please check the setting of [range] function whether did it...
  • Page 26 B.Please confirm the output type is correct and check the range accuracy in [AOtyp](D-01) of [Ao group] the field or not? A.Please check the [AOls](D-02) and [AOhs](D-03) in [ ao 2.Check the Analogue output high and low group]. setting. 26 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 27 C.Please do not lay the wires of RS485 together with high-voltage lines or power lines. As a general rule, wire the meter in a separate system, use an independent metal conduit, or use shielded cable. 27 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 28 Diameter of rotor*(Low Word) 03E8h pv.spn_h 000Ah -19999~+19999 PV Span*(High Word) pv.spn_l 000Bh PV Span*(Low Word) rs485_h 000Ch -19999~+19999 PV controlled by RS 485 command *(High Word) rs485_l PV controlled by RS 485 command 000Dh *(Low Word) 28 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...

  • Page 29: Programming Level

    3: RS 485 001Fh 1~99 Average 0005h d.filt 0020h 0~99 Digital Filter 0000h p.code 0021h 0000~9999 Pass Code 03E8h Function Lock f.lock 0022h 0000h 0: None 1: User Level 2: Engineer Level 3: All 29 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
  • Page 30 Initial Write/Read Note adres RS485 address 0023h 1~255 0001h RS485 baud rate baud 0024h 0003h 0:1200 1:2400 2:4800 3:9600 4:19200 5:38400 prity RS485 parity 0025h 0001h 0: n-8-1 1: n-8-2, 2: odd, 3: even, 30 / 30 CS1-RL(F) –OPERATION MANUAL(EN)-2013-01-04...
