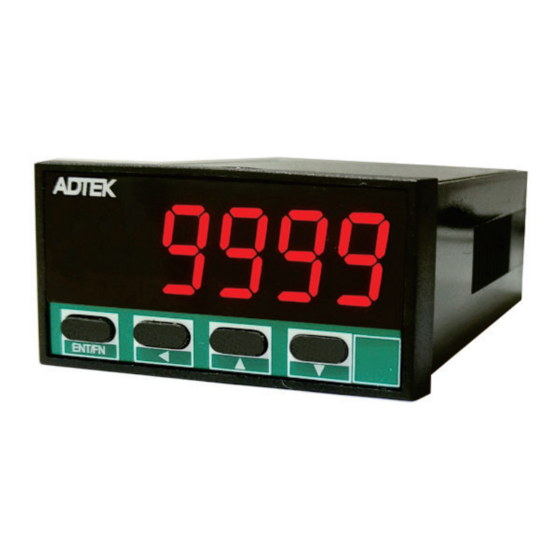

ADTEK CS3S-TR Manual

4 digital temperature(rtd) meter (1/32 din)
Hide thumbs
1
2
3

Advertisement

Quick Links

Download this manual

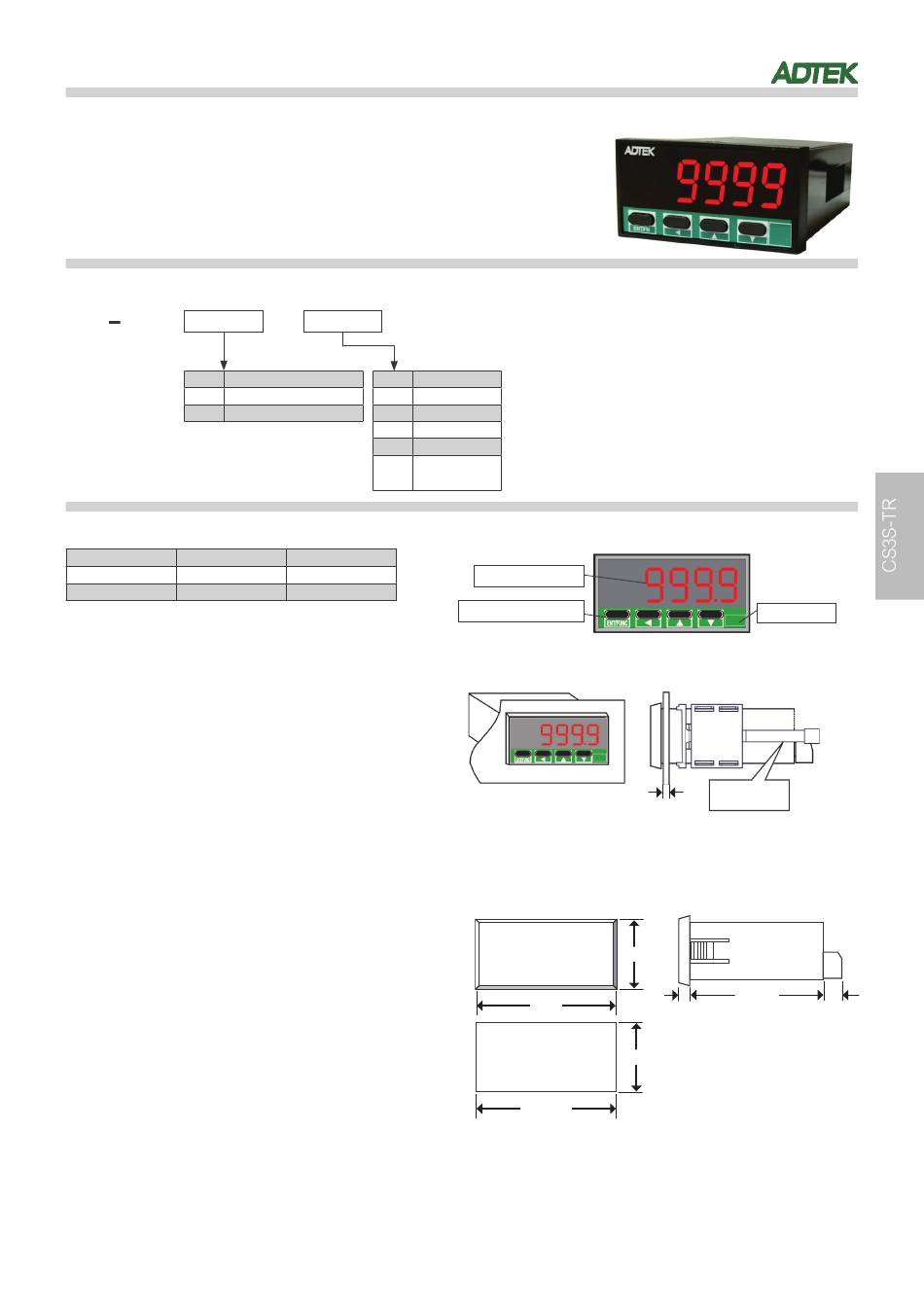

CS3S-TR
4 Digital Temperature(RTD) Meter (1/32 DIN)
■ Features
․ Measurement: Pt100 / Pt1000
․Accuracy: ±0.1%
․Display range: -1999~9999
․Dimension: 1/32 DIN (48x24mm)
․Highly stable and reliable
■ Ordering Information
—
CS3S
TR
Input Range
CODE
P1
Pt100(-199.9~800.0℃ )
P1K
Pt1000(-199.9~600.0℃ )
■ Measurement and Wiring
Measuring Type
Temp. Range
Pt100
-199.9~800.0℃
Pt1000
-199.9~600.0℃
■ Technical Specification
Input
A/D Converter：
14-bit resolution
Accuracy：
±0.1% F.S. ±1 count
Sampling rate：
15 cycles / sec
 100mS( AvG = "1")
Response time：
Display range：
-1999~9999
Decimal point：
0 / 0.0
Scaling function：
Locut ：-1999~9999 count
Digital fine adjust： pVzro ：℃：-199.9~800.0 / ℉：-326.2~1472.0
pVspn ：℃：-199.9~800.0 / ℉：-326.2~1472.0
Average for reading： avg ：1~99 times
Moving average for reading： Mvavg ：1~10 times
Digital filter for reading： DFilt ：0~99 times
Operating Temp.： 0~60℃
Humidity rating：
20~95 %RH, non-condensing
Temp. coefficient： ≦ 100 PPM/℃ (0~50℃ )
Storage Temp.：
-10~70℃
Dimensions：
48mm(W) x 24mm(H) x 78mm(L)
Panel cutout：
45mm(W) x 22.5mm(H)
IP Enclosure：
front panel：IEC 529 (IP52) ; housing：IP20
Power：
DC5V (4.5~9V) / DC12V (9~18V) /
DC24V (18~36V) / DC48V (36~72V) /
ADH：AC 85~264V / DC 100~300V
Power consumption： AC：<1.5VA ; DC：<1W
Isolation：
AC 2KV, for 1min；between power / input / case
Insulation resistance：  100MΩ@ 500Vdc, between power / input /
case
Material：
ABS (fire-retardant)
Wire terminal：
Plastic NYLON 66 (UL 94V-0)
Input: AWG：16~22 / 1.3~2.0mm
Screw Torque Value：M2.5 / 5Kg-cm
Weight：
About 60g
Rev 1.2
2023-03-10
—
AUX. Power
Input Range
CODE
AUX.Power
D5
DC 5V
D12
DC 12V
D24
DC 24V
D48
DC 48V
AC 85~264V
ADH
DC 100~300V
Input resistance
≧ 1MΩ
≧ 1MΩ
2
■Front Panel
Display Screen
Operation Key
■Installation
The meter should be installed in a place where it does not exceed the
maximum operating temperature and provides good air circulation.
■Dimensions
Front View
48.0
Panel Cut-out
+0.6
45.0
CS3S-TR
Unit Label
FIX HOLDER
2 PCS
1.0~8.0mm
24.0
61.0
5.0
+0.3
22.5
Unit:mm
12.0
1/3
