ADTEK CS3S VA Quick Start Manual

CS3S VA
-
FEATURE
TECHNICAL SPECIFICATION
Measuring Range Resolution Input resistance
0~199 9 A . µ 0 1 A . µ
0~1 999mA . 0 001mA .
0~19.99mA 0 01mA .
Current
0~199.9mA 0 1mA .
0~1.999A 0 001A .
0~1.000A 0 001A .
0~1mA 0 001mA .
0~199 9mV . 0 1mV .
0~1 999V . 0 001V .
0~19 99V . 0 01V .
0~199 9V . 0 1V .
Voltage
0~300V 1V
0 1mV .
0~50.0mV
0 60.0mV ~ 0 1mV .
0 1mV .
0 100.0mV ~
Ordering Information
CS3S VA -
Input type
Input Type
CODE
DC
D
AC
A
True RMS
T
Rev 1.2
2017-01-09
Voltage/Current Indicator
Measuring type
≦ Ω
1K
≦100Ω
≦ Ω
10
≦ Ω
1
≦ . Ω
0 05
≦ . 0 05 Ω
≦200Ω
DC
≧ Ω
5M
AC
≧ Ω
1M
≧ Ω
1M
≧ Ω
1M
≧ Ω
2M
≧ Ω
5M
≧ Ω
5M
≧ Ω
5M
Input Range
Voltage Current
Input Range Input Range
CODE
CODE
V1 0~199 9mV .
A1 0~199 9 A
0~1 999V .
V2 0~1 999mA
A2
V3 0~19 99V . 0~19.99mA
A3
V4
0~199 9V . 0~199.9mA
A4
V5 0~300V 0~1.999A
A5
0~50.0mV
VA A6 0~1.000A
0~60.0mV
VB A7 0~1mA
0~100.0mV
VC

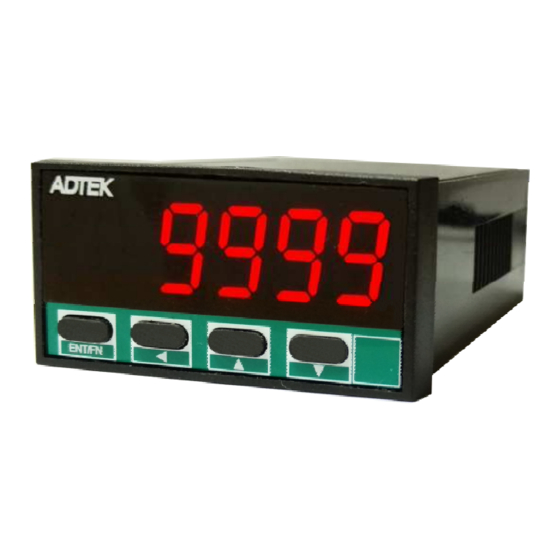

Front Panel
Operating key
Installation
The meter should be installed in a location that does not over
the maximum operating temperature and humidity
and provides good air circulation
Dimensions
FRONT VIEW
PANEL CUT-OUT
Connection Diagram
SIGNAL
INPUT
Current/Voltage
AUX Power
.
AUX.Power
CODE
D5 DC 5V
. µ
D12 DC 12V
.
D24 DC 24V
D48 DC 48V
AC 85 264V ~
ADH
DC100 300V ~
CS3S VA -
Display area
Unit lable
FIX HOLDER
2 PCS
5
22.5
Terminal blocks:
AC 85 264V ~
DC 100 300V ~
ADH
DC
AUX.POWER
1/3
