Open the Tools menu by clicking the hammer and wrench icon,
1
then select Clear Edit Area.
Click on the sidebar button until sidebar 1 appears.
2
Open the Tools menu again and select Restart Auto Cfg.
3
Let the configuration process run (this could take a few sec-
4
onds to a few minutes) until all of the lanes have been found
by SSMHD; they will appear as blue bars in the sidebar and, if
Show Auto Lanes is turned on, in the edit area.
If the software's set to Show Auto Lane, change it: open the
5
View menu by clicking the magnifying glass icon, and select
Hide Auto Lanes; the automatically detected lanes will disap-
pear from the edit area.
If you want to capture all the lanes that appear in the sidebar,
6
click anywhere in the sidebar; in the Automatic Lane window
that appears, click Copy Sidebar. If you only want to capture
certain lanes, click on those lanes in the sidebar; in the Auto-
matic Lane window that appears, click Copy Lane. Repeat as
needed. Captured lanes will appear black.

Excluding or including a lane or area

Click on the lane or shoulder area you want to exclude. The
1
Shoulder Area window or Lane window will appear, based on
which you clicked.
Click the Exclude button.
2
To include an area that has previously been excluded, click on it
3
to open this window again, and click Include.

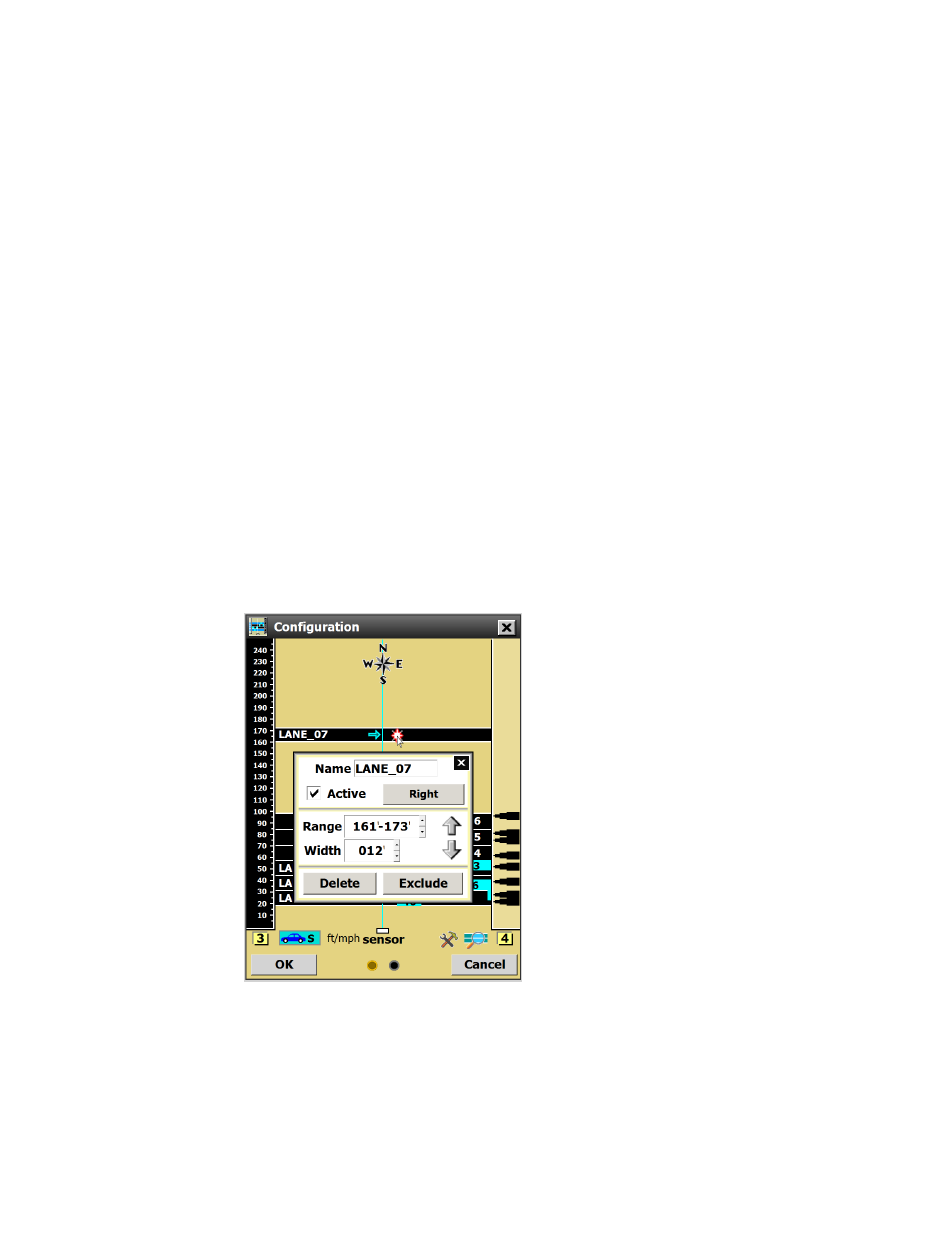

Figure 56. Lane window
Note. Excluding
a lane or area is
useful when you're
aligning the sensor
and there are non-
parallel lanes that are
making the alignment
difficult. It can also
stop events from
being generated in
any non-lane areas.
