Note. This section
assumes you are
using the Surge
Preassembled
Cabinet from
Wavetronix. If you
bought individual
Click modules
instead, see Click
100–400 Series User
Guide and support
document 295,
How to Assemble
the Power Plant. If
you are not using
Wavetronix devices,
contact your
dealer or visit the
knowledge base at
www.wavetronix.com.
SmartSensor HD User Guide
24
•
Installations with a pole-mount
box and traffic cabinet
As shown below, this is an installation where the sensor cable runs
down the pole to the pole-mount box, then down to ground level,
where it runs underground to a traffic cabinet. Power and commu-
nication modules are located in the cabinet, and power is sent to
the sensor via the sensor cable.

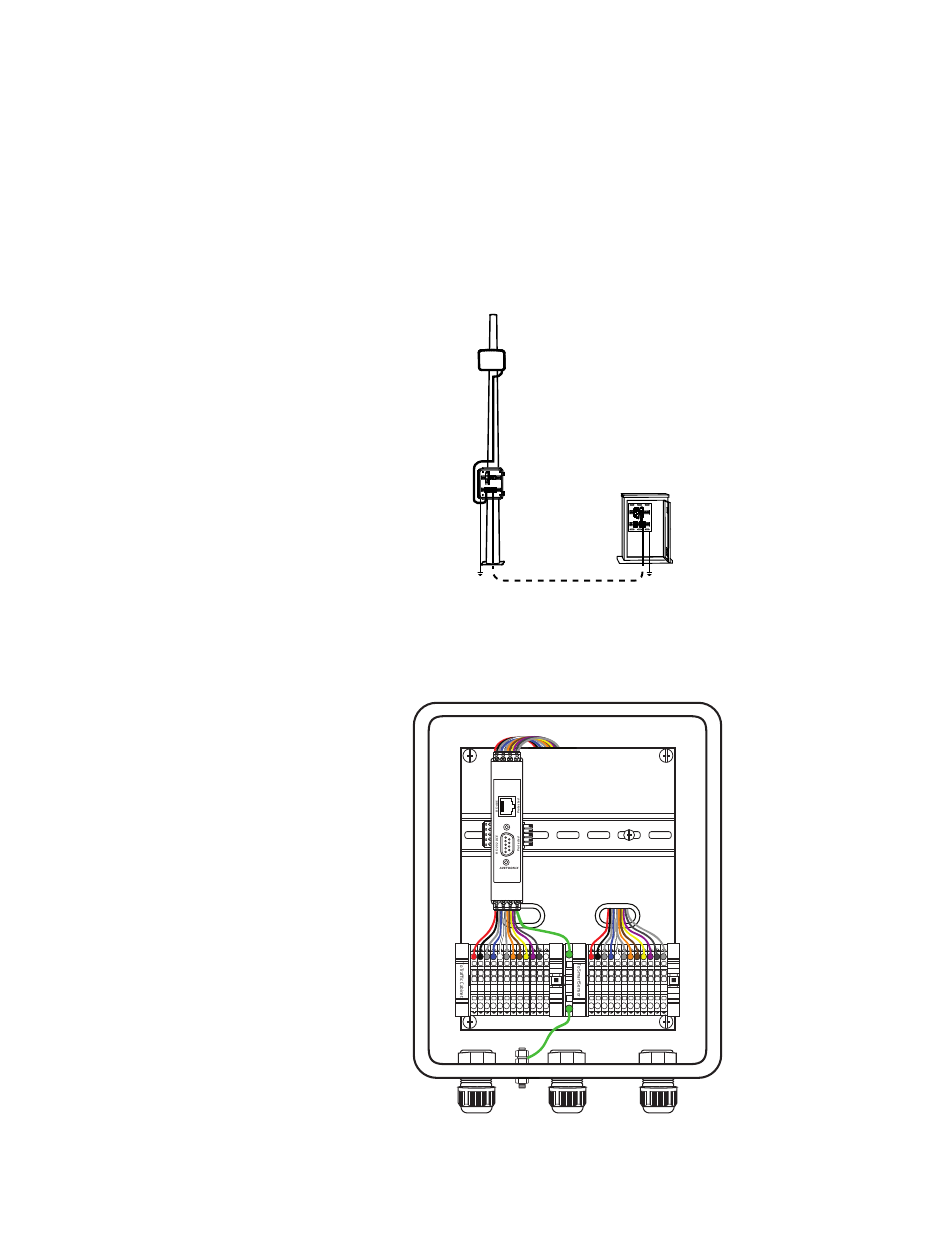

Figure 18. Installation with pole-mount box and traffic cabinet

Setting up the pole-mount box

Figure 19. Surge Preassembled Cabinet (pole-mount box)
Lightning
Surge
Protection
W
Click!
200
+DC -DC GND 485- 485+ GND RTS CTS TD RD GND GND +DC -DC GND 485- 485+ GND RTS CTS TD RD GND GND
