SmartSensor HD User Guide
28
•
Use the included screws to mount the Standard Preassembled
2
Backplate in the traffic cabinet.

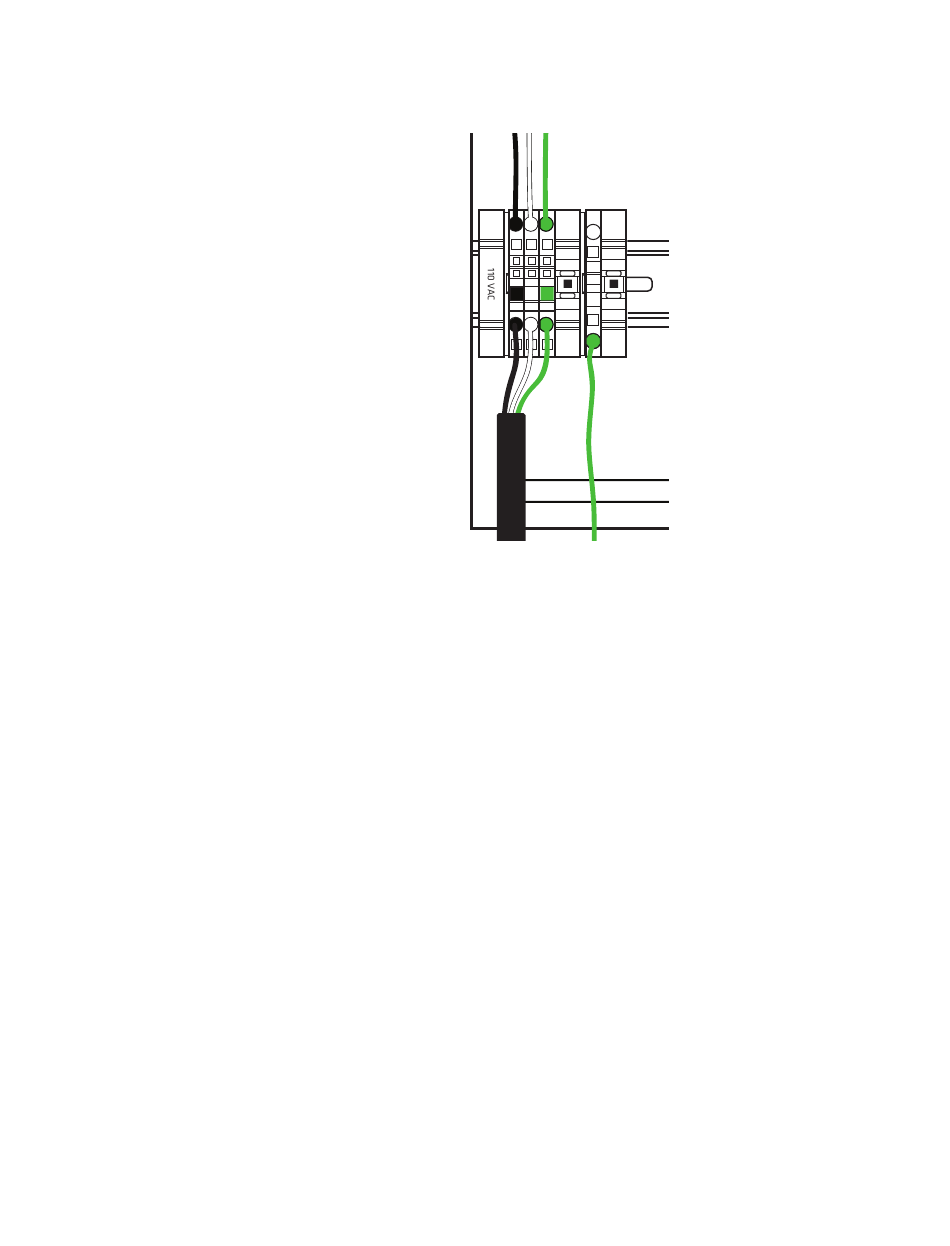

Figure 26. Connecting power cable to terminal blocks
Start by connecting the power cable. This backplate is shipped
3
from Wavetronix with the conductors in the cable already ter-
minated in a terminal block plug. Insert this plug into the power
terminal blocks.
If for some reason the conductors aren't terminated into the
4
terminal block plug, terminate them by inserting each conduc-
tor into the corresponding round hole on the plug (match each
conductor to the label of the same color on the plug). Do not
strip the insulation. Insert a small screwdriver into the square
hole above it, and rock upwards to secure the conductor in
place. Repeat with each conductor.
L L N G G
W
Click!
200
+DC -DC GND 485- 485+ GND RTS CTS TD RD GND GND
