Wavetronix SmartSensor HD User Manual page 96

Push
Access the Push screen by clicking the Push button on the Data
screen.
This function lets you push data from the sensor without waiting for
a request from SSMHD. You can push event, interval or presence
data.
Enabling data push
Choose which kind of data you want to push, then click on the
1
corresponding tab: Event, Interval or Presence.
Click the Enabled checkbox.
2
Choose which port you want to push the data on, RS-485 or
3
RS-232. Be aware that both of these are half-duplex, meaning
that they can't send and receive data at the same time. If you
use one of these ports for pushing data, you might want to use
a different port when connecting to the sensor.
Choose which format you want the pushed data in.
4

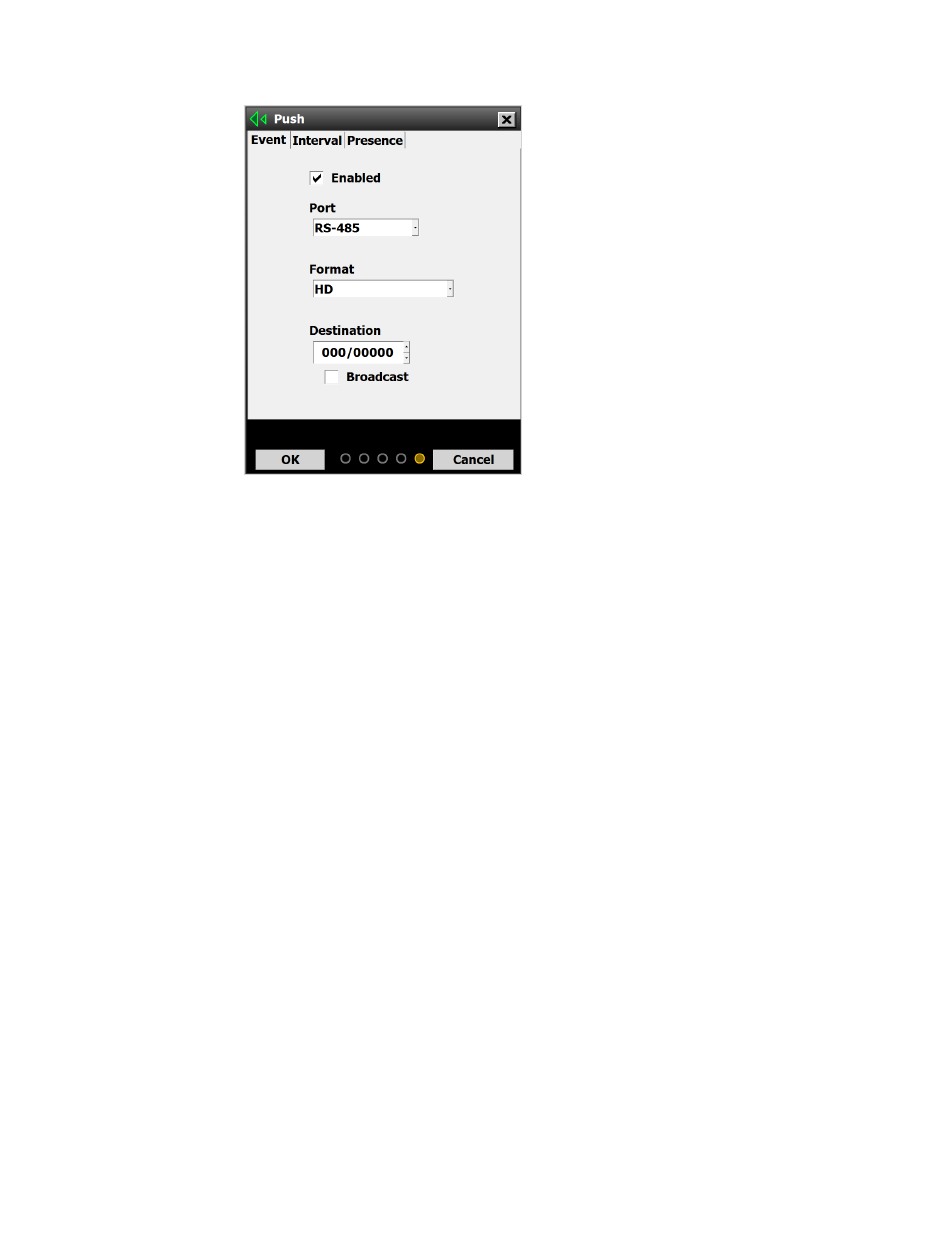

Figure 89. Push screen
Chapter 8: Setting Up and Downloading Sensor Data
Note. You can set
the sensor to push
multiple kinds of
data at the same
time, but if you do,
set them to push
on different ports.
95
•
