Wavetronix SmartSensor HD User Manual page 89

Definition. There
are two direction
bins: Right and
Wrong. Vehicles are
classified depending
on whether they
are traveling the
direction the lane
is configured. For
bi-directional lanes,
traffic moving from
left to right will
be placed in the
Right bin, and traffic
moving from right
to left will be placed
in the Wrong bin.
SmartSensor HD User Guide
88
•
To remove a lane from your approach, highlight it in the
6
approach list, and click the left arrow to move the lane back to
the lanes list.
When you're done, click OK. Repeat steps 1–6 as needed.
7
To remove an approach, highlight it and click the – button at the
8
top of the Approaches area.
Using direction bins
To enable the use of direction bins, click the Direction checkbox in
the lower righthand corner of the Definitions screen.
Using the Speed = 0 option
If during an interval, the volume is zero (meaning no cars were
detected), SSMHD will report the average speed of the last good
interval. If you would like the intervals that are reporting zero
volume to report speeds as zero, simply check the If volume = 0,
speed = 0 checkbox.
Interval Data

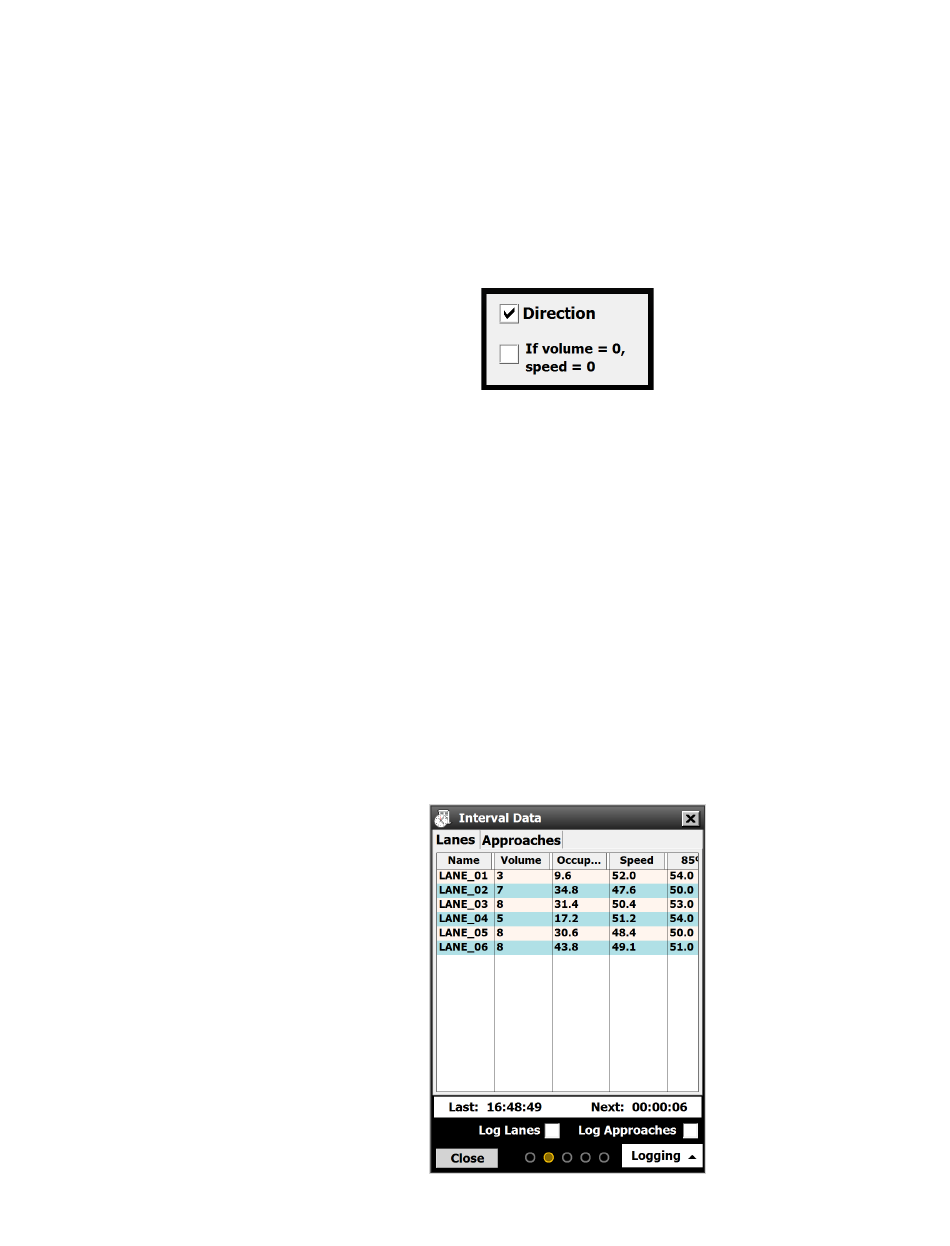

Figure 83. Interval Data screen, Lanes tab
Figure 82. Direction checkbox
