Applying Silicon Dielectric Compound - Wavetronix SmartSensor HD User Manual

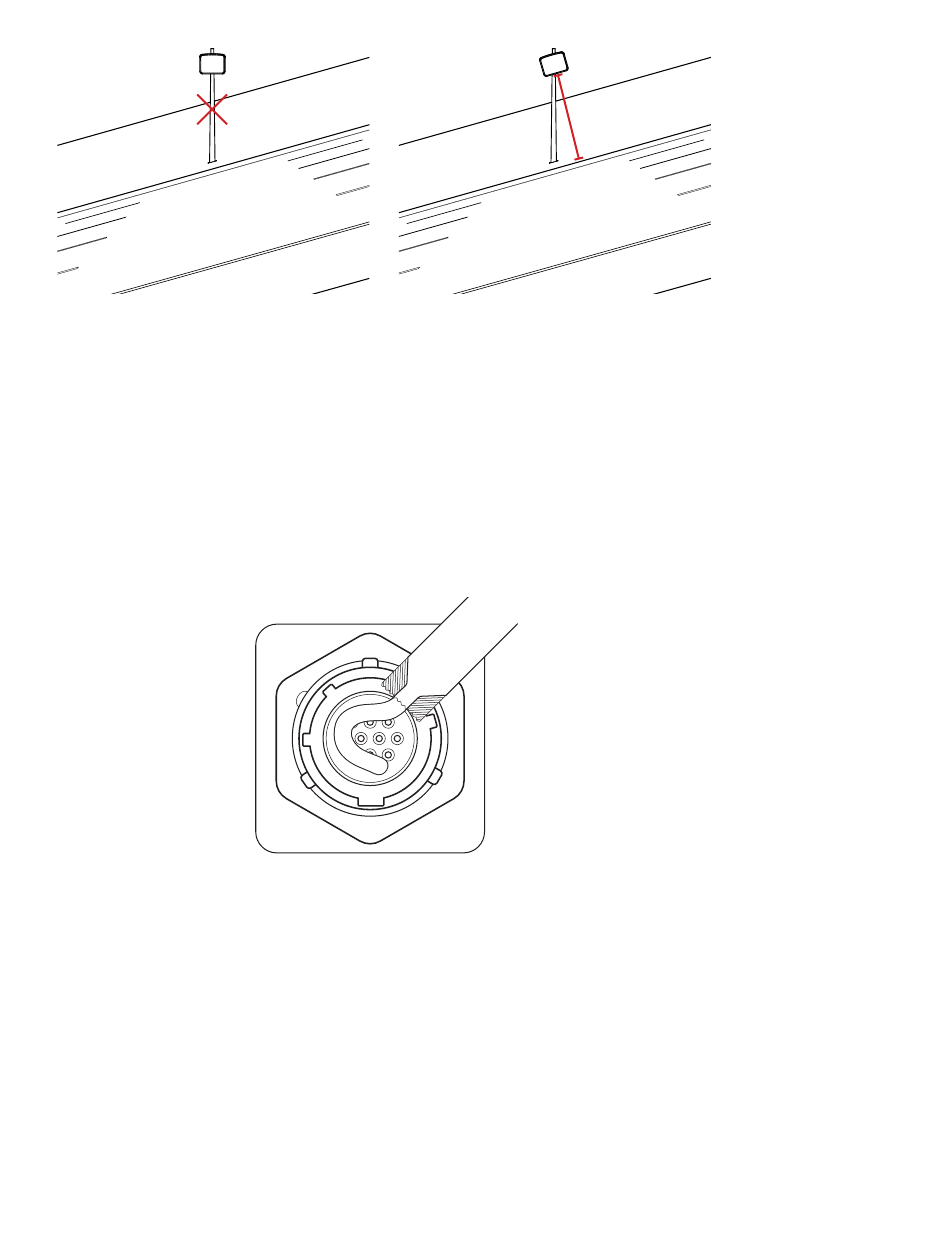

Figure 9. Rotating the sensor on a hill: incorrect (left) and correct (right)
If the sensor is installed on a road with an uphill/downhill grade,
3
rotate the sensor so that the bottom edge matches the grade
of the road (this will require the purchase of a rotating sensor
backplate).
Once you are satisfied with the sensor alignment and position-
4
ing, tighten all bolts in the mount.

Applying silicon dielectric compound

Figure 10. Applying the compound
Tear the tab off the tube of silicon dielectric compound that
1
came with the sensor.
Squeeze about half of the compound on the connector at the
2
base of the sensor.
