Using the Shoulder Area window

Click in the shoulder (tan) area to open this window.
Setting
Range & Width
Hide Auto Lanes
Add Lane

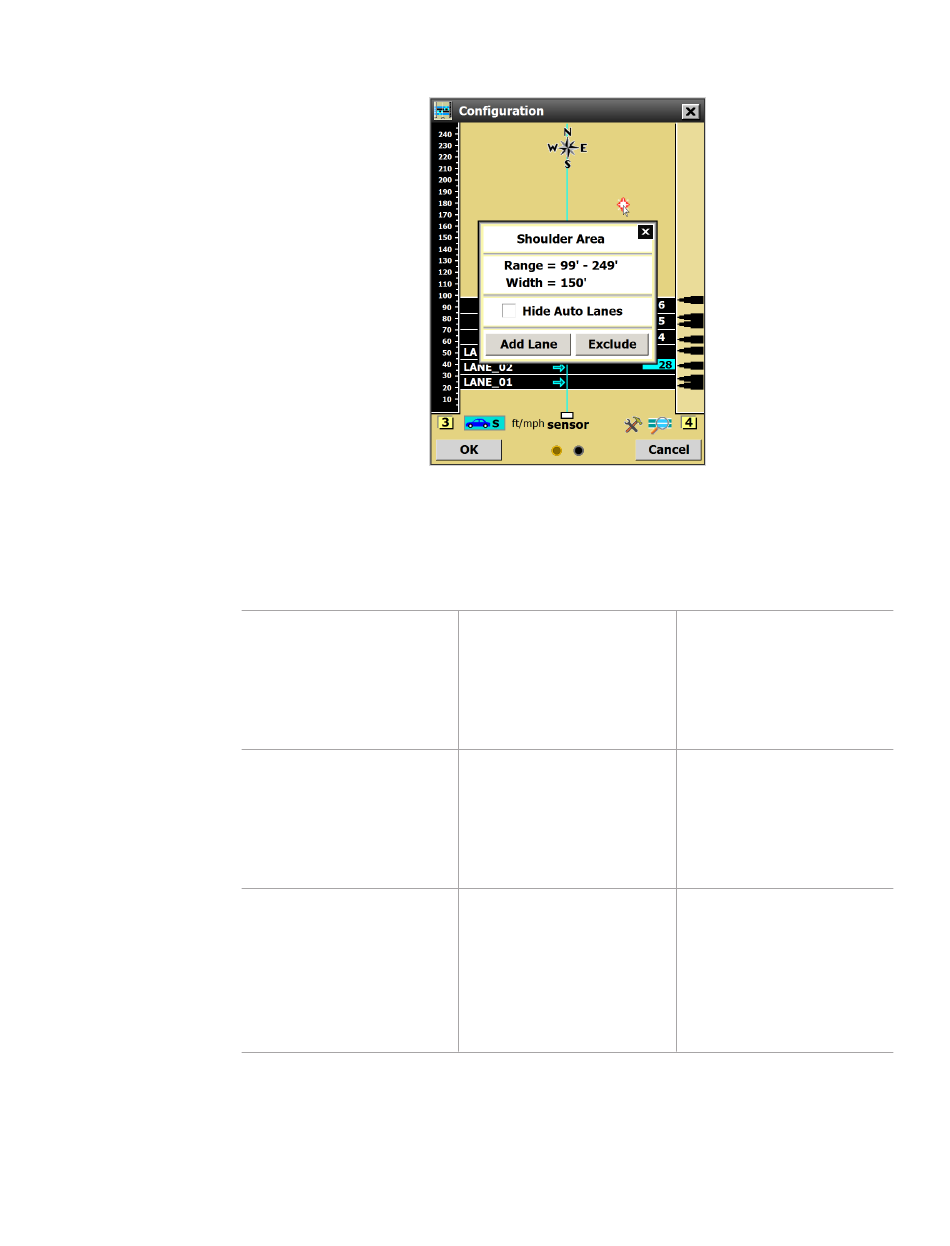

Figure 68. Shoulder Area window
Description
Shows the size and
placement of the
lanes (Range refers to
the distance from the
sensor).
Hides (but does
not delete) the
automatically
configured lanes from
the edit area.
Creates a new lane in
the spot you clicked
on.
Details
Can't be changed.
This can also be done
through the View
menu.
Unlike automatically
configured lanes,
which are blue when
they first appear,
user-created lanes
will appear black.
