Wavetronix SmartSensor HD User Manual page 94

Downloading stored detection data
Type a name for your download in the Name text field.
1
If you want all the data currently on the sensor, keep the Down-
2
load all of the data checkbox checked. If you want only part of
the data, uncheck that checkbox, which will make the Begin:
and End: fields editable. Set those to the desired begin and
end date/times for your download.
Click Start Download.
3
The Download Progress window will appear to show the status
4
of the download. If you need to, use the buttons at the bottom
of the window to start, pause or stop the download.

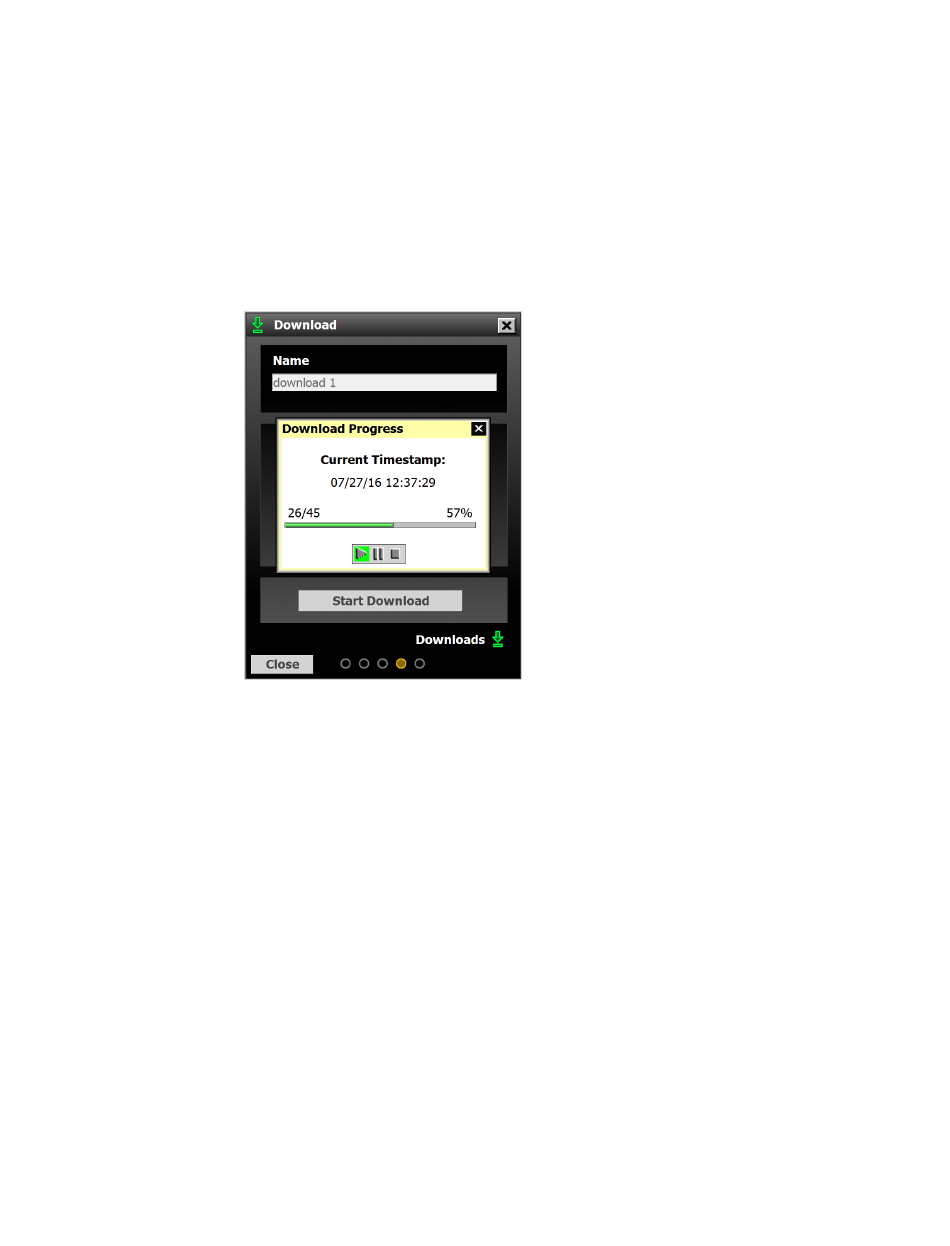

Figure 87. Download Progress
Chapter 8: Setting Up and Downloading Sensor Data
Note. You can view
a list of previous
data downloads by
clicking the green
Downloads arrow
in the lower right
corner. A similar
button can be found
in the corner of the
Data button on the
main SSMHD screen.
93
•
