Lightning
Surge
Protection

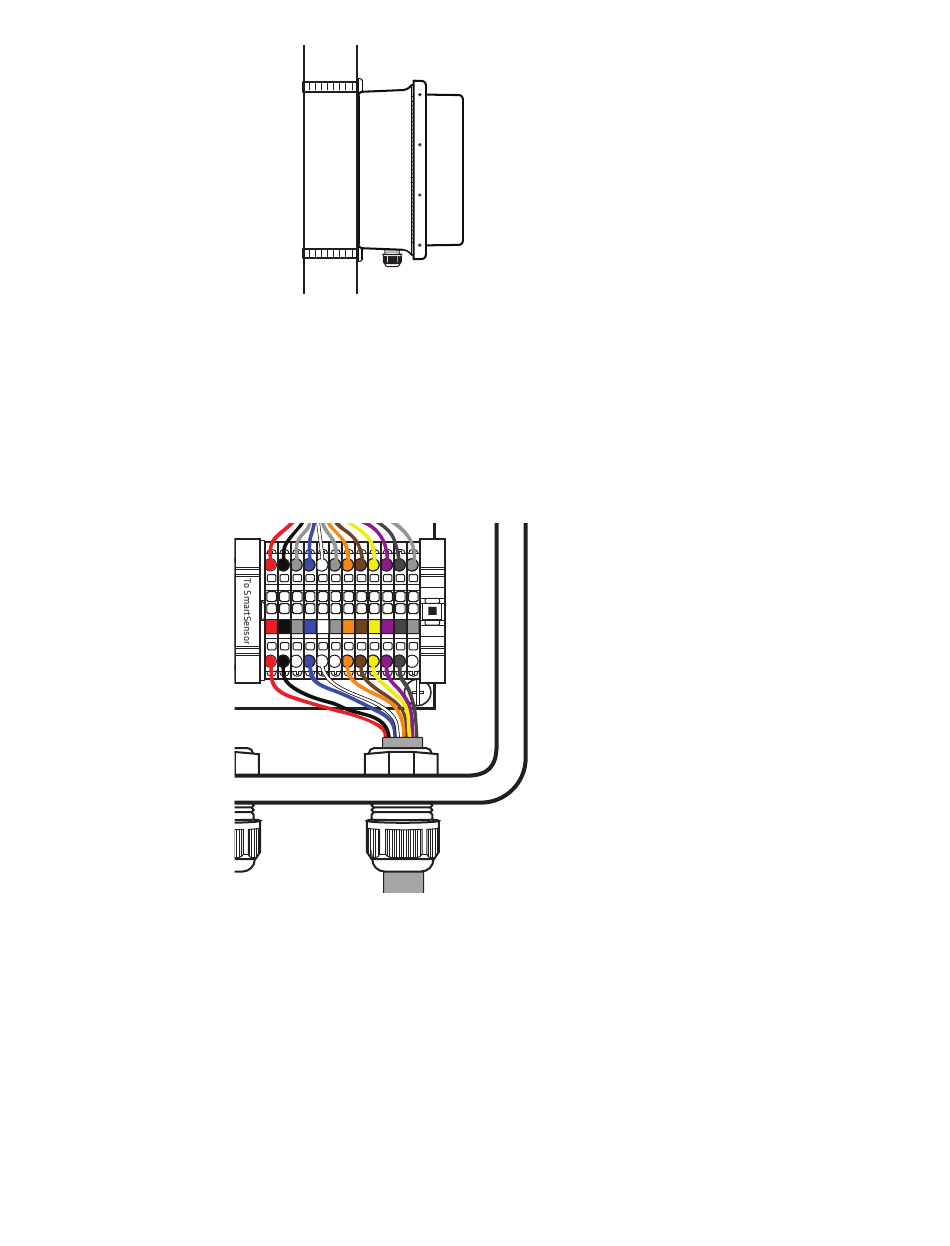

Figure 20. Attaching the pole-mount box
Find the mounting brackets that were included in the pack-
1
age and attach them to the back of the Surge Preassembled
W
Click!
200
Cabinet.
Use Band-It or a similar clamping system to attach the Surge
2
Preassembled Cabinet to the pole.
+DC -DC GND 485- 485+ GND RTS CTS TD RD GND GND
Figure 21. Connecting sensor cable to terminal blocks
Insert the sensor cable (the pigtail cable coming from the
3
sensor) through the rightmost cable grip on the bottom of the
box. Twist the cable grip to tighten.
Start connecting conductors to the terminal blocks marked "To
4
SmartSensor": insert the red conductor into the round hole on
the plug portion of the +DC terminal block (do not strip the insu-
lation). Insert a small screwdriver into the square hole above it,
and rock upwards to secure the conductor in place.
Repeat step 4 to land each conductor into the correct terminal
5
+DC -DC GND 485- 485+ GND RTS CTS TD RD GND GND
+DC -DC GND 485- 485+ GND RTS CTS TD RD GND GND
