Installing the SmartSensor HD

Mounting the sensor

Prepare the sensor while still on the ground: remove the large
1
bolts holding the end knuckle to the mount, then use the
four small bolts and lock washers to attach the knuckle to the
sensor backplate.
Once you're ready to mount the sensor on the pole: insert the
2

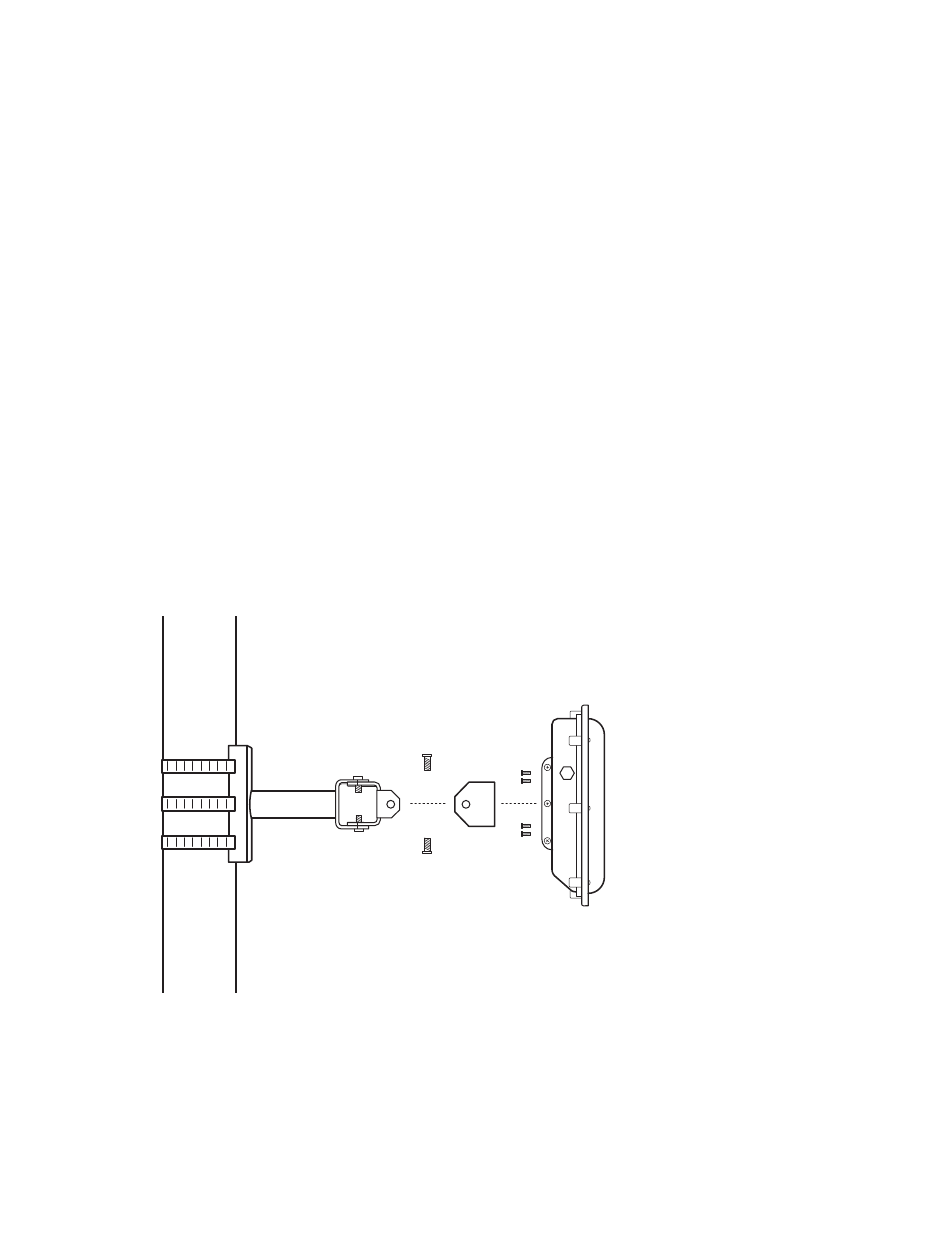

Figure 6. Mounting the sensor
2
