Troubleshooting

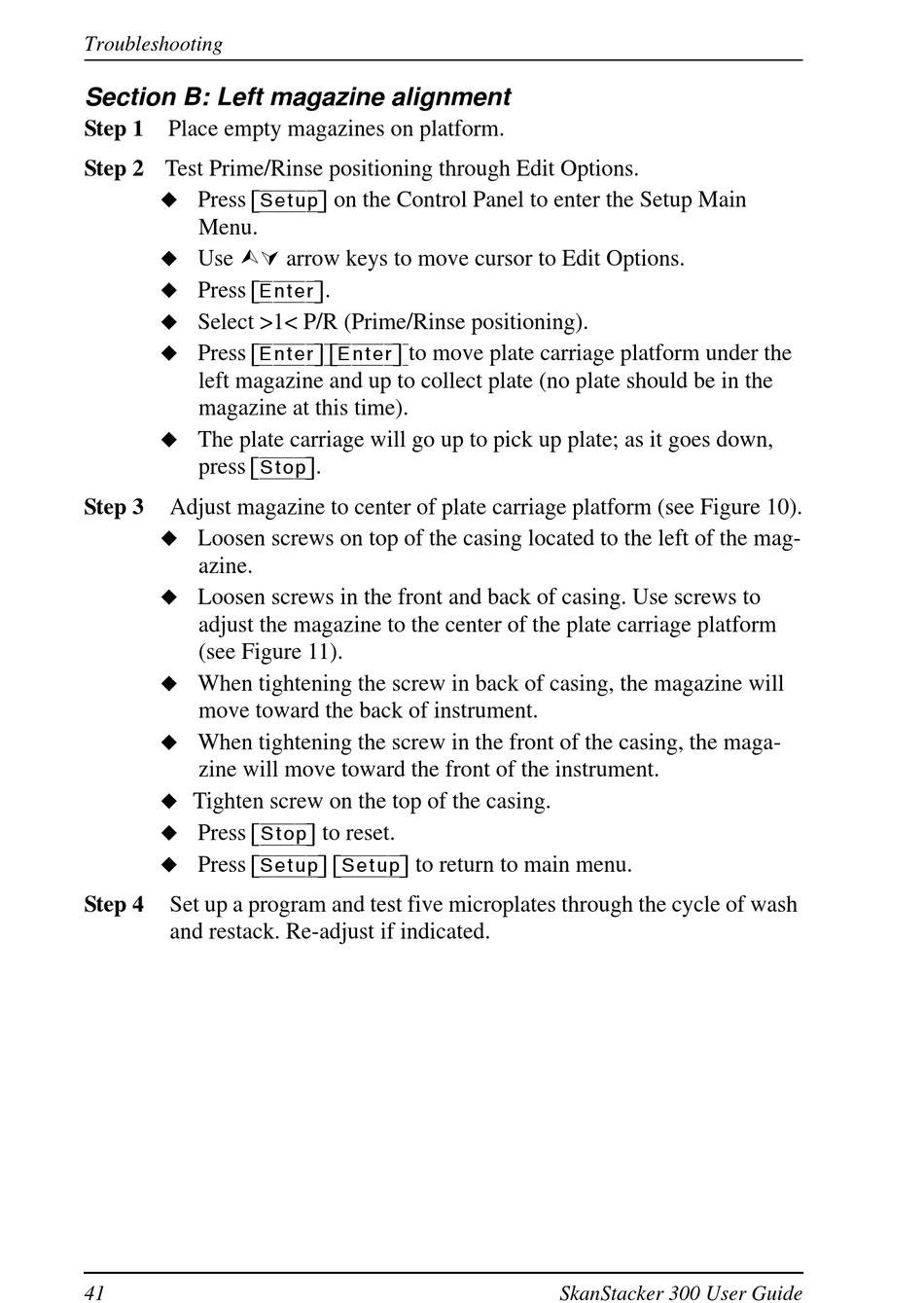

Section B: Left magazine alignment

Step 1 Place empty magazines on platform.
Step 2 Test Prime/Rinse positioning through Edit Options.
Press
[Setup]
Menu.
Use
Press
[Enter]
Select >1< P/R (Prime/Rinse positioning).
Press
[Enter] [Enter]
left magazine and up to collect plate (no plate should be in the
magazine at this time).
The plate carriage will go up to pick up plate; as it goes down,
press
[Stop]
Step 3 Adjust magazine to center of plate carriage platform (see Figure 10).
Loosen screws on top of the casing located to the left of the mag-
azine.
Loosen screws in the front and back of casing. Use screws to
adjust the magazine to the center of the plate carriage platform
(see Figure 11).
When tightening the screw in back of casing, the magazine will
move toward the back of instrument.
When tightening the screw in the front of the casing, the maga-
zine will move toward the front of the instrument.
Tighten screw on the top of the casing.
Press
[Stop]
Press
[Setup] [Setup]
Step 4 Set up a program and test five microplates through the cycle of wash
and restack. Re-adjust if indicated.
41
on the Control Panel to enter the Setup Main
arrow keys to move cursor to Edit Options.
.
to move plate carriage platform under the
.
to reset.
to return to main menu.
SkanStacker 300 User Guide
