Parts and Description
upward toward the aspirate probes. This creates a very gentle
aspiration and avoids disturbing the coating in the wells.
The lift automatically returns to the home position (lower) when the
instrument is powered on.
Control Panel
The control panel located on the front of the SkanStacker contains eight touch
keys, three LEDs, and a LCD display, all of which are used to program and
control the instrument.
LED-Setup
LED-Program
Program

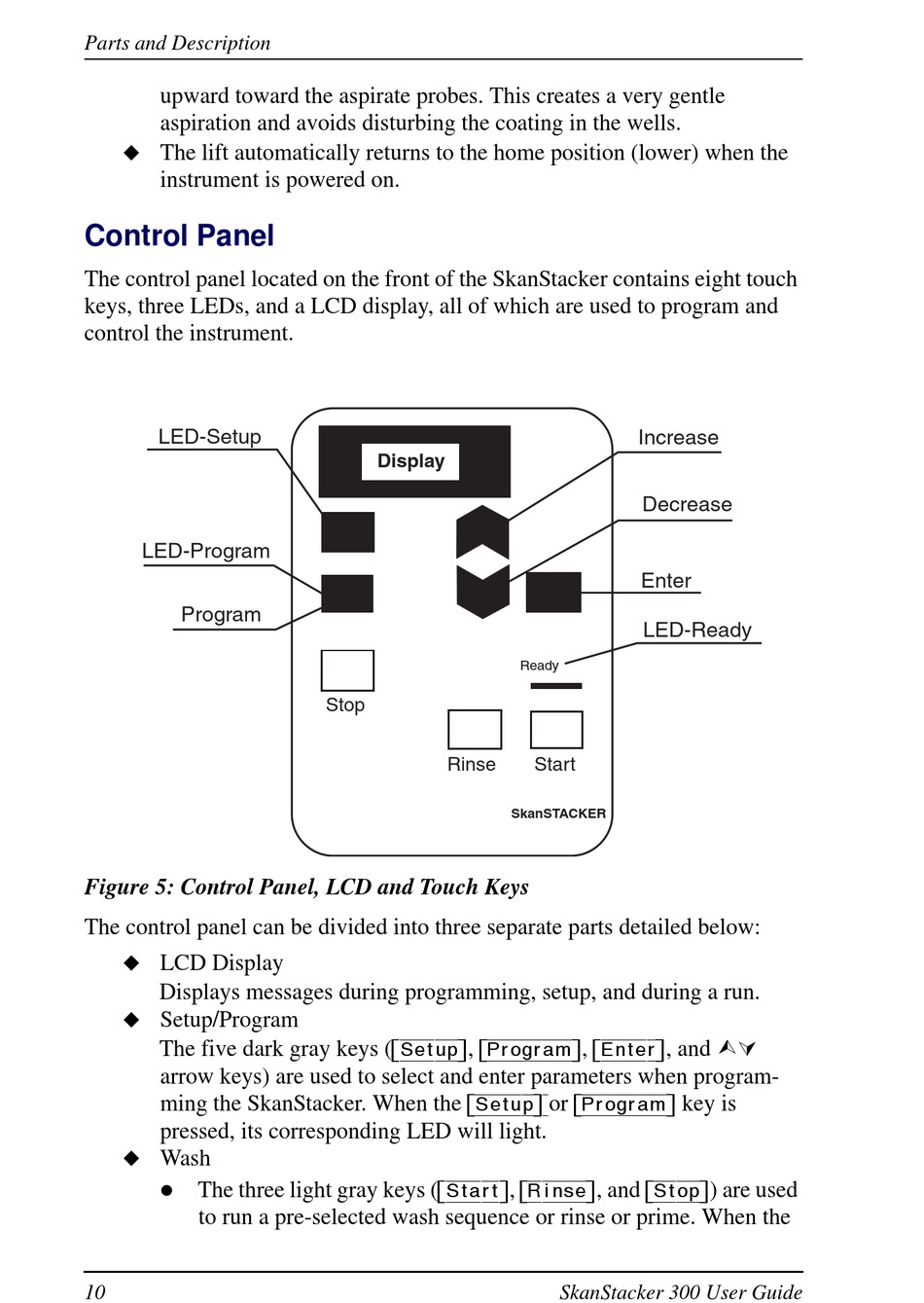

Figure 5: Control Panel, LCD and Touch Keys
The control panel can be divided into three separate parts detailed below:
LCD Display
Displays messages during programming, setup, and during a run.
Setup/Program
The five dark gray keys (
arrow keys) are used to select and enter parameters when program-
ming the SkanStacker. When the
pressed, its corresponding LED will light.
Wash
The three light gray keys (
to run a pre-selected wash sequence or rinse or prime. When the
10
Display
Stop
Rinse
,
[Setup]
[Program]
[Setup]
[Start]
Increase
Decrease
Enter
LED-Ready
Ready
Start
SkanSTACKER
,
, and
[Enter]
or
key is
[Program]
,
, and
[Rinse]
[Stop]
SkanStacker 300 User Guide
) are used
