8. Remove the BioRakes and place them on the Y axis.
9. Using the actuator control arrows, drive the Y actuators until all 10 BioRake tips are
collinear as in step 4 (IN MIRROR MATCHING MODE ONLY!).
10. From the Tools menu select Advanced and select Centre Position Calibration. This is the
final Centre Position Calibration after temporarily assigning this position in step 2. This

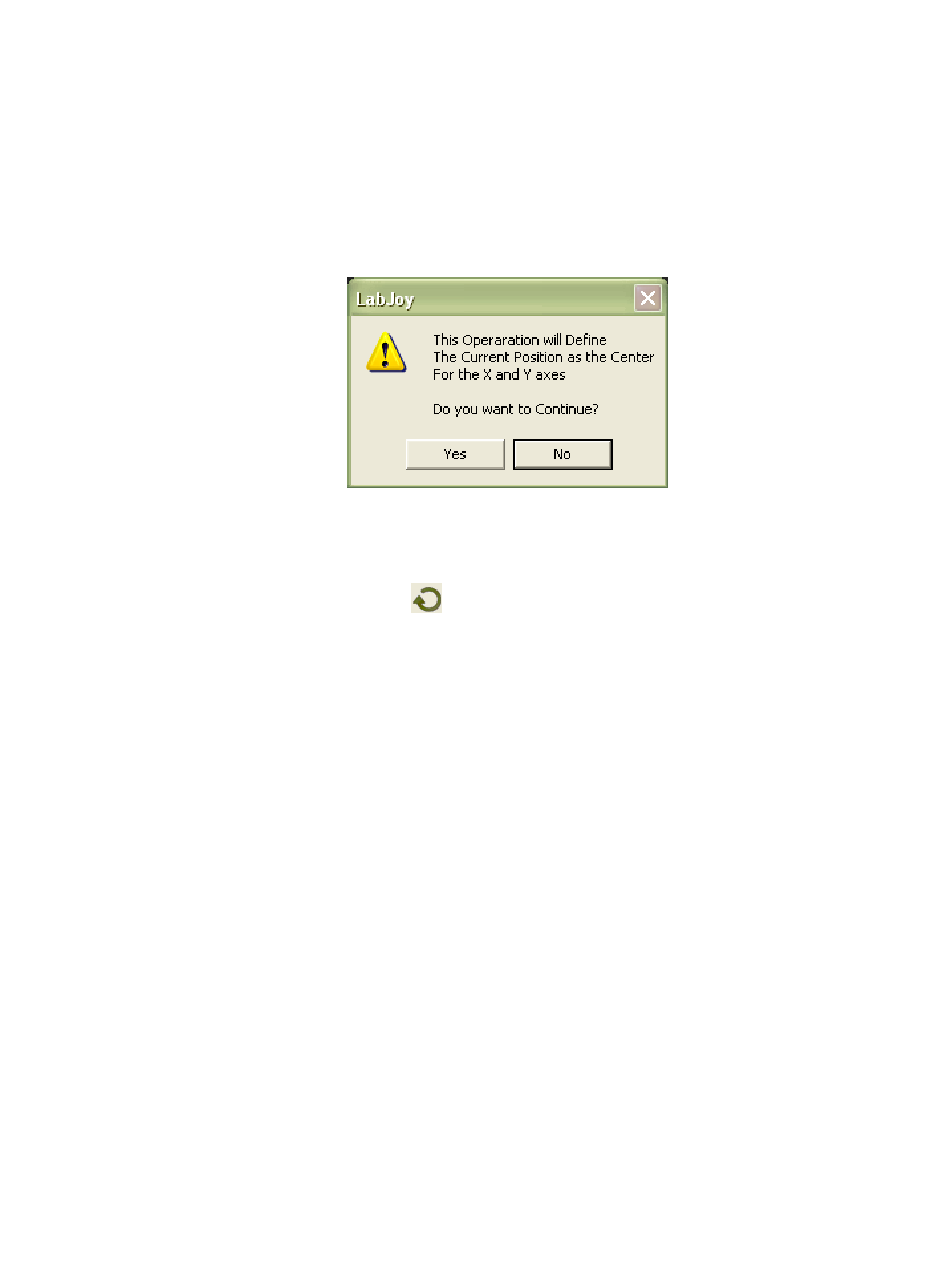

should bring up the following dialogue box:
11. Press Yes.
12. Select the reset actuators button
To check the center position calibration, use the Tools>Advanced>Move to Centre command and
place 2 opposing BioRakes. Compare the position of the rakes to the image in step 7 above.
After a successful center position calibration, the actuators can be successfully moved to a given
sample size before beginning a test (for example, 4700um x 4700 um) and the tips should form a
square.
(or use Tools>Reset Actuators).
