Exporting Images and Movies

The current Image view, including all displayed tracking
grids, tracking data and overlaid data can be exported
as a metafile by selecting Current Image from the
Export menu. Alternately, the current image view can
be copied to the clipboard by selecting Ctrl-C from the
keyboard.
To export a series of image views, including all
displayed tracking grids, tracking data and overlaid

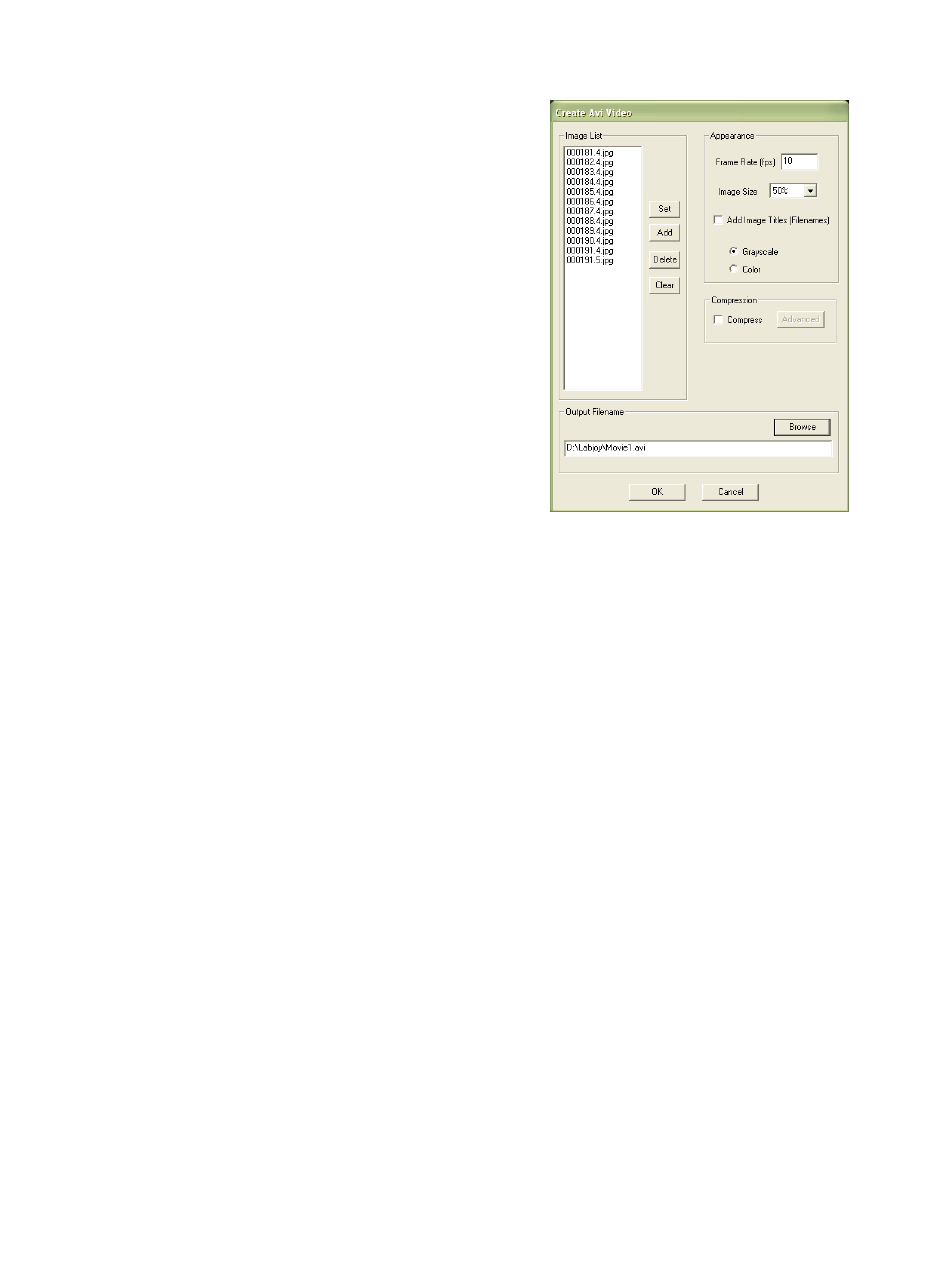

data as an .avi movie, select Movie from the Export
menu. The dialogue shown on the right will be
displayed. The image list is automatically set to the
currently selected images in the test image list tree.
This image list can be changed by selecting new
images in the test image list tree and pressing the set
button. Options are available for setting the fame rate
or image size (resolution), adding filenames, and
choosing color or grayscale output.
options are also available.

Importing and Analyzing Non-BioTester Images

The LabJoy software can be used to perform feature displacement tracking and strain tracking
on .jpg images using the "Import Images" function located in the File menu. To use this
feature, select the desired images using the shift/ctrl keys in the dialogue box or else select the
directory to import all of the contained images.
Once the images have been imported, the software works much the same as with BioTester-
generated images.
