Range Limits

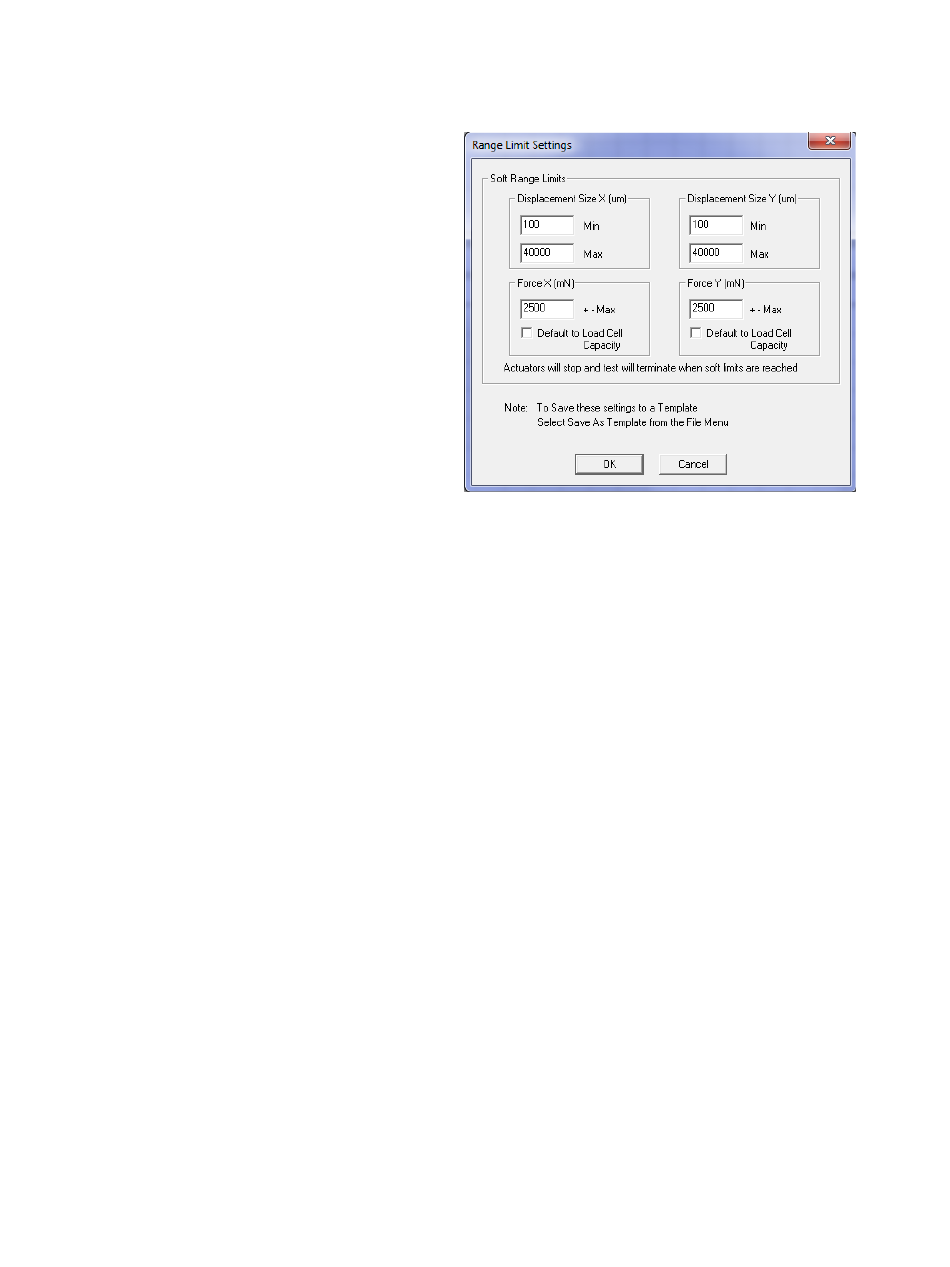

Range limits can be accessed by selecting Range Limits from the Settings menu.
Soft Limits
To avoid rake collisions or sample
destruction, it is
reasonable travel limits to the actuators.
This is especially important during force
control or preloading, where if specified
loads cannot be reached, the actuators
will keep moving until they reach the soft
limits.
Min and Max Displacement, in µm, set
the minimum and maximum positions to
which the rakes are allowed to move.
Max Force, in mN, sets the maximum
value of force at which a test will be
automatically stopped.
value is set to the capacity of the load
cells. Setting this value may be useful to
prevent sample
overloading of the load cells.
useful to assign
The default
destruction or
