Data Overlay

Data associated with each image is displayed below
the tracking controls on the left side of the main
window. Checking the Show Graph box displays this
data as a graph overlaid on the images

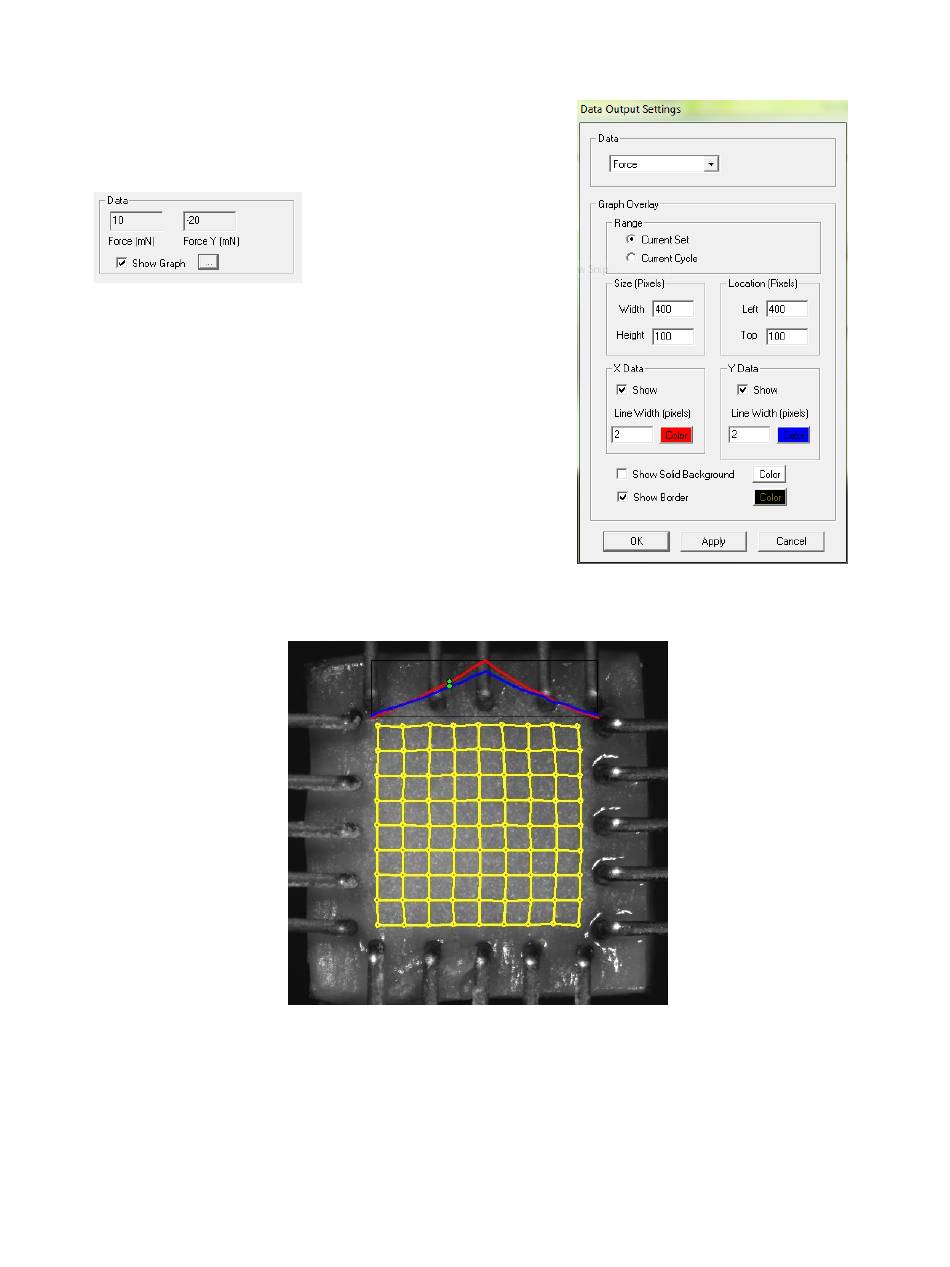

Clicking the details icon displays the window shown to
the right. The dialogue allows the user to change the
size and appearance of the overlaid graph. The data
points associated with the current image are marked on
the graph with green circles. The overlaid data graph
will be drawn on top of any image tracking displays
(when they overlap).
Data Overlay settings default to the last used settings.
Figure 6: Tracking to 20% strain with overlaid x-y force graph.
