Configuring the Live Charting Graphs

The three graphs on the right side of the
screen provide real-time user feedback during
a test. These graphs are intended to be used
for qualitative feedback, not for detailed
analysis.
The graphs are updated at a maximum
frequency of 10Hz; certain short-duration tests
may not show all the detail that is actually
present.

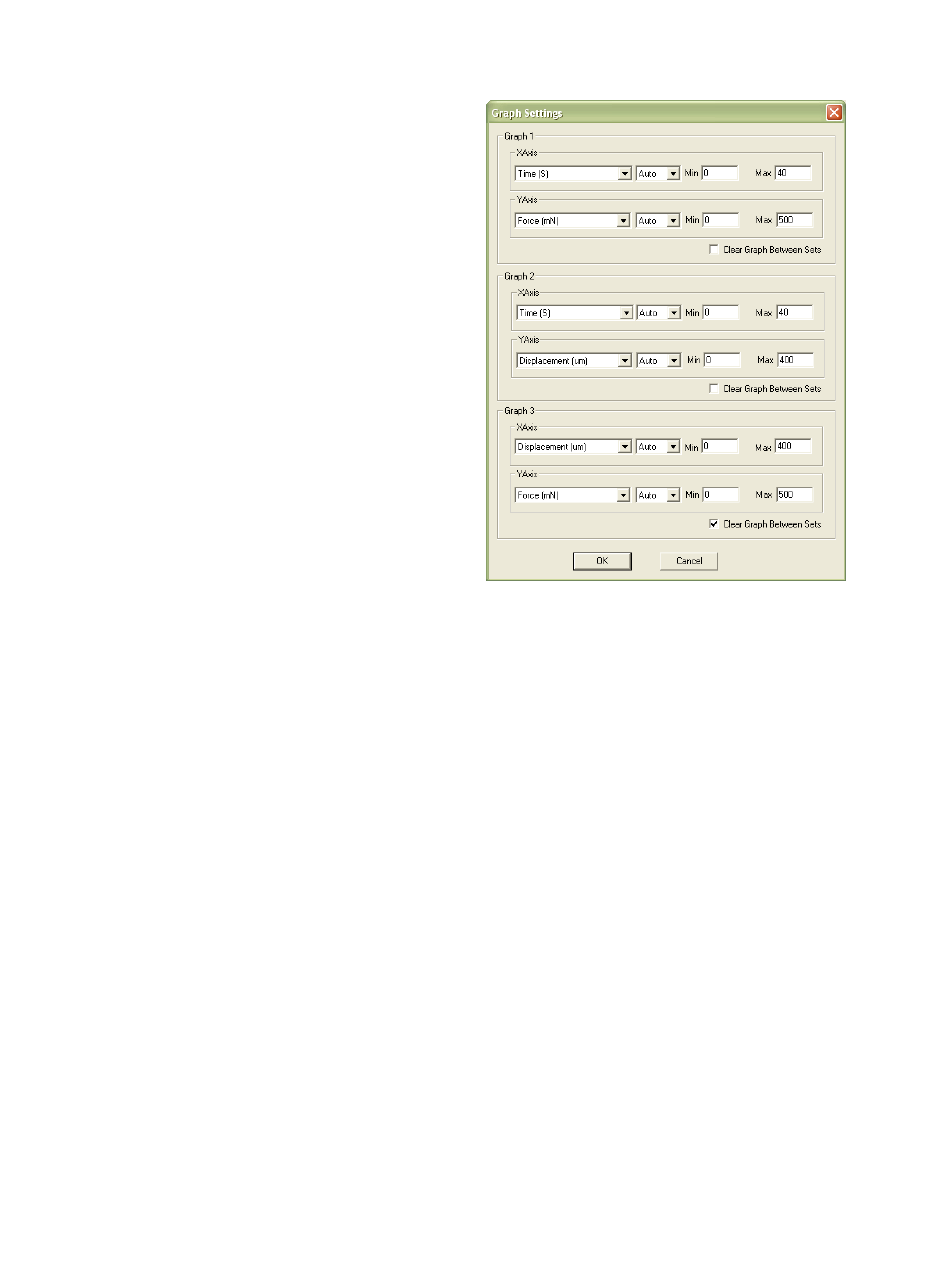

The graph settings can be specified by
selecting Graphs from the Settings menu. Auto
scaling allows the axis min and max to start at
the specified values but expand if the data
values are larger or smaller than the initial
limits.
