Image Tracking: The Points Display Option

The Points Option displays the points in their current
location (i.e. their location on the currently displayed
image) with or without gridline connecting points that
were generated using the grid function.

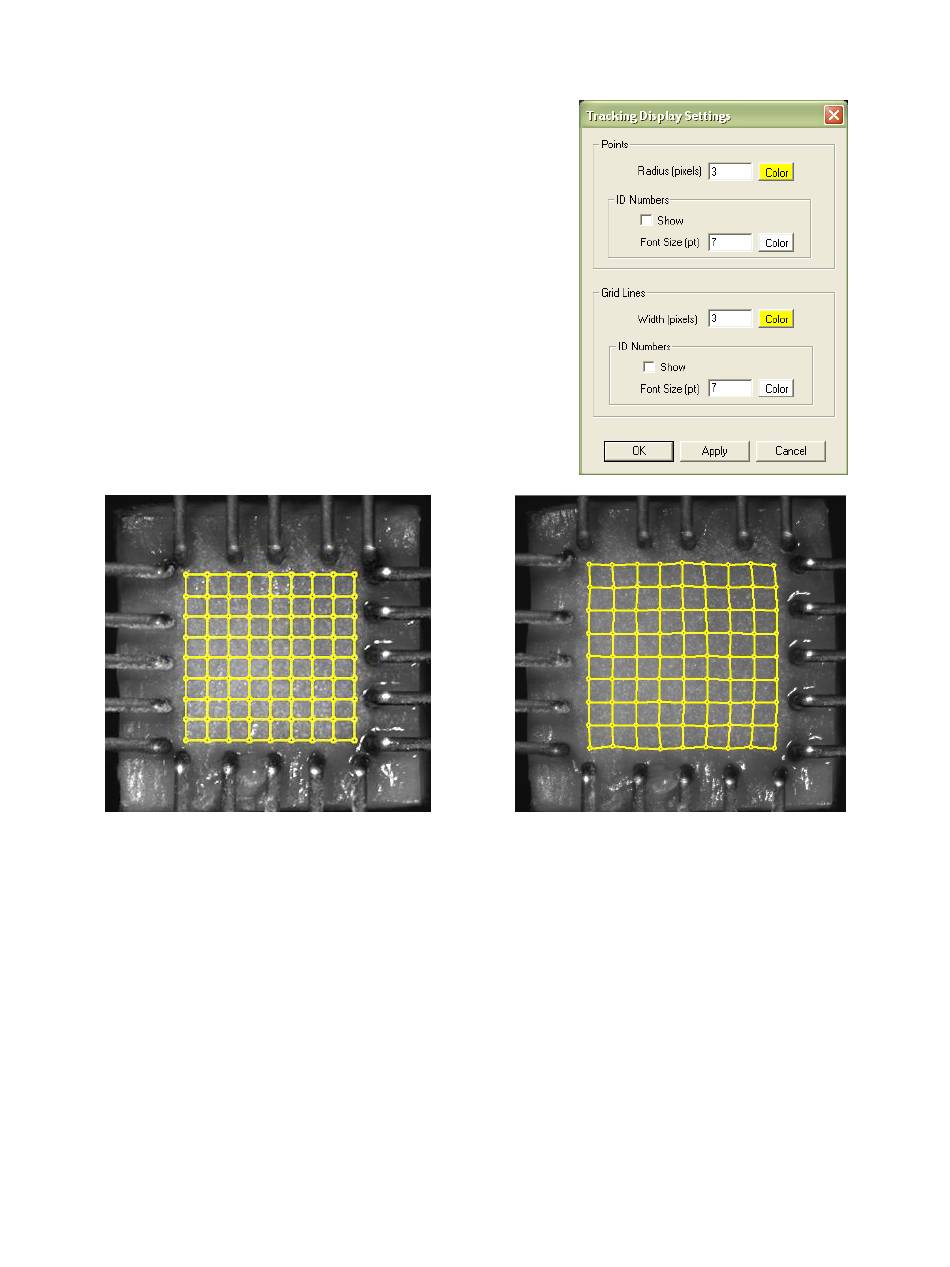

Clicking the details icon brings up the window shown
to the right. Options include changing the point radius
or color, showing ID numbers and showing gridlines
with or without ID numbers.
Gridline ID numbers are associated with each grid
square (cell), while Point ID numbers are associated
with the points themselves.
Tracking display settings default to the last used
settings.
Figure 1: Initial tracking grid displayed as
points.
BioTester User Manual
Figure 2: Tracking to 20% strain displayed as
points.
