12. Appendix C: Install Load Cells / Perform
Camera and Gooseneck Alignment
Connect the camera USB cable to a PC USB port. Connect the included USB cable to the main
unit and a PC USB port. Plug in the power supply to the BioTester and then proceed with the
following steps. Do not turn the BioTester on yet.

Attach the Load Cells to the Goosenecks

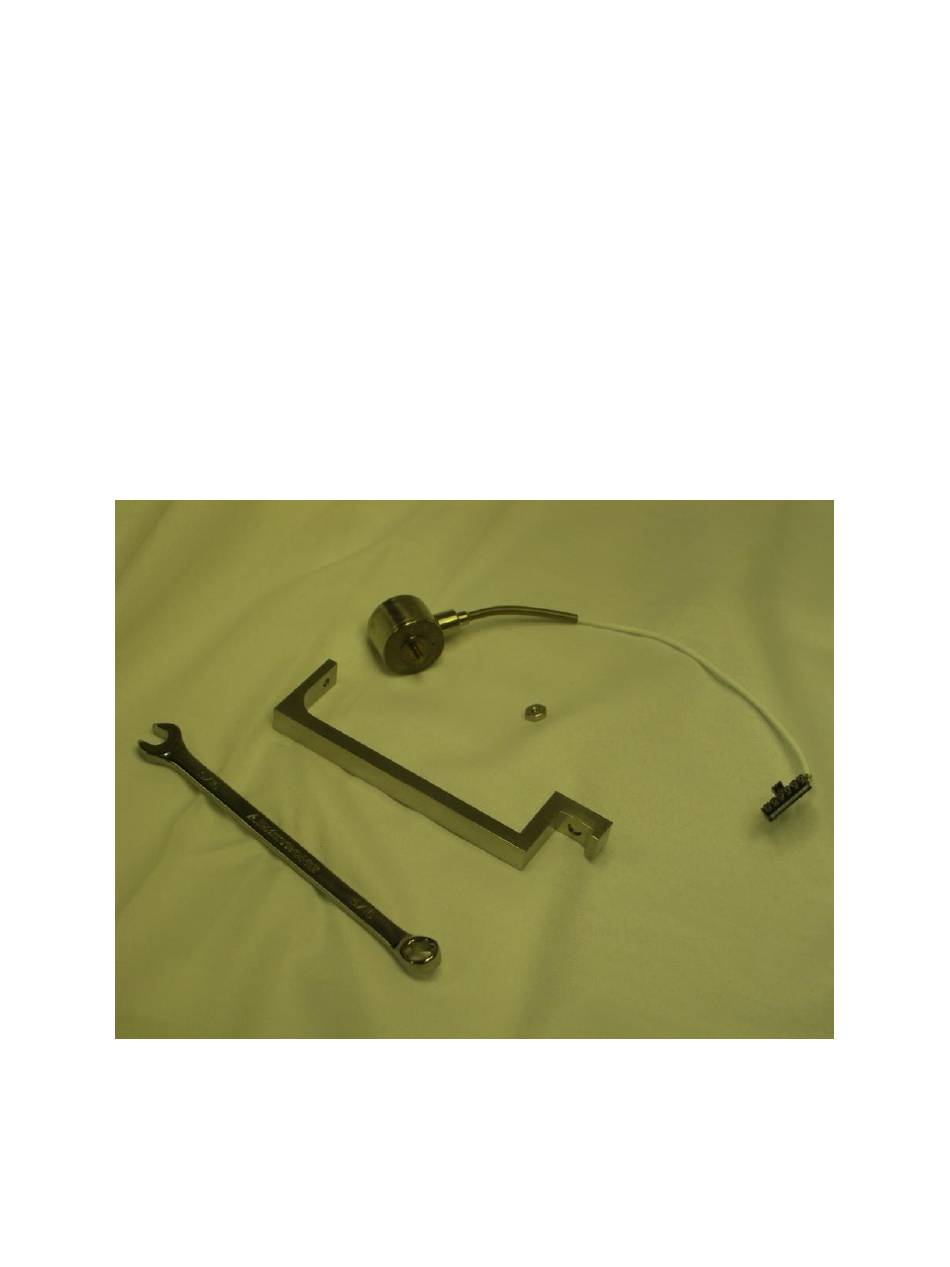

Ensure the correct orientation of the load cell components as shown in the below pictures.
Tighten the nuts gently to avoid damaging the load cells (just a little bit tighter than finger tight).
Keep in mind that the load cells are sensitive to excessive torque, excessive overload,
transverse loading, and bending forces.
