BioTester User Manual

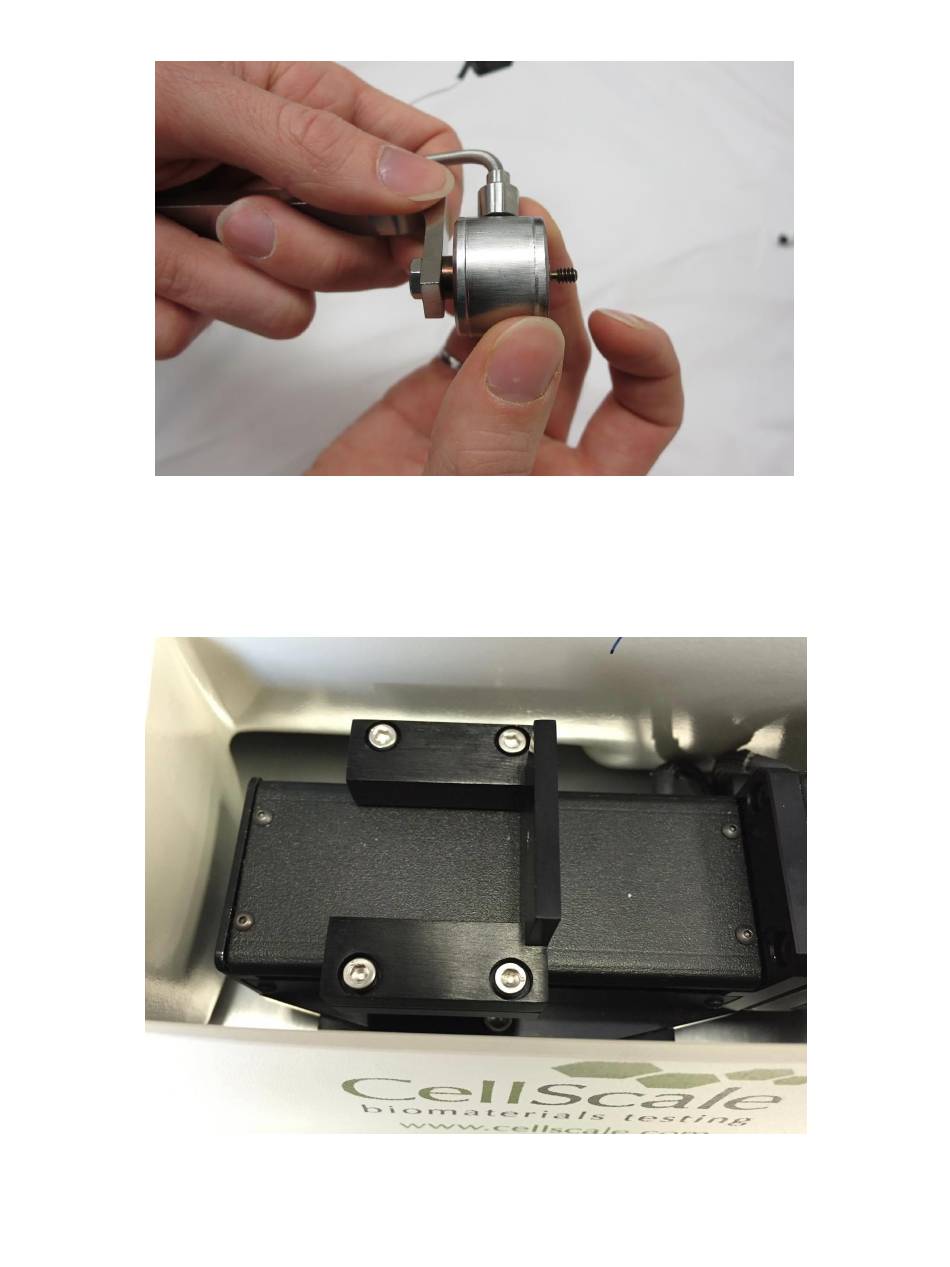

Attach the Load Cell Brackets to the Actuators
Before attaching the load cell/gooseneck assembly, install the load cell brackets onto the
appropriate actuators (these are located on either side of the camera post and will be sitting lower
in the actuator housing). Use 6-32 x ½" (x4) fasteners provided for each bracket as shown below.
61
