User Interface

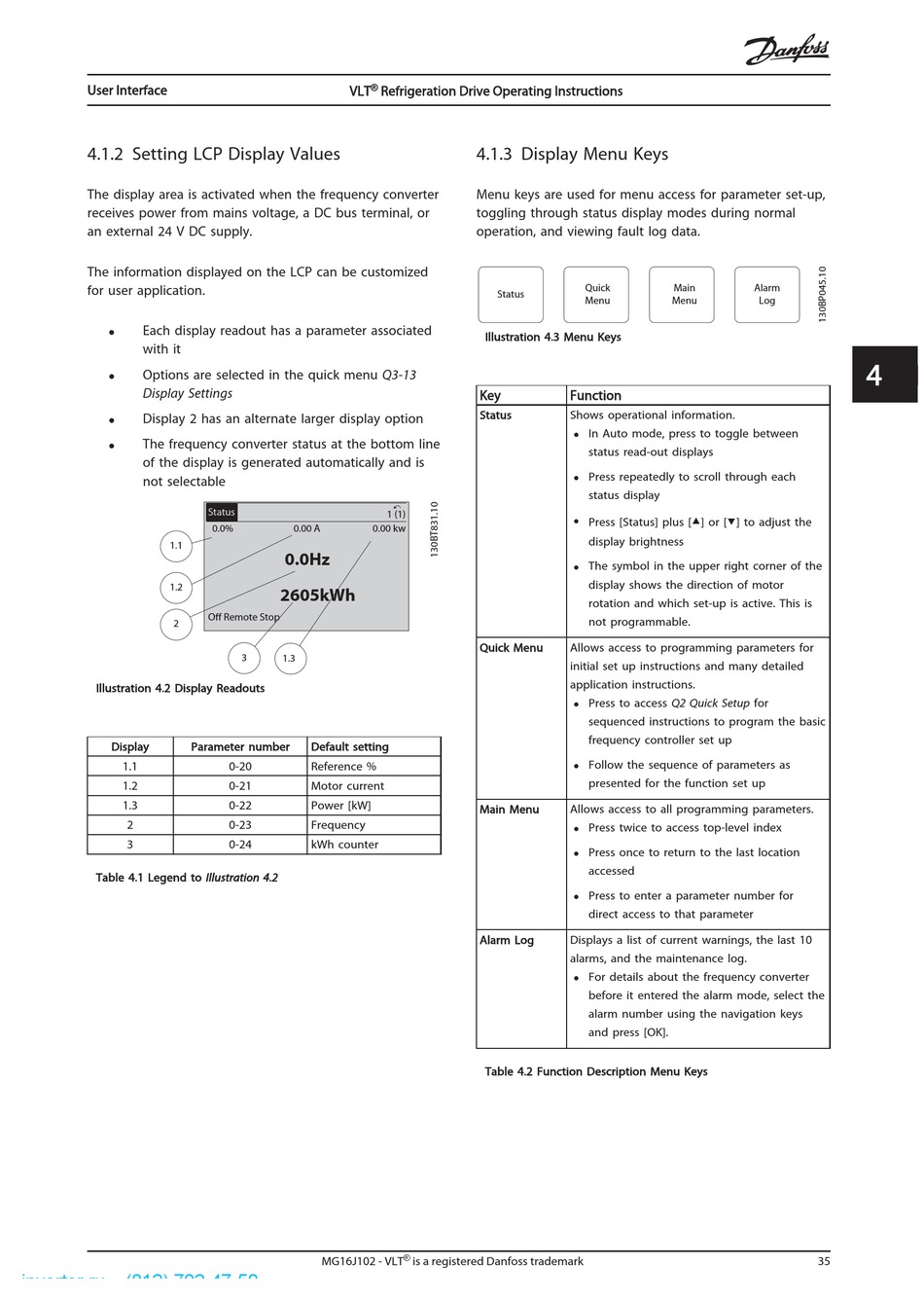

4.1.2 Setting LCP Display Values

The display area is activated when the frequency converter
receives power from mains voltage, a DC bus terminal, or
an external 24 V DC supply.
The information displayed on the LCP can be customized
for user application.
• •
Each display readout has a parameter associated
with it
•
Options are selected in the quick menu Q3-13
Display Settings
•
Display 2 has an alternate larger display option
•
The frequency converter status at the bottom line
of the display is generated automatically and is
not selectable
1.1
1.2
2
Illustration 4.2 Display Readouts
Display Parameter number
1.1
1.2
1.3
2
3
Table 4.1 Legend to Illustration 4.2
inverter.ru (812) 702-47-50
VLT Refrigeration Drive Operating Instructions
Status
0.0% 0.00 A 0.00 kw
0.0Hz
2605kWh
Off Remote Stop
3
1.3
Default setting
0-20 Reference %
0-21 Motor current
0-22 Power [kW]
0-23 Frequency
0-24 kWh counter
MG16J102 - VLT is a registered Danfoss trademark

4.1.3 Display Menu Keys

Menu keys are used for menu access for parameter set-up,
toggling through status display modes during normal
operation, and viewing fault log data.
Status
Illustration 4.3 Menu Keys
Key
Status
1 (1)
Quick Menu
Main Menu
Alarm Log
Table 4.2 Function Description Menu Keys
Quick Main
Menu Menu
Function
Shows operational information.
•
In Auto mode, press to toggle between
status read-out displays
•
Press repeatedly to scroll through each
status display
•
Press [Status] plus [ ] or [ ] to adjust the
display brightness
•
The symbol in the upper right corner of the
display shows the direction of motor
rotation and which set-up is active. This is
not programmable.
Allows access to programming parameters for
initial set up instructions and many detailed
application instructions.
•
Press to access Q2 Quick Setup for
sequenced instructions to program the basic
frequency controller set up
•
Follow the sequence of parameters as
presented for the function set up
Allows access to all programming parameters.
•
Press twice to access top-level index
•
Press once to return to the last location
accessed
•
Press to enter a parameter number for
direct access to that parameter
Displays a list of current warnings, the last 10
alarms, and the maintenance log.
•
For details about the frequency converter
before it entered the alarm mode, select the
alarm number using the navigation keys
and press [OK].
Alarm
Log
4 4
35
