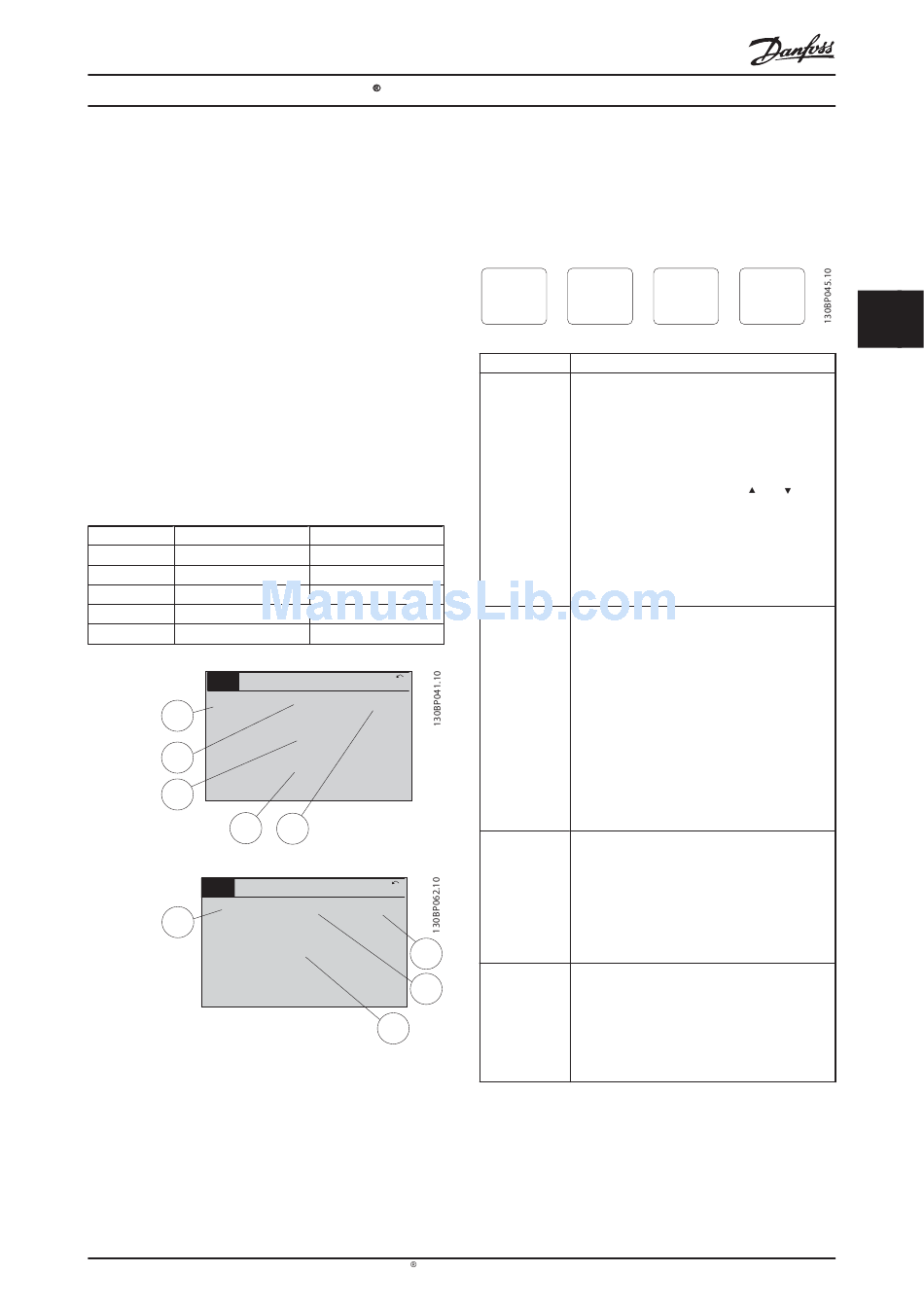

4.1.2 Setting LCP Display Values

The display area is activated when the frequency converter
receives power from mains voltage, a DC bus terminal, or an
external 24V supply.
The information displayed on the LCP can be customized for
user application.
• •
Each display readout has a parameter associated
with it.
•
Options are selected in the quick menu Q3-13
Display Settings.
•
Display 2 has an alternate larger display option.
•
The frequency converter status at the bottom line
of the display is generated automatically and is not
selectable. See 6 Status Indication for definitions
and details.
Display
1.1
1.2
1.3
2
3
1.1
1.2
2
1.1
inverter.ru (812) 702-47-50
VLT Decentral Drive FCD 302 Operating Instructions
Parameter number Default setting
0-20 Motor RPMs
0-21 Motor current
0-22 Motor power (kW)
0-23 Motor frequency
0-24 Reference in percent
Status
799 RPM 7.83 A
0.000
53.2 %
Auto Remote Ramping
3 1.3
Status
207RPM 5.25A
6.9
Hz
Auto Remote Running
MG.04.F2.02 - VLT is a registered Danfoss trademark

4.1.3 Display Menu Keys

Menu keys are used for menu access for parameter set-up,
toggling through status display modes during normal
operation, and viewing fault log data.
Status
Key
Status
Quick Menu
1 (1)
36.4 kw
Main Menu
1 (1)
24.4 kW
1.3
Alarm Log
1.2
2
Quick Main
Menu Menu
Function
Press to show operational information.
•
In Auto mode, press and hold to toggle
between status read-out displays
•
Press repeatedly to scroll through each status
display
•
Press and hold [Status] plus [ ] or [ ] to
adjust the display brightness
•
The symbol in the upper right corner of the
display shows the direction of motor rotation
and which set-up is active. This is not
programmable.
Allows access to programming parameters for
initial set up instructions and many detailed
application instructions.
•
Press to access Q2 Quick Setup for sequenced
instructions to program the basic frequency
controller set up
•
Press to access Q3 Function Setups for
sequenced instructions to program
applications
•
Follow the sequence of parameters as
presented for the function set up
Allows access to all programming parameters.
•
Press twice to access top-level index
•
Press once to return to the last location
accessed
•
Press and hold to enter a parameter number
for direct access to that parameter
Displays a list of current warnings, the last 10
alarms, and the maintenance log.
•
For details about the frequency converter
before it entered the alarm mode, select the
alarm number using the navigation keys and
press [OK].
Alarm
Log
4 4
29
