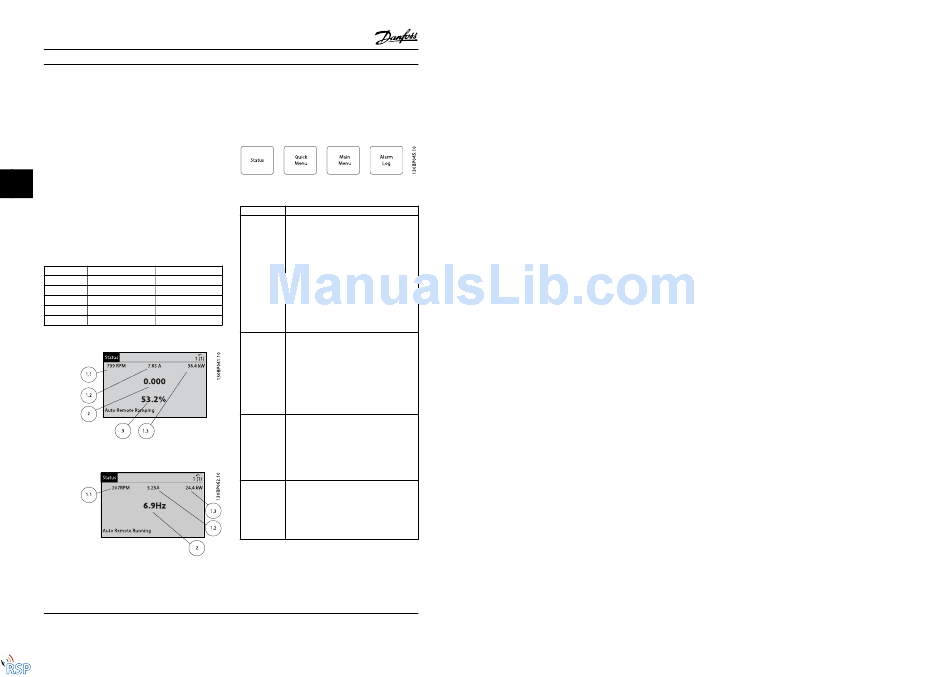

4.1.2 Setting LCP Display Values

The display area is activated when the frequency converter
receives power from mains voltage, a DC bus terminal, or
an external 24 V supply.
The information displayed on the LCP can be customized
for user application.
•
Each display readout has a parameter associated
4 4
with it.
•
Options are selected in the quick menu Q3-13
Display Settings.
•
Display 2 has an alternate larger display option.
•
The frequency converter status at the bottom line
of the display is generated automatically and is
not selectable.

Display

Parameter number Default setting
1.1 0-20 Motor RPMs
1.2 0-21 Motor current
1.3 0-22 Motor power (kW)
2 0-23 Motor frequency
3 0-24 Reference in percent
Table 4.1
Figure 4.2
Figure 4.3
4-2 MG21E122 - VLT® is a registered Danfoss trademark
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
http://www.remotesiteproducts.com/p-20776-Danfoss-131X8139-VLT-Automation-VT-Drive-VFD-FC322-230V-20-HP.aspx
4.1.3 Display
Menu keys are used for menu access for parameter set-up,
toggling through status display modes during normal
operation, and viewing fault log data.
Figure 4.4
Key Function
Status Shows operational information.
•
In Auto mode, press to toggle between
status read-out displays
•
Press repeatedly to scroll through each
status display
▲ ▼
•
Press [Status] plus [ ] or [ ] to adjust the
display brightness
•
The symbol in the upper right corner of the
display shows the direction of motor
rotation and which set-up is active. This is
not programmable.
Quick Menu Allows access to programming parameters for
initial set up instructions and many detailed
application instructions.
•
Press to access Q2 Quick Setup for
sequenced instructions to program the basic
frequency controller set up
•
Follow the sequence of parameters as
presented for the function set up
Main Menu Allows access to all programming parameters.
•
Press twice to access top-level index
•
Press once to return to the last location
accessed
•
Press to enter a parameter number for
direct access to that parameter
Alarm Log Displays a list of current warnings, the last 10
alarms, and the maintenance log.
•
For details about the frequency converter
before it entered the alarm mode, select the
alarm number using the navigation keys
and press [OK].
Table 4.2
