Introduction

1 Introduction
18

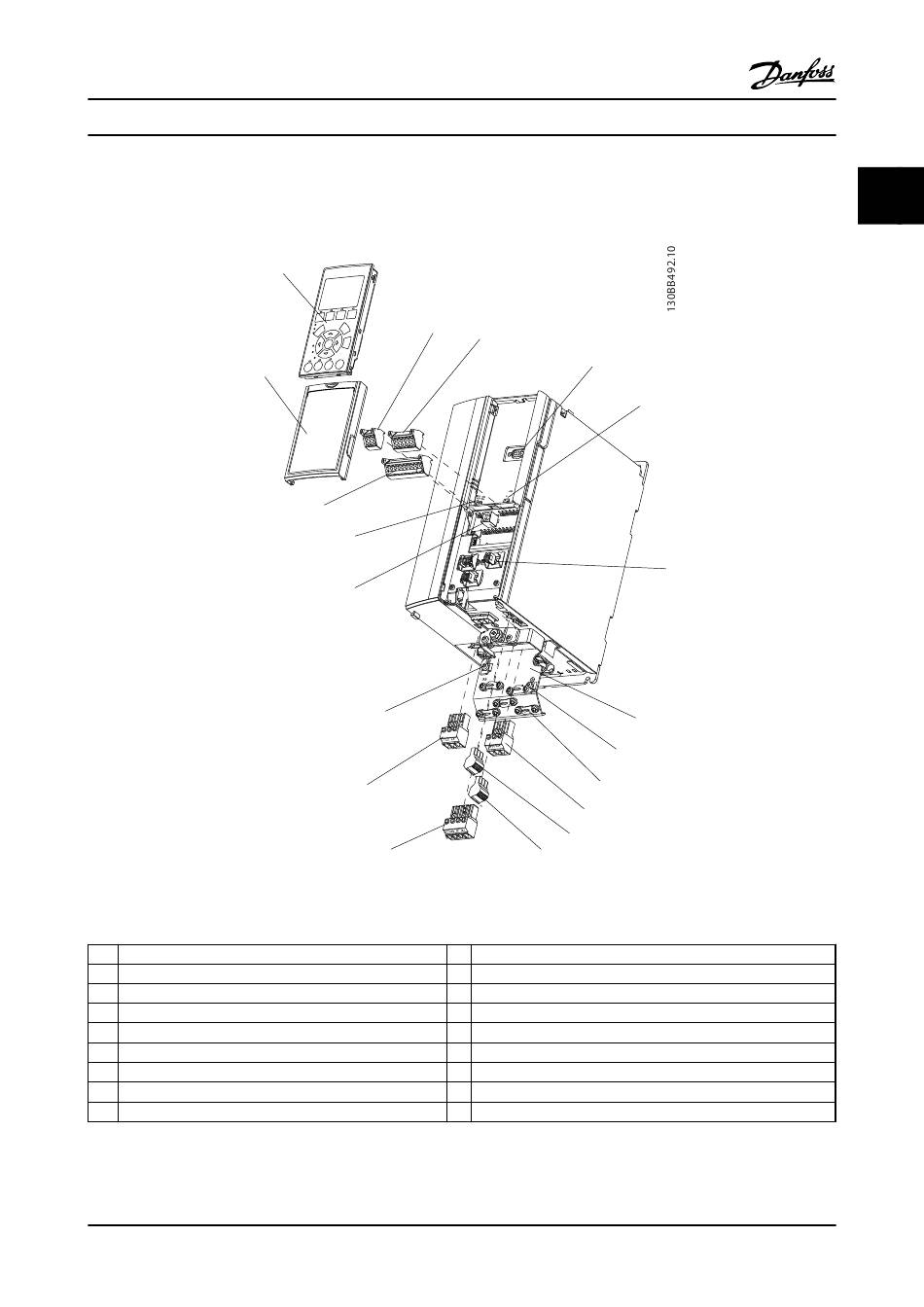

Figure 1.1 Exploded View A1-A3, IP20
1 LCP
2 RS-485 serial bus connector (+68, -69)
3 Analog I/O connector
4 LCP input plug
5 Analog switches (A53), (A54)
6 Cable strain relief / PE ground
7 Decoupling plate
8 Grounding clamp (PE)
9 Shielded cable grounding clamp and strain relief
VLT ® AutomationDrive Instruction
Manual
1
2
17
16
15
8
14
13
®
MG.33.AI.22 - VLT is a registered Danfoss trademark
3
4
9
10
11
12
10 Motor output terminals 96 (U), 97 (V), 98 (W)
11 Relay 1 (01, 02, 03)
12 Relay 2 (04, 05, 06)
13 Brake (-81, +82) and load sharing (-88, +89) terminals
14 Line power input terminals 91 (L1), 92 (L2), 93 (L3)
15 USB connector
16 Serial bus terminal switch
17 Digital I/O and 24 V power supply
18 Control cable coverplate
5
6
7
8
1 1
1-1
