Analog I/O

Admin users can set up AI-1 to AI-4, thermistor inputs (TI) TI-1 and TI-2, analog outputs (AO) AO-1 to AO-4 and map analog inputs to
the corresponding analog outputs.
See Table 4 for more information on which parameter can be configured to which analog input or thermistor. Refer to the FMS-2000C
Critical Environment Controller Installation Guide for more information.

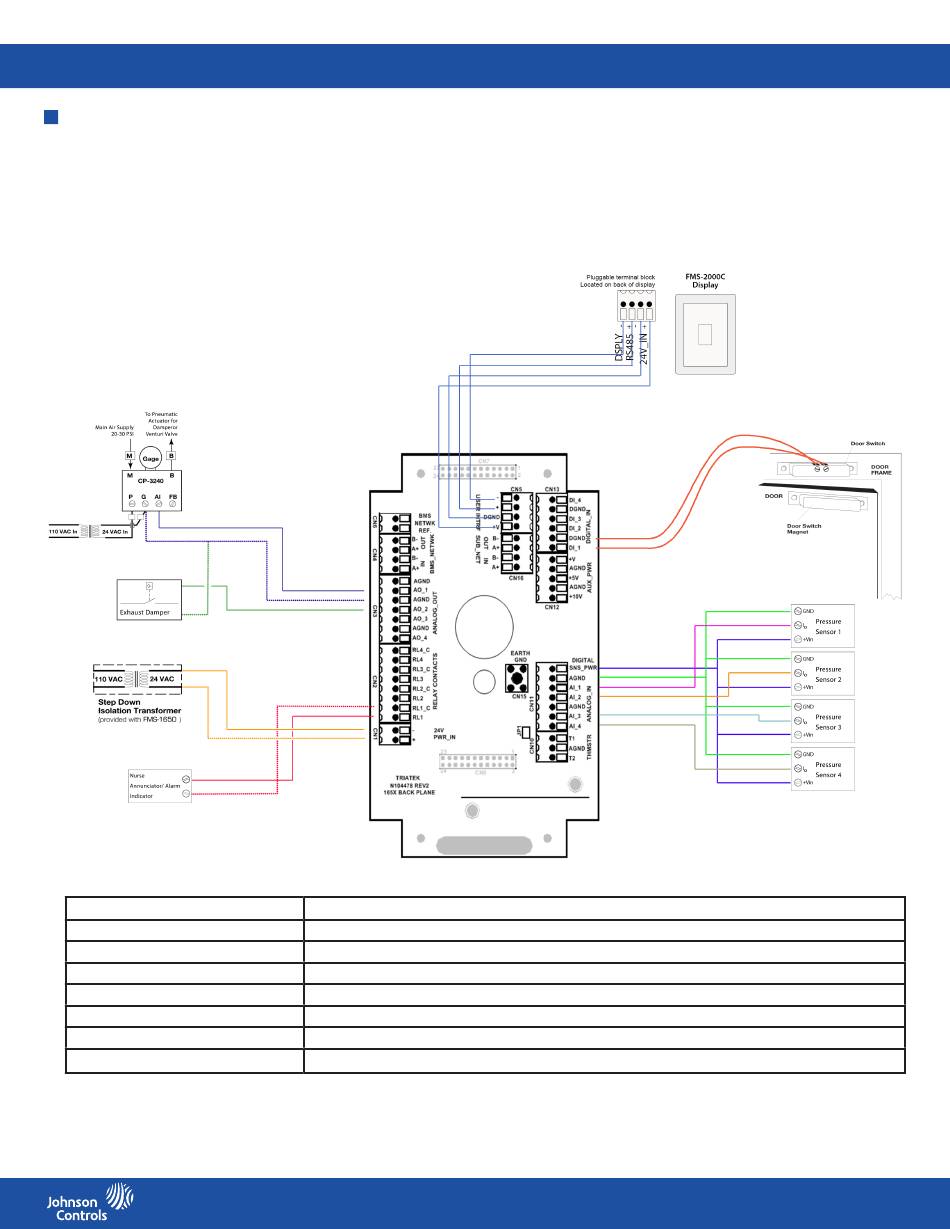

Figure 7: Wiring diagram
Table 4: Parameter configurations
Parameter
Pressure
Temperature
Thermostat
Humidity
Volumetric flow and air changes
Volumetric offset
CO
2
AI-1, AI-2, AI-3, AI-4
AI-2, AI-3, AI-4 and TI-1, TI-2
AI-2
AI-2, AI-3, AI-4
AI-2, AI-3, AI-4
AI-3 and AI-4 when they are both configured for flow
AI-3 and AI-4
22
Analog input or thermistor
LIT-12013504
