Annex

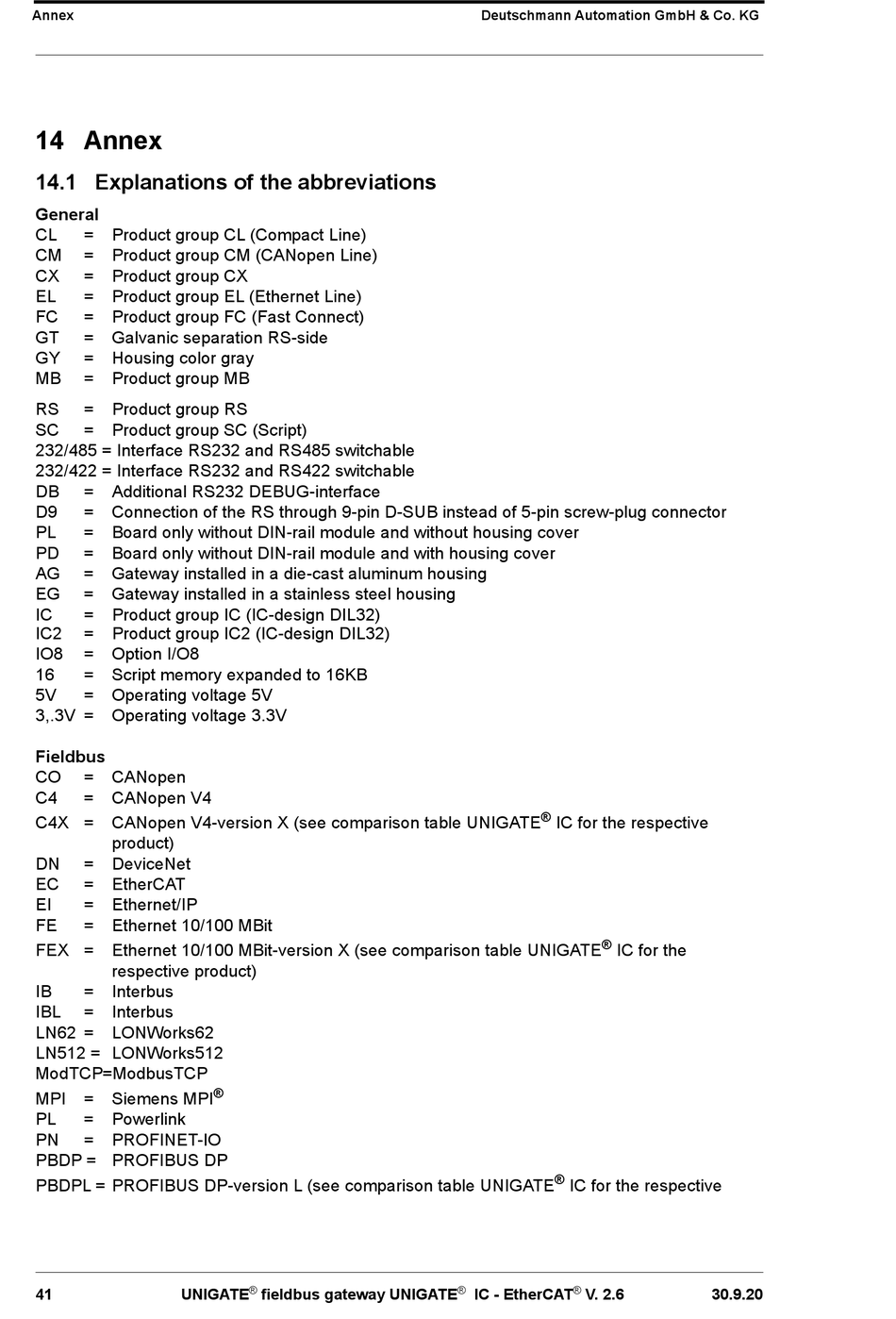

14 Annex
14.1 Explanations of the abbreviations
General
CL
= Product group CL (Compact Line)
CM
= Product group CM (CANopen Line)
CX
= Product group CX
EL
= Product group EL (Ethernet Line)
FC
= Product group FC (Fast Connect)
GT
=
Galvanic separation RS-side
GY
= Housing color gray
MB
= Product group MB
RS
=
Product group RS
SC
=
Product group SC (Script)
232/485 = Interface RS232 and RS485 switchable
232/422 = Interface RS232 and RS422 switchable
DB
= Additional RS232 DEBUG-interface
D9
= Connection of the RS through 9-pin D-SUB instead of 5-pin screw-plug connector
PL
= Board only without DIN-rail module and without housing cover
PD
= Board only without DIN-rail module and with housing cover
AG
= Gateway installed in a die-cast aluminum housing
EG
= Gateway installed in a stainless steel housing
IC
=
Product group IC (IC-design DIL32)
IC2
=
Product group IC2 (IC-design DIL32)
IO8
= Option I/O8
16
= Script memory expanded to 16KB
5V
= Operating voltage 5V
3,.3V = Operating voltage 3.3V
Fieldbus
CO
= CANopen
C4
=
CANopen V4
C4X =
CANopen V4-version X (see comparison table UNIGATE
product)
DN
= DeviceNet
EC
= EtherCAT
EI
= Ethernet/IP
FE
= Ethernet 10/100 MBit
FEX = Ethernet 10/100 MBit-version X (see comparison table UNIGATE
respective product)
IB
= Interbus
IBL
= Interbus
LN62 = LONWorks62
LN512 = LONWorks512
ModTCP=ModbusTCP
MPI
= Siemens MPI
PL
= Powerlink
PN
= PROFINET-IO
PBDP = PROFIBUS DP
PBDPL = PROFIBUS DP-version L (see comparison table UNIGATE
41
UNIGATE
®
®
fieldbus gateway UNIGATE
Deutschmann Automation GmbH & Co. KG
®
IC for the respective
®
IC for the
®
IC for the respective
®
®
IC - EtherCAT
V. 2.6
30.9.20
