Deutschmann Automation GmbH & Co. KG

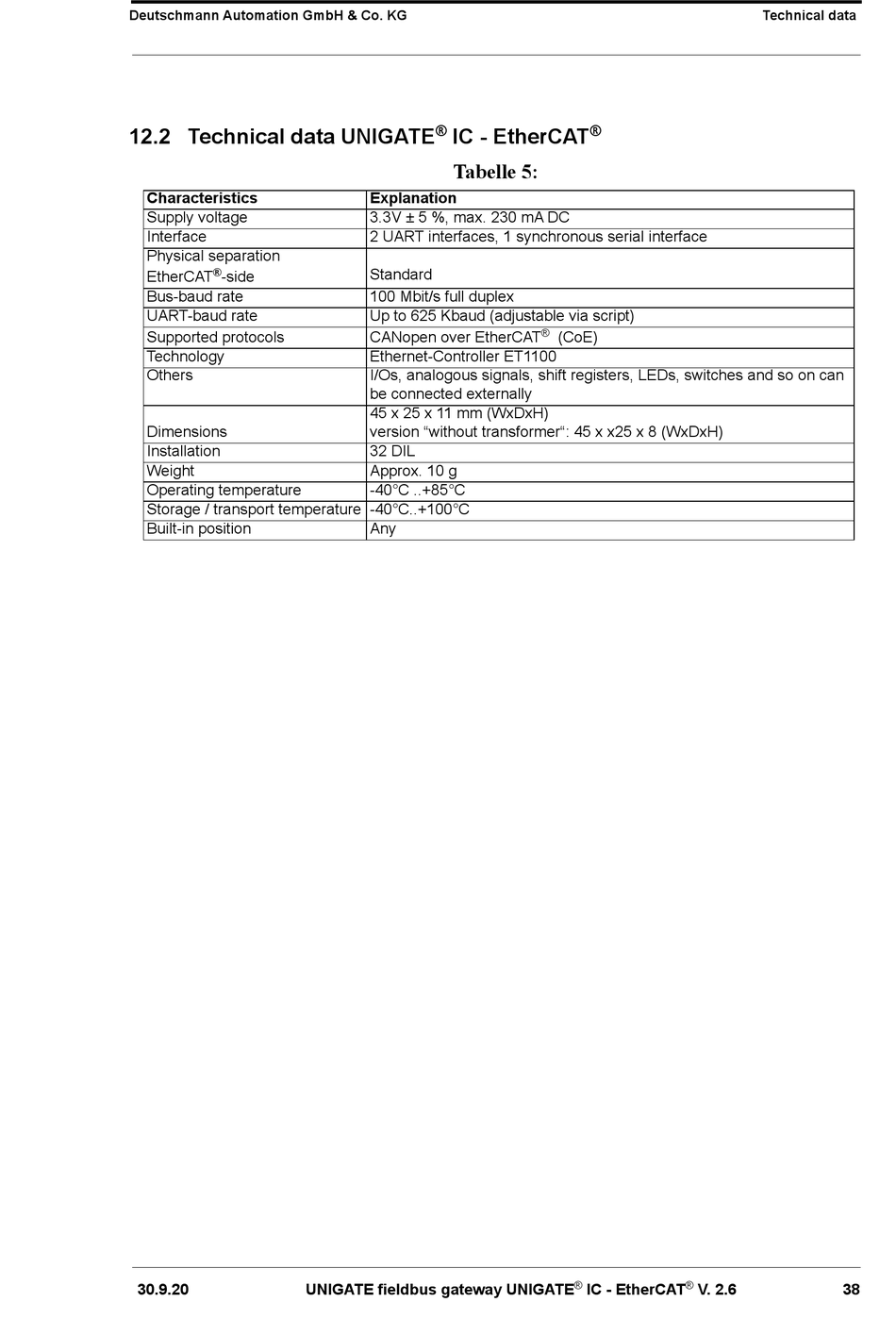

12.2 Technical data UNIGATE

Characteristics
Supply voltage
Interface
Physical separation
®
EtherCAT -side
Bus-baud rate
UART-baud rate
Supported protocols
Technology
Others
Dimensions
Installation
Weight
Operating temperature
Storage / transport temperature -40°C..+100°C
Built-in position
30.9.20
®
IC - Ether
Tabelle 5:
Explanation
3.3V ± 5 %, max. 230 mA DC
2 UART interfaces, 1 synchronous serial interface
Standard
100 Mbit/s full duplex
Up to 625 Kbaud (adjustable via script)
CANopen over EtherCAT
Ethernet-Controller ET1100
I/Os, analogous signals, shift registers, LEDs, switches and so on can
be connected externally
45 x 25 x 11 mm (WxDxH)
version "without transformer": 45 x x25 x 8 (WxDxH)
32 DIL
Approx. 10 g
-40°C ..+85°C
Any
UNIGATE fieldbus gateway UNIGATE
®
CAT
®
(CoE)
® ®
IC - EtherCAT V. 2.6
Technical data
38
