Technical data

Deutschmann Automation GmbH & Co. KG

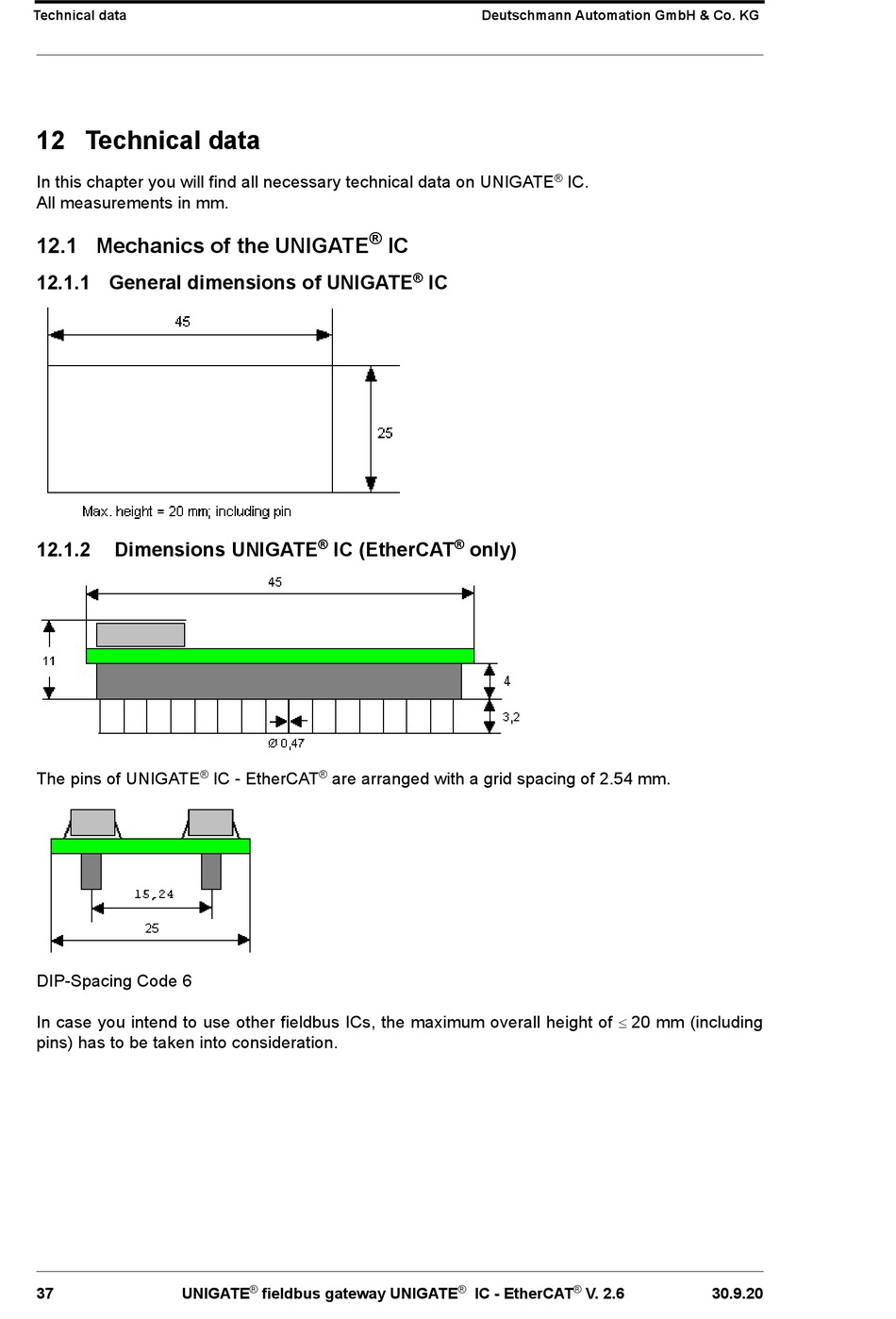

12 Technical data
In this chapter you will find all necessary technical data on UNIGATE ® IC.
All measurements in mm.
®
12.1 Mechanics of the UNIGATE IC
®
12.1.1 General dimensions of UNIGATE IC
® ®
12.1.2 Dimensions UNIGATE IC (EtherCAT only)
The pins of UNIGATE ® IC - EtherCAT ® are arranged with a grid spacing of 2.54 mm.
DIP-Spacing Code 6

In case you intend to use other fieldbus ICs, the maximum overall height of  20 mm (including
pins) has to be taken into consideration.
® ® ®
37 UNIGATE fieldbus gateway UNIGATE IC - EtherCAT V. 2.6 30.9.20
