3.1 Creating a Data File (DR - EXPLORER - NEW) (cont.)
Note: If you are measuring ribbed tubes and recording in a Boiler file, you can automatically insert "OBST" into a designated series of C
(center) positions. Set up the file with the "Points on Tube" option set to "L, C, R" (left, center, right). At a specific center (c) data
location, press F3 (OBST). A screen appears similar to Figure 23 below. Enter the end tube number for the last center location to
contain OBST. The DMS Go then inserts OBST into the designated center locations. The user may then attach a "RIBBED"
comment to all obstructed positions
.
DMS Go Operator's Manual
Your Complete Source for
Testing Equipment. Since 1969!

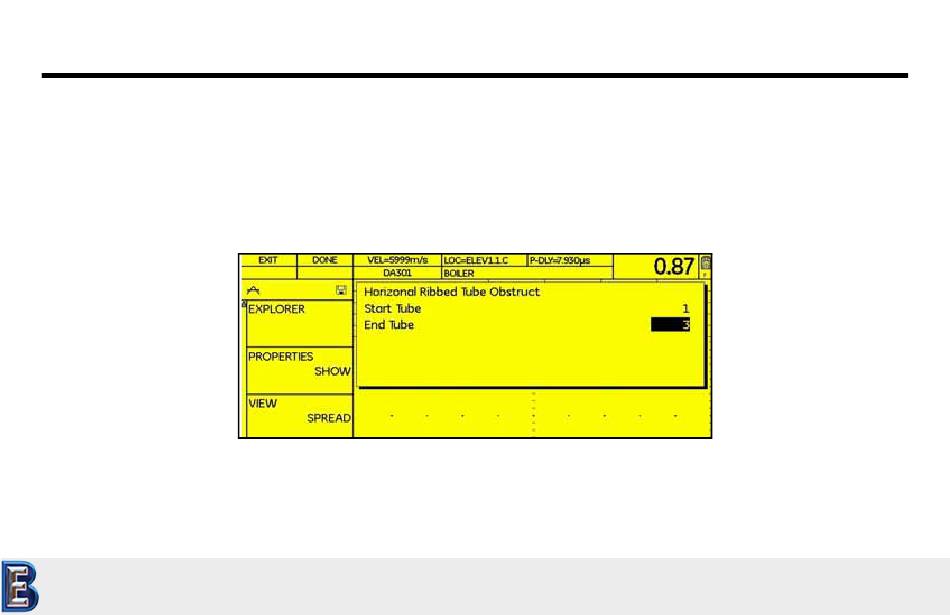

Figure 23: OBST Setup Option
www.BergEng.com
Berg Engineering & Sales Company, Inc.
Chapter 3. Creating Data Recorder Files
