Flashforge Creator 3 User Manual page 21

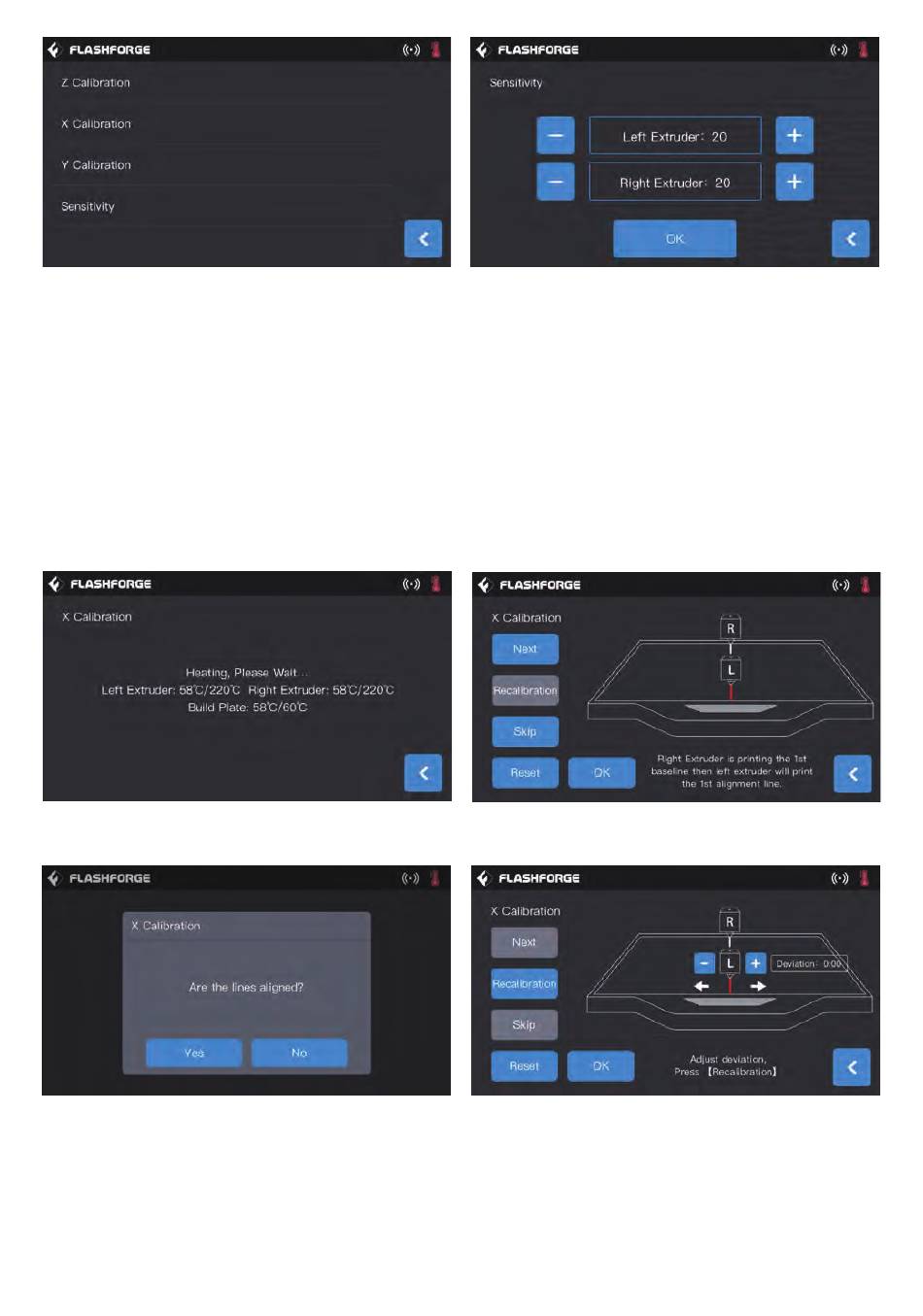

Click[Setting]-[Calibration]-[Sensitivity]
· The value should be adjusted to a larger value greatly if the piezoelectric plate is too sensitive.
· The value should be adjusted to a smaller value if the piezoelectric plate is not sensitive.
· Normal values are recommended at 20-25.
· When z-axis stops in the middle or stops without touching with the nozzle during printing, the corresponding nozzle
sensitivity value should be increased.
· When the platform is still moving upward after contacting with the nozzle, the corresponding nozzle sensitivity value
should be reduced.
[X axis calibration]
By comparing if printing lines of two extruders coincide in the direction of X axis to judge if two extruders in the same
X-axis.
1. Tap[X axis calibration],wait for two extruders heating up to the target temperature, two extruders print one line in
turns. After printing completed,check if two lines coincide; In the meanwhile, a confirmation notice pops up.
2. When the two lines do not coincide, click the next step, and there will be a prompt pop-up operation, and the nozzle
will adjust the deviation to the left or right.
· Next step: shows judge next prompt operation and operate.
· Recalibration: The left and the right nozzle reprints one straight line respectively.
· Skip: The user knows that the two lines do not coincide, so there is no need to do the next prompt operation, so he can
directly click "skip" to adjust the value deviation setting.
· Confirm: Save adjustive deviation value.
· Back: Exit the calibration page directly without saving the data in the face of the current operation.
20
