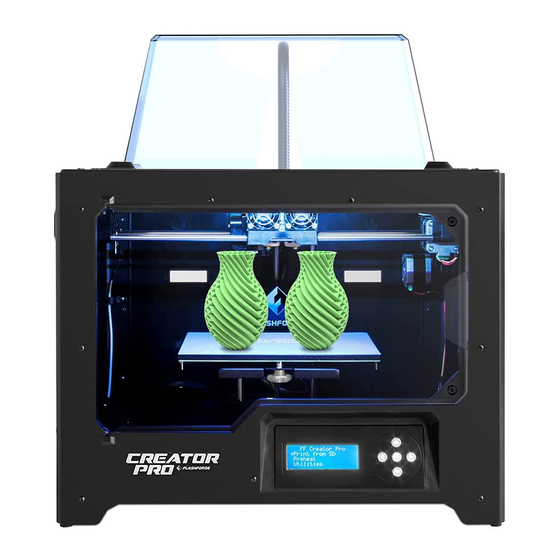

Creator Pro
1. Do not remove the wrapping around the nozzle.
Caution
2. If print with PLA filament, please remove the lid and open the front door to ventilate for a better printing performance.
1. High Temperature! Plate may have been heated before; make sure it has cooled down before inner operation.
Warning
2. Loose clothes, jewelry and long hair can be caught in moving parts. Please keep away from them.
User Guide
The User Guide is in SD card.
This guide only applies to Creator Pro 3D printer of Flashforge
Quick Start Guide
SZ10-EN-002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Creator Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Flashforge Creator Pro

Summary of Contents for Flashforge Creator Pro

  • Page 1 1. High Temperature! Plate may have been heated before; make sure it has cooled down before inner operation. Warning 2. Loose clothes, jewelry and long hair can be caught in moving parts. Please keep away from them. User Guide The User Guide is in SD card. This guide only applies to Creator Pro 3D printer of Flashforge...

  • Page 2: Kit Contents

    Kit Contents 3D Printer Filament Spool X 2 Power Cable USB Cable CAUTION 注意 1.Extruder hot during operation. 使用过程中喷头会发热。 Do Not Touch 请勿触摸 2.Heating plate hot during operation. Allow surface to cool before servicing. 使用过程中加热平台会发热，待平台表面冷却后再操作。 Spool Holder X 2 Build Tape X 2 SD Card Filament Guide Tube X 2 Quick Start Guide...
  • Page 3 Getting to Know Your Creator Pro Extruder 17. Filament Guide Tube Buckle 1. Z-Axis Guide Rod 9. LCD Panel 18. Spool Holder 2. Extruder Cable Bunch 10. Buttons 11. Cooling Fan 3. Slot 19. Power Switch 12. Spring Presser 20. Power Input 4.
  • Page 4 3. Firmly grasp the two side handles of foam sheet out. filament guide tubes, one piece of build Flashforge Creator Pro. Lift it out from the tape, one piece of Flashforge leveling carton and place it on a stable surface.
  • Page 5 7. Take the accessory foam container out, within which are lying a power cable, 8. Slide the X-axis Rods to the very back. a USB cable, two spool holders, a SD card, a tool bag and a extruder’s accessory kit. 9.
  • Page 6 13. Take the bottom protective foam from 14. Congratulations! You’ve finished the 12. Elevate the build plate to its limit. the printer. unpacking process. (Tip: Save your  Flashforge Creator Pro packaging for  future transportation and storage. ) Installation and Dismantlement Relief Angle Anterior Angle 1.

  • Page 7: Hardware Assembly

    Hardware Assembly Bolt Hole Bolt Hole Bolt Hole Bolt Hole Extruder Assembly (1) Place the dual extruder on the extruder seat. (As shown in the left picture) (2) Take the M2.5 Allen Wrench from the tool bag and two M3*8 bolts(longer ones) from the extruder’s accessory kit. (3) Adjust the extruder location to align the bolt holes.
  • Page 8 Turbofan Baffle Assembly (1) Use the M2.5 Allen Wrench to remove two turbofan bolts. (As shown in the picture above) (2) Take the turbofan baffle from the extruder’s accessory kit. (3) Install the turbofan baffle to the turbofan. (As shown in the top-right picture) Caution: During installation, please take care of the turbofan cable.
  • Page 9 Turbofan Seat (1) Place the turbofan sub-assembly besides the turbofan seat. (2) Insert the bump on the turbofan seat to the turbofan sub-assembly. (3) Screw the two bolts in. (4) Take a M3*6 bolt from the extruder’s assembly kit and complete installation according to the instruction below. Align the bump on the turbofan seat to the hole in turbofan...
  • Page 10 Filament Guide Tube and Filament Installation (1) To install a spool holder, level it and insert the end into the corresponding opening. (2) Turn down the spool holder to make the holder bottom cleave to the printer back. (3) Take a roll of ABS filament, then squeeze the spool holder top and mount the filament spool to the holder.
  • Page 11 Tips The filament spool should unwind in the right direction. (As shown below) The filament guide tube should be appropriately used for stable printing and printer protection. The test Gcode file requires ABS filament for printing.

  • Page 12: Leveling Build Plate

    Leveling Build Plate FF Creator Pro SD Card Input Print from SD Exit Menu Preheat Utilities PlateLeveling.x3g type Exit Menu (1) Attach the power supply, plug the power cord into an electrical outlet and turn on the printer. (2) Insert the SD card into the slot. Select [Print from SD] and press [OK].
  • Page 13 How to level the build plate (1) Tighten the three leveling knobs under the build platform until you cannot tighten them any more. (2) Select the PlateLeveling.x3g on the control panel, and press [OK] to start leveling. Then press [OK] for page-turning to read the leveling instructions. (3) The build plate and the nozzle start moving, once they suspend, you need to adjust the corresponding knob under the right nozzle.

  • Page 14: Loading Filament

    Loading Filament FF Creator Pro Unload right (1) Select [Utilities] and press [OK]. Then select [Filament Loading] and Print from SD Load right press [OK] to enter the filament loading/unloading page. Preheat Unload left Utilities Load left (2) Select [Load Right] or [Load Left] according to your requirement, and the press [OK].

  • Page 15: First Print

    2. Load the filament for a while to extrude the melted filament out of the extruder that you printed last time. 3. Do not leave the Creator Pro unattended during operation. 4. If needed, gently use the scraper to remove the object from build plate to avoid damaging the objects and build plate. If desired, heat the build plate to 40~50℃to separate the object from the build plate.
  • Page 16 For your better operation, please read the User Guide carefully.
