5. Software Control - Lightware Device Controller

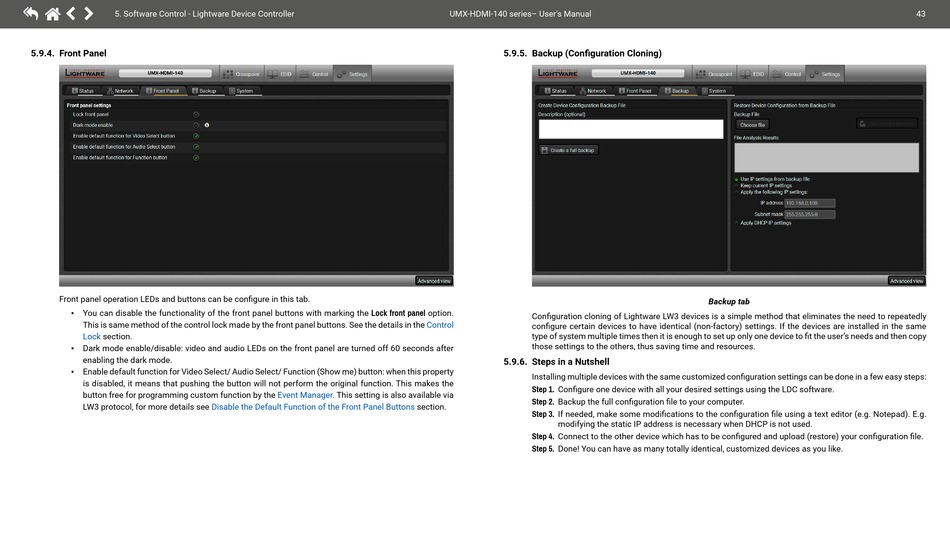

5.9.4. Front Panel
Front panel operation LEDs and buttons can be configure in this tab.
▪ You can disable the functionality of the front panel buttons with marking the Lock front panel option.
This is same method of the control lock made by the front panel buttons. See the details in the
Lock section.
▪ Dark mode enable/disable: video and audio LEDs on the front panel are turned off 60 seconds after
enabling the dark mode.
Enable default function for Video Select/ Audio Select/ Function (Show me) button: when this property
▪
is disabled, it means that pushing the button will not perform the original function. This makes the
button free for programming custom function by the
LW3 protocol, for more details see
Event Manager. This setting is also available via
Disable the Default Function of the Front Panel Buttons
UMX-HDMI-140 series– User's Manual
5.9.5. Backup (Configuration Cloning)
Configuration cloning of Lightware LW3 devices is a simple method that eliminates the need to repeatedly
Control
configure certain devices to have identical (non-factory) settings. If the devices are installed in the same
type of system multiple times then it is enough to set up only one device to fit the user's needs and then copy
those settings to the others, thus saving time and resources.
5.9.6. Steps in a Nutshell
Installing multiple devices with the same customized configuration settings can be done in a few easy steps:
Step 1. Configure one device with all your desired settings using the LDC software.
Step 2. Backup the full configuration file to your computer.
section.
Step 3. If needed, make some modifications to the configuration file using a text editor (e.g. Notepad). E.g.
modifying the static IP address is necessary when DHCP is not used.
Step 4. Connect to the other device which has to be configured and upload (restore) your configuration file.
Step 5. Done! You can have as many totally identical, customized devices as you like.
Backup tab
43
