6. LW2 Programmer's Reference

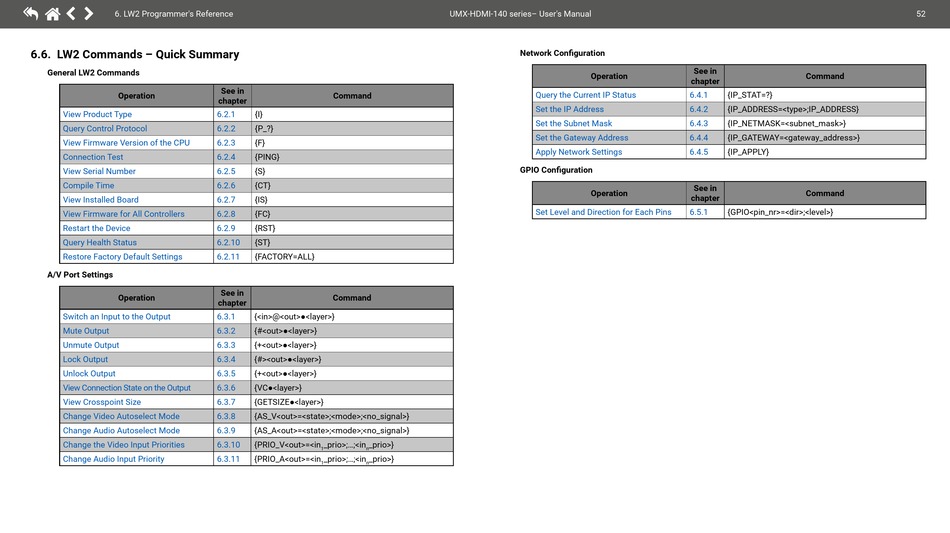

6.6. LW2 Commands – Quick Summary
General LW2 Commands
Operation
View Product Type
Query Control Protocol
View Firmware Version of the CPU
Connection Test
View Serial Number
Compile Time
View Installed Board
View Firmware for All Controllers
Restart the Device
Query Health Status
Restore Factory Default Settings
A/V Port Settings
Operation
Switch an Input to the Output
Mute Output
Unmute Output
Lock Output
Unlock Output
View Connection State on the Output
View Crosspoint Size
Change Video Autoselect Mode
Change Audio Autoselect Mode
Change the Video Input Priorities
Change Audio Input Priority
See in
Command
chapter
6.2.1 {I}
6.2.2 {P_?}
6.2.3 {F}
6.2.4 {PING}
6.2.5 {S}
6.2.6 {CT}
6.2.7 {IS}
6.2.8 {FC}
6.2.9 {RST}
6.2.10 {ST}
6.2.11 {FACTORY=ALL}
See in
Command
chapter
6.3.1 {<in>@<out>●<layer>}
6.3.2 {#<out>●<layer>}
6.3.3 {+<out>●<layer>}
6.3.4 {#><out>●<layer>}
6.3.5 {+<out>●<layer>}
6.3.6 {VC●<layer>}
6.3.7 {GETSIZE●<layer>}
6.3.8 {AS_V<out>=<state>;<mode>;<no_signal>}
6.3.9 {AS_A<out>=<state>;<mode>;<no_signal>}
6.3.10 {PRIO_V<out>=<in _prio>;...;<in _prio>}
1 n
6.3.11 {PRIO_A<out>=<in _prio>;...;<in _prio>}
1 n
UMX-HDMI-140 series– User's Manual
Network Configuration
Operation
Query the Current IP Status
Set the IP Address
Set the Subnet Mask
Set the Gateway Address
Apply Network Settings
GPIO Configuration
Operation
Set Level and Direction for Each Pins
See in
Command
chapter
6.4.1 {IP_STAT=?}
6.4.2 {IP_ADDRESS=<type>;IP_ADDRESS}
6.4.3 {IP_NETMASK=<subnet_mask>}
6.4.4 {IP_GATEWAY=<gateway_address>}
6.4.5 {IP_APPLY}
See in
Command
chapter
6.5.1 {GPIO<pin_nr>=<dir>;<level>}
52
