1. Introduction

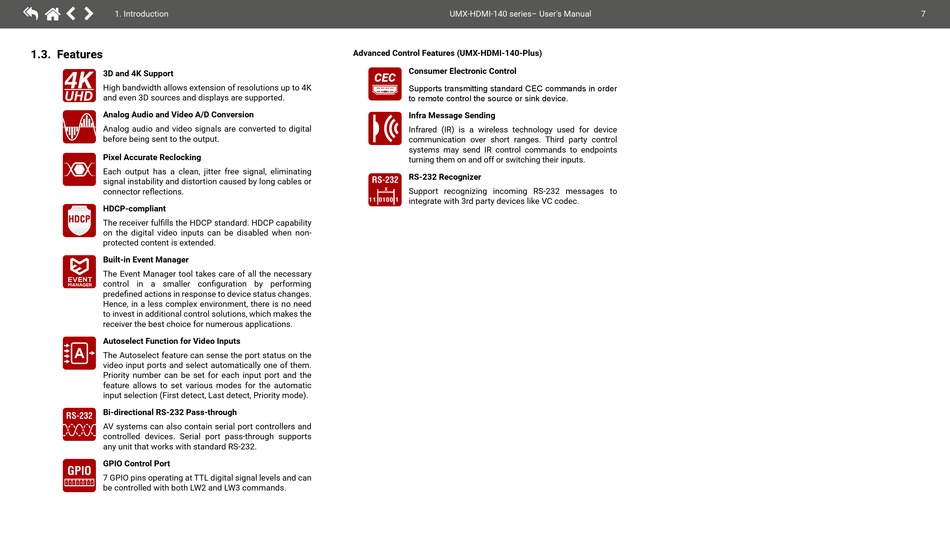

1.3. Features
3D and 4K Support
High bandwidth allows extension of resolutions up to 4K
and even 3D sources and displays are supported.
Analog Audio and Video A/D Conversion
Analog audio and video signals are converted to digital
before being sent to the output.
Pixel Accurate Reclocking
Each output has a clean, jitter free signal, eliminating
signal instability and distortion caused by long cables or
connector reflections.
HDCP-compliant
The receiver fulfills the HDCP standard. HDCP capability
on the digital video inputs can be disabled when non-
protected content is extended.
Built-in Event Manager
The Event Manager tool takes care of all the necessary
control in a smaller configuration by performing
predefined actions in response to device status changes.
Hence, in a less complex environment, there is no need
to invest in additional control solutions, which makes the
receiver the best choice for numerous applications.
Autoselect Function for Video Inputs
The Autoselect feature can sense the port status on the
video input ports and select automatically one of them.
Priority number can be set for each input port and the
feature allows to set various modes for the automatic
input selection (First detect, Last detect, Priority mode).
Bi-directional RS-232 Pass-through
RS-232
AV systems can also contain serial port controllers and
controlled devices. Serial port pass-through supports
any unit that works with standard RS-232.
GPIO Control Port
7 GPIO pins operating at TTL digital signal levels and can
be controlled with both LW2 and LW3 commands.
UMX-HDMI-140 series– User's Manual
Advanced Control Features (UMX-HDMI-140-Plus)
Consumer Electronic Control
CEC
Supports transmitting standard CEC commands in order
to remote control the source or sink device.
Infra Message Sending
Infrared (IR) is a wireless technology used for device
communication over short ranges. Third party control
systems may send IR control commands to endpoints
turning them on and off or switching their inputs.
RS-232 Recognizer
RS-232
x
Support recognizing incoming RS-232 messages to
integrate with 3rd party devices like VC codec.
