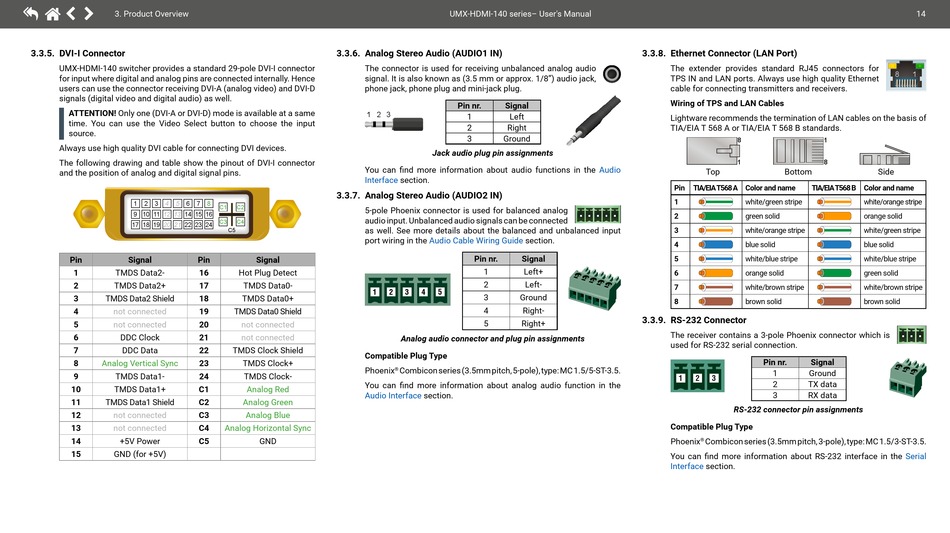

3. Product Overview
3.3.5. DVI-I Connector
UMX-HDMI-140 switcher provides a standard 29-pole DVI-I connector
for input where digital and analog pins are connected internally. Hence
users can use the connector receiving DVI-A (analog video) and DVI-D
signals (digital video and digital audio) as well.
ATTENTION! Only one (DVI-A or DVI-D) mode is available at a same
time. You can use the Video Select button to choose the input
source.
Always use high quality DVI cable for connecting DVI devices.
The following drawing and table show the pinout of DVI-I connector
and the position of analog and digital signal pins.
1 2 3 4 5 6 7
9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
Pin Signal Pin
1 TMDS Data2- 16
2 TMDS Data2+ 17
3 TMDS Data2 Shield 18
4 not connected 19
5 not connected 20
6 DDC Clock 21
7 DDC Data 22
8 Analog Vertical Sync 23
9 TMDS Data1- 24
10 TMDS Data1+ C1
11 TMDS Data1 Shield C2
12 not connected C3
13 not connected C4
14 +5V Power C5
15 GND (for +5V)
3.3.6. Analog Stereo Audio (AUDIO1 IN)
The connector is used for receiving unbalanced analog audio
signal. It is also known as (3.5 mm or approx. 1/8") audio jack,
phone jack, phone plug and mini-jack plug.
1 2 3
You can find more information about audio functions in the
Interface
3.3.7. Analog Stereo Audio (AUDIO2 IN)
8
C1 C2
5-pole Phoenix connector is used for balanced analog
audio input. Unbalanced audio signals can be connected
C3 C4
as well. See more details about the balanced and unbalanced input
C5
port wiring in the
Signal
Hot Plug Detect
TMDS Data0-
1
TMDS Data0+
TMDS Data0 Shield
not connected
not connected
TMDS Clock Shield
Compatible Plug Type
TMDS Clock+
Phoenix
TMDS Clock-
You can find more information about analog audio function in the
Analog Red
Audio Interface
Analog Green
Analog Blue
Analog Horizontal Sync
GND
UMX-HDMI-140 series– User's Manual
Pin nr. Signal
1 Left
2 Right
3 Ground
Jack audio plug pin assignments
section.
Audio Cable Wiring Guide section.
Pin nr. Signal
1 Left+
2 Left-
2 3 4 5
3 Ground
4 Right-
5 Right+
Analog audio connector and plug pin assignments
Combicon series (3.5mm pitch, 5-pole), type: MC 1.5/5-ST-3.5.
®
section.
3.3.8. Ethernet Connector (LAN Port)
The extender provides standard RJ45 connectors for
TPS IN and LAN ports. Always use high quality Ethernet
cable for connecting transmitters and receivers.
Wiring of TPS and LAN Cables
Lightware recommends the termination of LAN cables on the basis of
TIA/EIA T 568 A or TIA/EIA T 568 B standards.
8
1
Audio
Top
Pin TIA/EIA T568 A Color and name
1 white/green stripe
2 green solid
3 white/orange stripe
4 blue solid
5 white/blue stripe
6 orange solid
7 white/brown stripe
8 brown solid
3.3.9. RS-232 Connector
The receiver contains a 3-pole Phoenix connector which is
used for RS-232 serial connection.
Pin nr.
1
1 2 3
2
3
RS-232 connector pin assignments
Compatible Plug Type
Phoenix Combicon series (3.5mm pitch, 3-pole), type: MC 1.5/3-ST-3.5.
®
You can find more information about RS-232 interface in the
Interface section.
14
8 1
1
8
Side
Bottom
TIA/EIA T568 B Color and name
white/orange stripe
orange solid
white/green stripe
blue solid
white/blue stripe
green solid
white/brown stripe
brown solid
Signal
Ground
TX data
RX data
Serial
