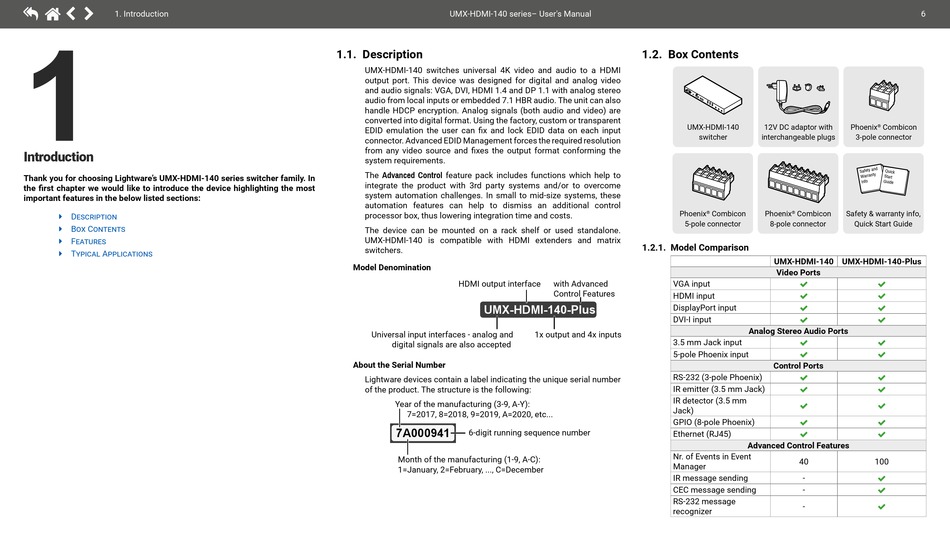

1. Introduction

1
I ntroduction
Thank you for choosing Lightware's UMX-HDMI-140 series switcher family. In
the first chapter we would like to introduce the device highlighting the most
important features in the below listed sections:

Description

Î

Box Contents

Î
Features
Î
Typical Applications
Î
UMX-HDMI-140 series– User's Manual
1.1. Description
UMX-HDMI-140 switches universal 4K video and audio to a HDMI
output port. This device was designed for digital and analog video
and audio signals: VGA, DVI, HDMI 1.4 and DP 1.1 with analog stereo
audio from local inputs or embedded 7.1 HBR audio. The unit can also
handle HDCP encryption. Analog signals (both audio and video) are
converted into digital format. Using the factory, custom or transparent
EDID emulation the user can fix and lock EDID data on each input
connector. Advanced EDID Management forces the required resolution
from any video source and fixes the output format conforming the
system requirements.
The Advanced Control feature pack includes functions which help to
integrate the product with 3rd party systems and/or to overcome
system automation challenges. In small to mid-size systems, these
automation features can help to dismiss an additional control
processor box, thus lowering integration time and costs.
The device can be mounted on a rack shelf or used standalone.
UMX-HDMI-140 is compatible with HDMI extenders and matrix
switchers.
Model Denomination
HDMI output interface
UMX-HDMI-140-Plus
Universal input interfaces - analog and
digital signals are also accepted
About the Serial Number
Lightware devices contain a label indicating the unique serial number
of the product. The structure is the following:
Year of the manufacturing (3-9, A-Y):
7=2017, 8=2018, 9=2019, A=2020, etc...
7A000941
6-digit running sequence number
Month of the manufacturing (1-9, A-C):
1=January, 2=February, ..., C=December
1.2. Box Contents
UMX-HDMI-140
switcher
Phoenix Combicon
®
5-pole connector
1.2.1. Model Comparison
with Advanced
VGA input
Control Features
HDMI input
DisplayPort input
DVI-I input
1x output and 4x inputs
3.5 mm Jack input
5-pole Phoenix input
RS-232 (3-pole Phoenix)
IR emitter (3.5 mm Jack)
IR detector (3.5 mm
Jack)
GPIO (8-pole Phoenix)
Ethernet (RJ45)
Nr. of Events in Event
Manager
IR message sending
CEC message sending
RS-232 message
recognizer
6
12V DC adaptor with Phoenix Combicon
®
interchangeable plugs 3-pole connector
Phoenix Combicon Safety & warranty info,
®
8-pole connector Quick Start Guide
UMX-HDMI-140 UMX-HDMI-140-Plus
Video Ports
 
 
 
 
Analog Stereo Audio Ports
 
 
Control Ports
 
 
 
 
 
Advanced Control Features
40 100
-

-

-

