11. Appendix

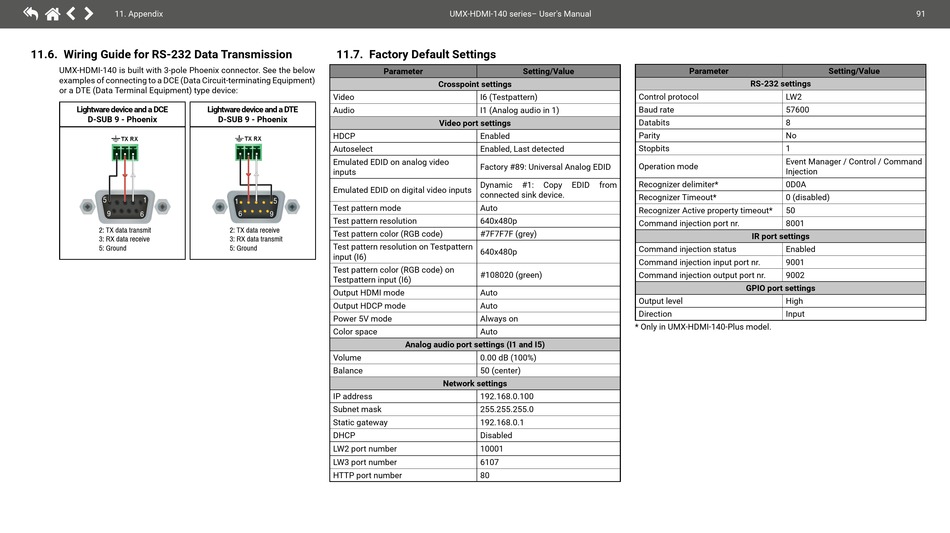

11.6. Wiring Guide for RS-232 Data Transmission
UMX-HDMI-140 is built with 3-pole Phoenix connector. See the below
examples of connecting to a DCE (Data Circuit-terminating Equipment)
or a DTE (Data Terminal Equipment) type device:
Lightware device and a DCE
D-SUB 9 - Phoenix
TX RX
5
1
9
6
2: TX data transmit
3: RX data receive
5: Ground
11.7. Factory Default Settings
Parameter
Video
Lightware device and a DTE
Audio
D-SUB 9 - Phoenix
HDCP
TX RX
Autoselect
Emulated EDID on analog video
inputs
Emulated EDID on digital video inputs
1
5
Test pattern mode
6
9
Test pattern resolution
2: TX data receive
Test pattern color (RGB code)
3: RX data transmit
Test pattern resolution on Testpattern
5: Ground
input (I6)
Test pattern color (RGB code) on
Testpattern input (I6)
Output HDMI mode
Output HDCP mode
Power 5V mode
Color space
Volume
Balance
IP address
Subnet mask
Static gateway
DHCP
LW2 port number
LW3 port number
HTTP port number
UMX-HDMI-140 series– User's Manual
Setting/Value
Crosspoint settings
I6 (Testpattern)
I1 (Analog audio in 1)
Video port settings
Enabled
Enabled, Last detected
Factory #89: Universal Analog EDID
Dynamic
#1:
Copy
EDID
connected sink device.
Auto
640x480p
#7F7F7F (grey)
640x480p
#108020 (green)
Auto
Auto
Always on
Auto
Analog audio port settings (I1 and I5)
0.00 dB (100%)
50 (center)
Network settings
192.168.0.100
255.255.255.0
192.168.0.1
Disabled
10001
6107
80
Parameter
RS-232 settings
Control protocol
Baud rate
Databits
Parity
Stopbits
Operation mode
Recognizer delimiter*
from
Recognizer Timeout*
Recognizer Active property timeout*
Command injection port nr.
IR port settings
Command injection status
Command injection input port nr.
Command injection output port nr.
GPIO port settings
Output level
Direction
* Only in UMX-HDMI-140-Plus model.
91
Setting/Value
LW2
57600
8
No
1
Event Manager / Control / Command
Injection
0D0A
0 (disabled)
50
8001
Enabled
9001
9002
High
Input
