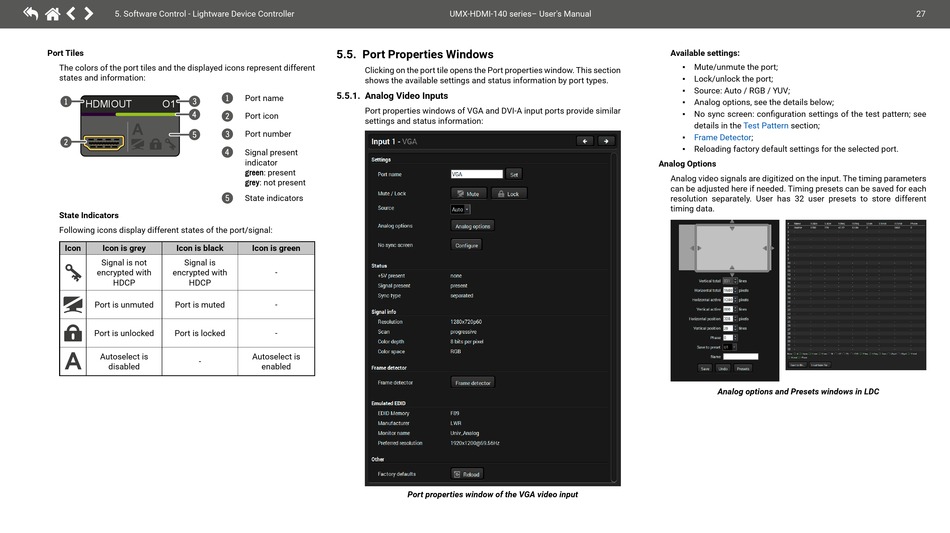

Port Properties Windows; Analog Video Inputs - Lightware UMX-HDMI-140 User Manual


  
5. Software Control - Lightware Device Controller
Port Tiles
The colors of the port tiles and the displayed icons represent different
states and information:
3
1
HDMIOUT O1
4
A
5
2
State Indicators
Following icons display different states of the port/signal:
Icon Icon is grey Icon is black
A
Signal is not Signal is
encrypted with encrypted with
HDCP HDCP
A
Port is unmuted Port is muted
A
Port is unlocked Port is locked
A
Autoselect is
-
disabled
5.5. Port Properties Windows
Clicking on the port tile opens the Port properties window. This section
shows the available settings and status information by port types.
5.5.1. Analog Video Inputs
1 Port name
Port properties windows of VGA and DVI-A input ports provide similar
2 Port icon
settings and status information:
3 Port number
4 Signal present
indicator
green: present
grey: not present
5 State indicators
Icon is green
-
-
-
Autoselect is
enabled
UMX-HDMI-140 series– User's Manual
Port properties window of the VGA video input
Available settings:
▪ Mute/unmute the port;
Lock/unlock the port;
▪
Source: Auto / RGB / YUV;
▪
▪ Analog options, see the details below;
▪ No sync screen: configuration settings of the test pattern; see
details in the Test Pattern section;
▪ Frame Detector;
▪ Reloading factory default settings for the selected port.
Analog Options
Analog video signals are digitized on the input. The timing parameters
can be adjusted here if needed. Timing presets can be saved for each
resolution separately. User has 32 user presets to store different
timing data.
Analog options and Presets windows in LDC
