11. Appendix

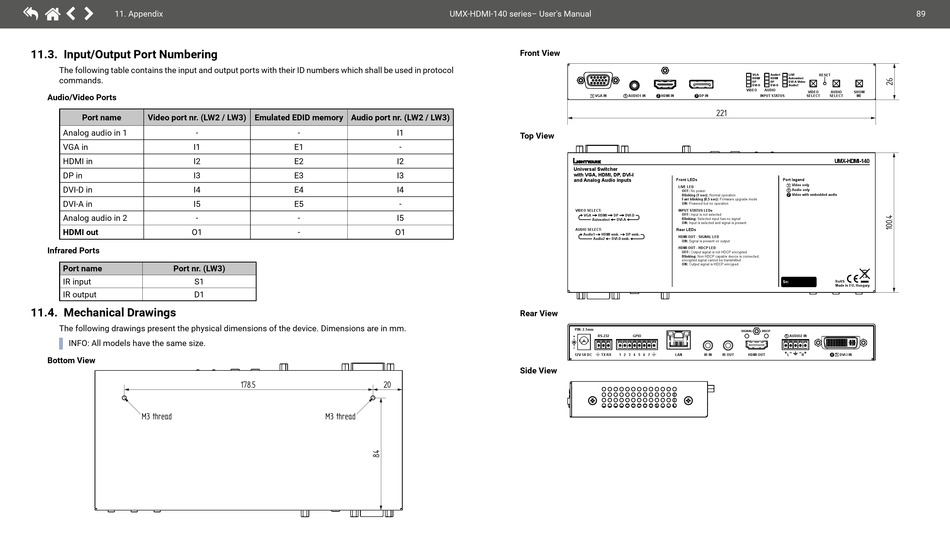

11.3. Input/Output Port Numbering
The following table contains the input and output ports with their ID numbers which shall be used in protocol
commands.
Audio/Video Ports
Port name Video port nr. (LW2 / LW3) Emulated EDID memory Audio port nr. (LW2 / LW3)
Analog audio in 1 -
VGA in I1
HDMI in I2
DP in I3
DVI-D in I4
DVI-A in I5
Analog audio in 2 -
HDMI out O1
Infrared Ports
Port name Port nr. (LW3)
IR input S1
IR output D1
11.4. Mechanical Drawings
The following drawings present the physical dimensions of the device. Dimensions are in mm.
INFO: All models have the same size.
Bottom View
M3 thread
- I1
E1 -
E2 I2
E3 I3
E4 I4
E5 -
- I5
- O1
178.5 20
M3 thread
UMX-HDMI-140 series– User's Manual
Front View
VGA IN AUDIO1 IN
Top View
Universal Switcher
with VGA, HDMI, DP, DVI-I
and Analog Audio inputs
VIDEO SELECT:
VGA HDMI DP DVI-D
Autoselect DVI-A
AUDIO SELECT:
Audio1 HDMI emb. DP emb.
Audio2 DVI-D emb.
Rear View
PIN: 2.1mm
RS-232
12V 1A DC TX RX 1 2 3 4 5 6 7
Side View
VGA Audio1 LIVE
HDMI HDMI Autoselect
DP DP DVI-A Video
DVI-D DVI-D Audio2
VIDEO AUDIO
VIDEO
2 HDMI IN 3 DP IN INPUT STATUS SELECT
221
Front LEDs Port legend
Video only
LIVE LED
Audio only
OFF: No power
Blinking (1 sec): Normal operation 2 Video with embedded audio
Fast blinking (0.5 sec): Firmware upgrade mode
ON: Powered but no operation
INPUT STATUS LEDs
OFF: Input is not selected
Blinking: Selected input has no signal
ON: Input is selected and signal is present
Rear LEDs
HDMI OUT - SIGNAL LED
ON: Signal is present on output
HDMI OUT - HDCP LED
OFF: Output signal is not HDCP encrypted
Blinking: Non HDCP capable device is connected,
encrypted signal cannot be transmitted
ON: Output signal is HDCP enrcyped
Sn:
SIGNAL HDCP
GPIO 5 AUDIO2 IN
LAN IR IN IR OUT HDMI OUT L R
89
RESET
AUDIO SHOW
SELECT ME
UMX-HDMI-140
RoHS
Made in EU, Hungary
4 5 DVI-I IN
