2. Installation

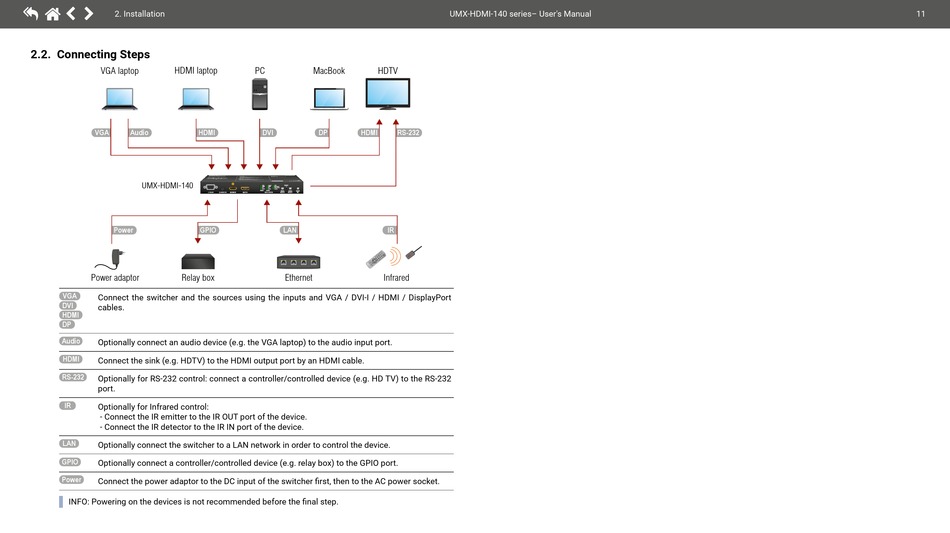

2.2. Connecting Steps
VGA laptop HDMI laptop
VGA Audio HDMI
UMX-HDMI-140
Power GPIO
Power adaptor Relay box
VGA
Connect the switcher and the sources using the inputs and VGA / DVI-I / HDMI / DisplayPort
DVI
cables.
HDMI
DP
Audio
Optionally connect an audio device (e.g. the VGA laptop) to the audio input port.
HDMI
Connect the sink (e.g. HDTV) to the HDMI output port by an HDMI cable.
RS-232
Optionally for RS-232 control: connect a controller/controlled device (e.g. HD TV) to the RS-232
port.
IR
Optionally for Infrared control:
- Connect the IR emitter to the IR OUT port of the device.
- Connect the IR detector to the IR IN port of the device.
LAN
Optionally connect the switcher to a LAN network in order to control the device.
GPIO
Optionally connect a controller/controlled device (e.g. relay box) to the GPIO port.
Power
Connect the power adaptor to the DC input of the switcher first, then to the AC power socket.
INFO: Powering on the devices is not recommended before the final step.
PC MacBook HDTV
DVI DP HDMI
VGA Audio1 LIVE RESET
HDMI HDMI Autoselect
DP DP DVI-A Video
DVI-D DVI-D Audio2
VIDEO AUDIO
VIDEO AUDIO SHOW
VGA IN AUDIO1 IN HDMI IN DP IN INPUT STATUS SELECT SELECT ME
LAN IR
Ethernet Infrared
UMX-HDMI-140 series– User's Manual
RS-232
