5. Software Control - Lightware Device Controller
5.3. Establishing the Connection
Step 1. Connect the device to a computer via Ethernet or RS-232.
Step 2. Run the controller software; device discovery window appears automatically.

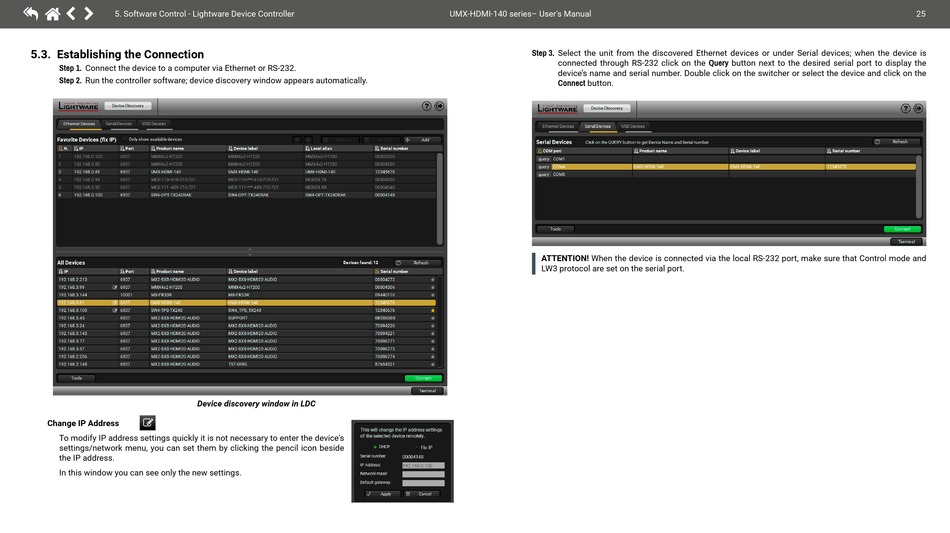

Device discovery window in LDC
Change IP Address
To modify IP address settings quickly it is not necessary to enter the device's
settings/network menu, you can set them by clicking the pencil icon beside
the IP address.
In this window you can see only the new settings.
UMX-HDMI-140 series– User's Manual
Step 3. Select the unit from the discovered Ethernet devices or under Serial devices; when the device is
connected through RS-232 click on the Query button next to the desired serial port to display the
device's name and serial number. Double click on the switcher or select the device and click on the
Connect button.
ATTENTION! When the device is connected via the local RS-232 port, make sure that Control mode and
LW3 protocol are set on the serial port.
